Phanteks D30-120 Reverse Airflow DRGB PWM 120mm Fan, White

Phanteks D30-120 Reverse Airflow DRGB PWM 120mm Fan, White

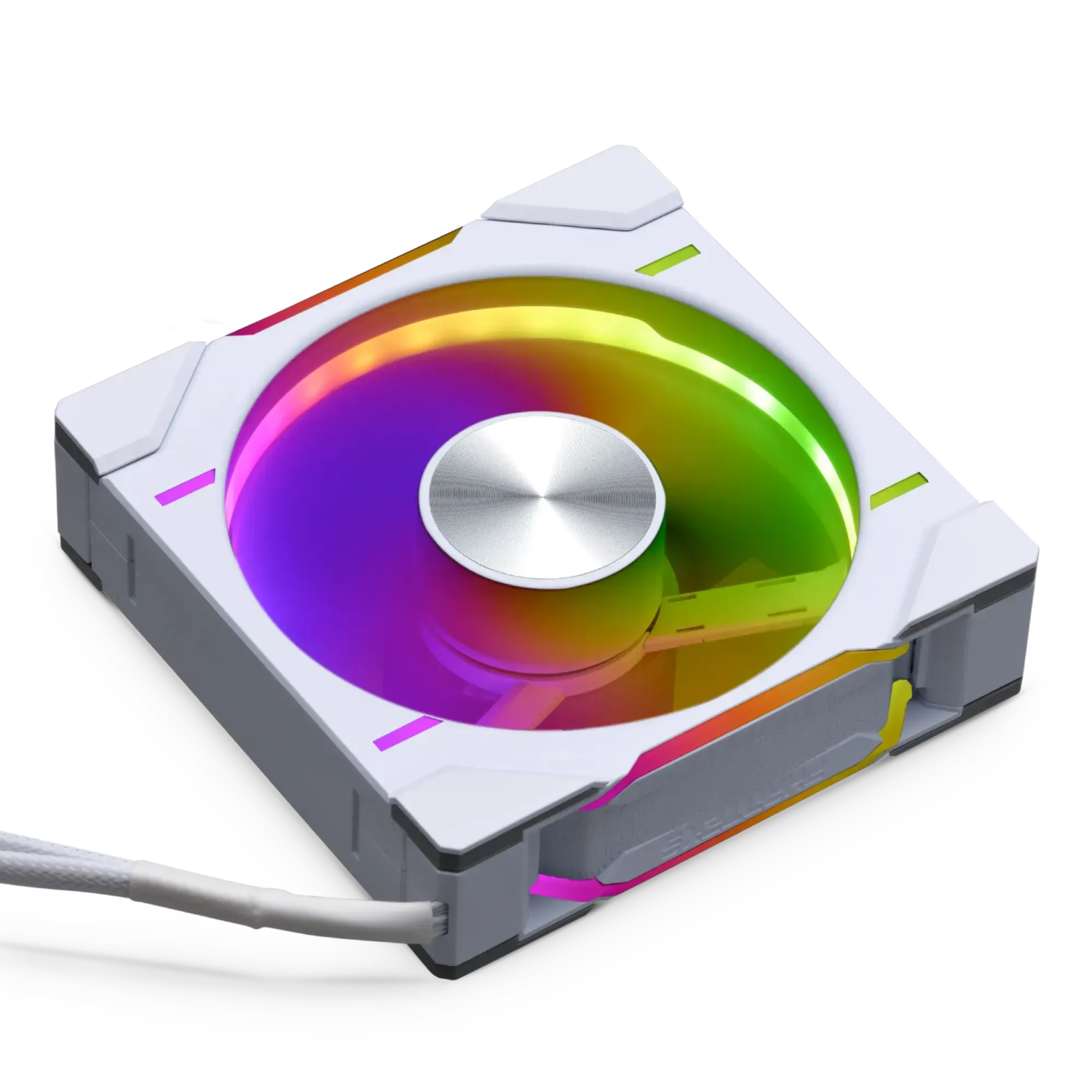

The white reverse-blade Phanteks D30, made for intake positions where the fan’s clean face should be the side on show.

A conventional fan draws air through its bladed face and exhausts past the hub and frame struts, so when it is used as a bottom or side intake behind glass, the cabled rear is what faces the viewer. The D30-120 Reverse swaps the blade geometry so air is pulled from the hub side and pushed out through the blades, letting the presentable face point outward while the fan still brings air into the case. It keeps the 30mm frame, seven blades and 250 to 2000 RPM PWM range of the regular D30, rated at 61.5 CFM and 2.72 mmH2O on the reversed profile. The white frame matches the rest of Phanteks’ white D30 range.

Daisy-chain connections

Both the 4-pin PWM and 3-pin JST D-RGB connectors pass through to the next fan, so up to four D30 fans can share one fan header and one 5V ARGB header. A D-RGB mainboard adapter, corner and bridge clips and screw covers are supplied, and lighting is driven by the motherboard’s software, with Aura Sync, RGB Fusion 2.0, Mystic Light, Polychrome Sync and Razer Chroma supported.

Lighting and reliability

Thirty addressable LEDs light the frame and blades from every side. The fluid dynamic bearing is rated at 50,000 hours MTBF and the fan carries a three-year warranty. Radiator screws in UNC 6-32 and M4 are included. Punch can fit this fan in a new build and orient it correctly.

Ideal for

• White builds with bottom or side intakes behind glass
• Matching white regular D30 fans elsewhere in the case
• Motherboard-driven ARGB without a hub

Specifications

• Model: PH-F120D30R_DRGB_PWM_WT01
• Dimensions: 120 x 120 x 30mm
• Airflow direction: Reversed
• Speed: 250 to 2000 RPM (plus or minus 10%)
• Max airflow: 61.5 CFM
• Max static pressure: 2.72 mmH2O
• Noise: 31.8 dBA max
• Bearing: FDB, 50,000 hours MTBF
• Rated voltage: 5 to 13.2V DC; max current 0.15A; max power 1.8W
• Fan connector: 4-pin PWM daisy-chain, 700mm cable
• D-RGB connector: 3-pin JST daisy-chain, 600 + 100mm cable
• LEDs: 30, 0.45A max
• Weight: 300g
• Package: fan, D-RGB mainboard adapter, 4 fan screws, 4 UNC 6-32 and 4 M4 radiator screws, corner and bridge clips, screw covers
• Warranty: 3 years
