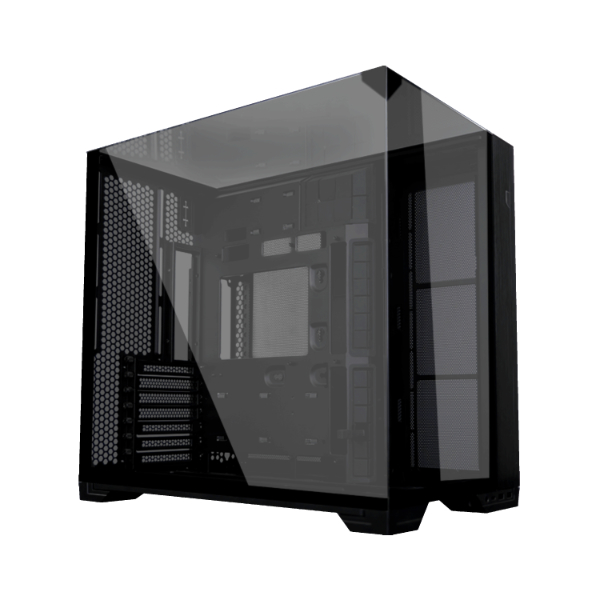

Lian Li O11 Vision Compact Tower Case, Black

Lian Li O11 Vision Compact Tower Case, Black

A smaller take on the O11 Vision with three-sided glass, a swappable top panel and support for back-connect motherboards.

The O11 Vision Compact shrinks Lian Li’s pillarless glass showcase into a 57.4-litre dual-chamber tower. Front, side and top glass give an uninterrupted view of the build, and the top can be switched between a glass panel (vision mode) and a mesh panel (mesh mode) for extra exhaust. It supports Back-Connect ATX boards as well as conventional E-ATX (under 280mm), ATX, Micro-ATX and Mini-ITX, and ships without fans so you can pick your own. The black version uses tinted glass for a darker look.

Cooling

Radiators up to 360mm mount on the top (also 280mm), the side and the bottom, with two 120mm positions at the rear. Up to eleven fans fit in mesh mode or eight in vision mode. Graphics cards up to 408mm and CPU coolers up to 167mm are supported, and a bottom dust filter keeps the intake clean.

Layout

Two 2.5in SSDs mount behind the motherboard tray and a cage takes two 3.5in or 2.5in drives. There are 6+1 expansion slots, ATX power supplies up to 220mm fit in the rear chamber, and the front I/O provides two USB 3.0 ports, USB 3.1 Type-C and audio. Punch can fit the O11 Vision Compact in a new build with a fan and radiator set to suit.

Ideal for

• Compact glass showcase builds
• Back-connect motherboards
• 360mm liquid cooling in a smaller footprint

Specifications

• Model: O11VPX
• Form factor: Tower, dual chamber
• Motherboard support: Back-Connect ATX, E-ATX (under 280mm), ATX, Micro-ATX, Mini-ITX
• Dimensions: 447.5mm D x 287.5mm W x 446.4mm H
• Volume: 57.4L
• Materials: steel, aluminium, 4.0mm and 3.0mm tempered glass
• Max GPU length: 408mm
• Max CPU cooler height: 167mm
• PSU: ATX, under 220mm
• Fan mounts: top 3x 120 / 2x 140mm, side 3x 120mm, bottom 3x 120mm, rear 2x 120mm
• Radiator support: top 240 / 280 / 360mm, side 240 / 360mm, bottom 240 / 360mm
• Max fans: 11 (mesh mode), 8 (vision mode)
• Fans included: none
• Drive bays: 2x 2.5in behind tray, 2x 3.5in / 2.5in in cage
• Expansion slots: 6+1
• Front I/O: power, 2x USB 3.0, 1x USB 3.1 Type-C, audio
• Dust filter: bottom
• Colour: black, tinted glass
