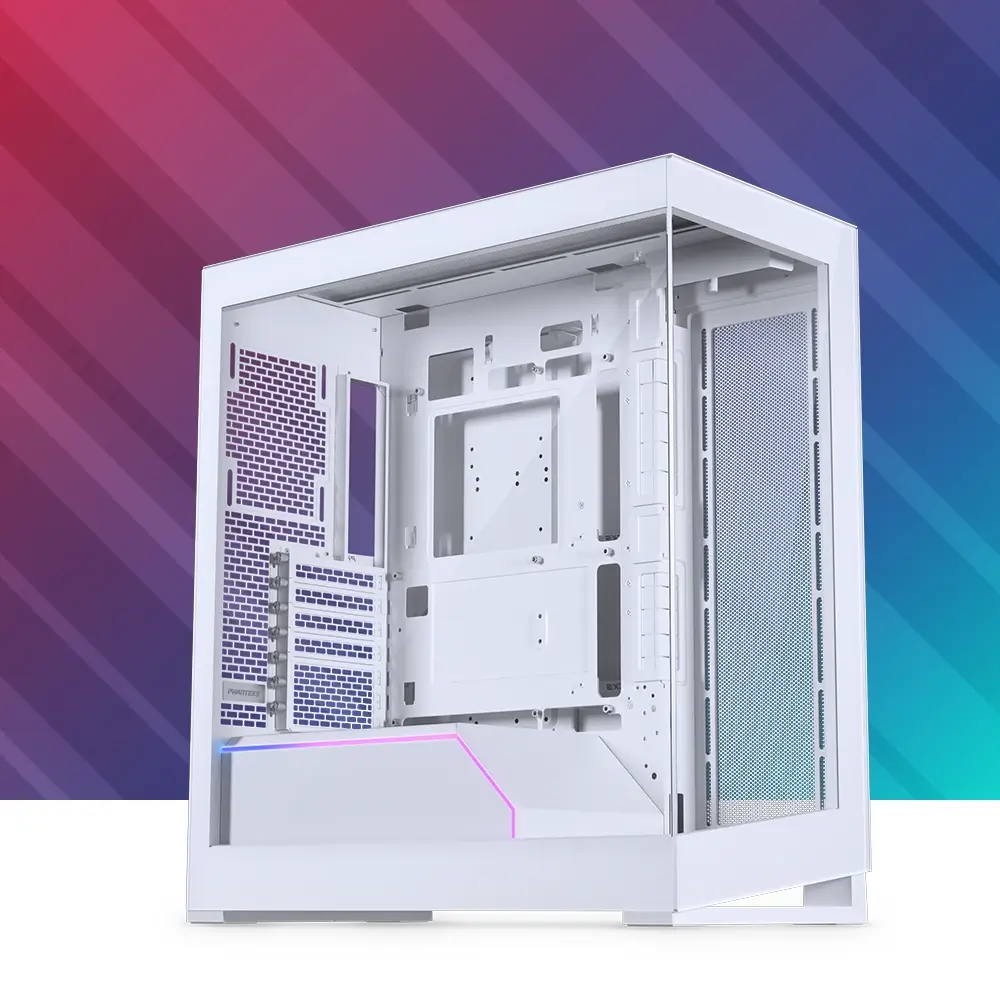

Phanteks NV5 MKII Mid-Tower Full Glass Case, White

Phanteks NV5 MKII Mid-Tower Full Glass Case, White

The matte white NV5 MKII: seamless dual glass, back-connect motherboard support and space for two 360mm radiators.

Phanteks’ second-generation NV5 keeps the pillarless front-and-side glass that made the original popular and adds support for rear-connector motherboards (ASUS BTF and MSI Project Zero), an opening PSU cover for easier cable work and a dedicated bottom fan position to feed the graphics card. The white finish covers the interior as well as the exterior, so it suits a fully white build. No fans are included, letting you choose the cooling to match the components.

Cooling layout

Eight 120mm fan positions are provided: three top, three side, one rear and one bottom. The top and side each accept a 360mm radiator and the rear a 120mm. Clearances are 440mm for graphics card length, 170mm for card height, 180mm for tower coolers and 230mm for the power supply. A GPU support bracket is in the box.

Storage and I/O

Four 2.5in and three 3.5in drive mounts, seven expansion slots and an optional three-slot vertical GPU mount (riser sold separately) cover expansion. The front panel carries USB-C 3.2 Gen 2, two USB 3.0 ports, audio and D-RGB mode and colour buttons. Punch can build a complete white system in the NV5 MKII with fans and lighting to match.

Ideal for

• All-white showcase builds
• Back-connect (BTF / Project Zero) motherboards
• Dual 360mm liquid-cooled systems

Specifications

• Form factor: Mid-tower
• Motherboard support: E-ATX, ATX, Micro-ATX, Mini-ITX (rear-connector boards supported)
• Dimensions: 239mm W x 477mm D x 528mm H
• Net weight: 11.28kg
• Materials: steel chassis, tempered glass
• Max GPU length: 440mm; max GPU height: 170mm
• Max CPU cooler height: 180mm
• Max PSU length: 230mm
• Fan mounts (120mm): top 3, side 3, rear 1, bottom 1
• Radiator support: top 360mm, side 360mm, rear 120mm
• Fans included: none
• Drive bays: 4x 2.5in, 3x 3.5in
• Expansion slots: 7 (3-slot vertical GPU with separate riser)
• Front I/O: 1x USB-C 3.2 Gen 2, 2x USB 3.0, headphone/microphone, D-RGB mode and colour buttons
• Colour: matte white
• Warranty: 5 years limited
