High End Quad RTX 6000 ADA Rendering / AI Workstation

Built with 4 x Quadro RTX 6000 ADA for ultimate GPU performance

4 x NVidia Quadro RTX 6000 ADA GPUs to maximise your rendering and AI potential.  This system offers superb performance in applications requiring both CPU and GPU rendering.  Use our configuration tool to tune your system according to your requirements.  The processor and GPU set up offer some of the highest performance available and the 512GB of memory is superb for handling complex workloads but this workstation can handle up to 2TB of memory if required.



If your rendering application is GPU focussed, configure the CPU down to one of the lower cost models.  We don’t suggest customers make changes to the GPU configuration.  The Currently chosen CPU is the 5975WX which is a 32 core model chosen for high data throughput, you could improve performance by choosing the 64 core 5995WX but given the price difference and the fact that rendering and AI is often more GPU intensive than CPU, we think this is the best value.



The 2TB WD SN850X scratch drive and 1TB WD SN850X application drive offer superb performance.  Use our config tool to select your desired storage capacity.

An ideal workstation for rendering and AI

3D Rendering is particularly intensive on GPU or CPU or sometimes both which is why we have equipped our Performance Plus Rendering Workstation with four of the highest performing GPUs currently on the market and paired them with the 32 core Threadripper Pro 5975WX CPU.  Performance of the 4 x Quadro RTX 6000 ADA 48GB GPU configuration combined with the 32 core AMD Threadripper Pro 5975WX processor is extremely strong and stable. Our PC systems are built using industry-standard components for reliability and upgradability. This high-performance system is made using a quality chassis which includes space for up to 6 hard drives and 4 x 2.5″ SSD drives three high-performance M.2 SSD drives.



The Corsair Obsidian 1000D chassis provides a large professional grade workstation chassis that offers superb cooling solutions.  It’s designed to house the highest performance components and keep them cool by supporting 3 x 360mm liquid cooling radiators.



This system has 8x USB 3.2 Gen 2 ports, 2x USB 3.2 Gen 1 ports, 1 x USB Type-C Gen 2×2 port and 1 x USB Type-C Gen 2 port.



Chassis dimensions are: 307mm (W) x 69.7mm (H) x 69.3mm (D)



Discover more about Threadripper™ Pro Workstations

Specification:

Processor

• AMD Threadripper Pro 5975WX 32 core, 4.0GHz,
• Max Turbo Frequency 5.3Ghz
• 64 Threads
• Cache: 128MB
• Arctic Freezer 4U-M Cooler Installed

Memory

• 512GB DDR4 3200Mhz ECC RDIMM RAM
• Eight Channel – 8 x 64GB
• Supports up to 2TB Memory
• 8 x DIMM sockets (8 Used)

Hard Drive

• 1TB WD SN850X NVMe M.2 SSD
• 2TB WD SN850X NVMe M.2 SSD
• 3 x M.2 sockets, 1 free
• 8 SATA Ports, 8 free

Optical Drive

• None
• No Optical Bays

Software

• Windows 11 Professional 64-bit
• Clean install, no additional software

Chipset

• AMD WRX80 Chipset

Display Outputs

• 16 x DisplayPort 1.4
• Supports up to 16 monitors at once
• Supports HDCP

Graphics

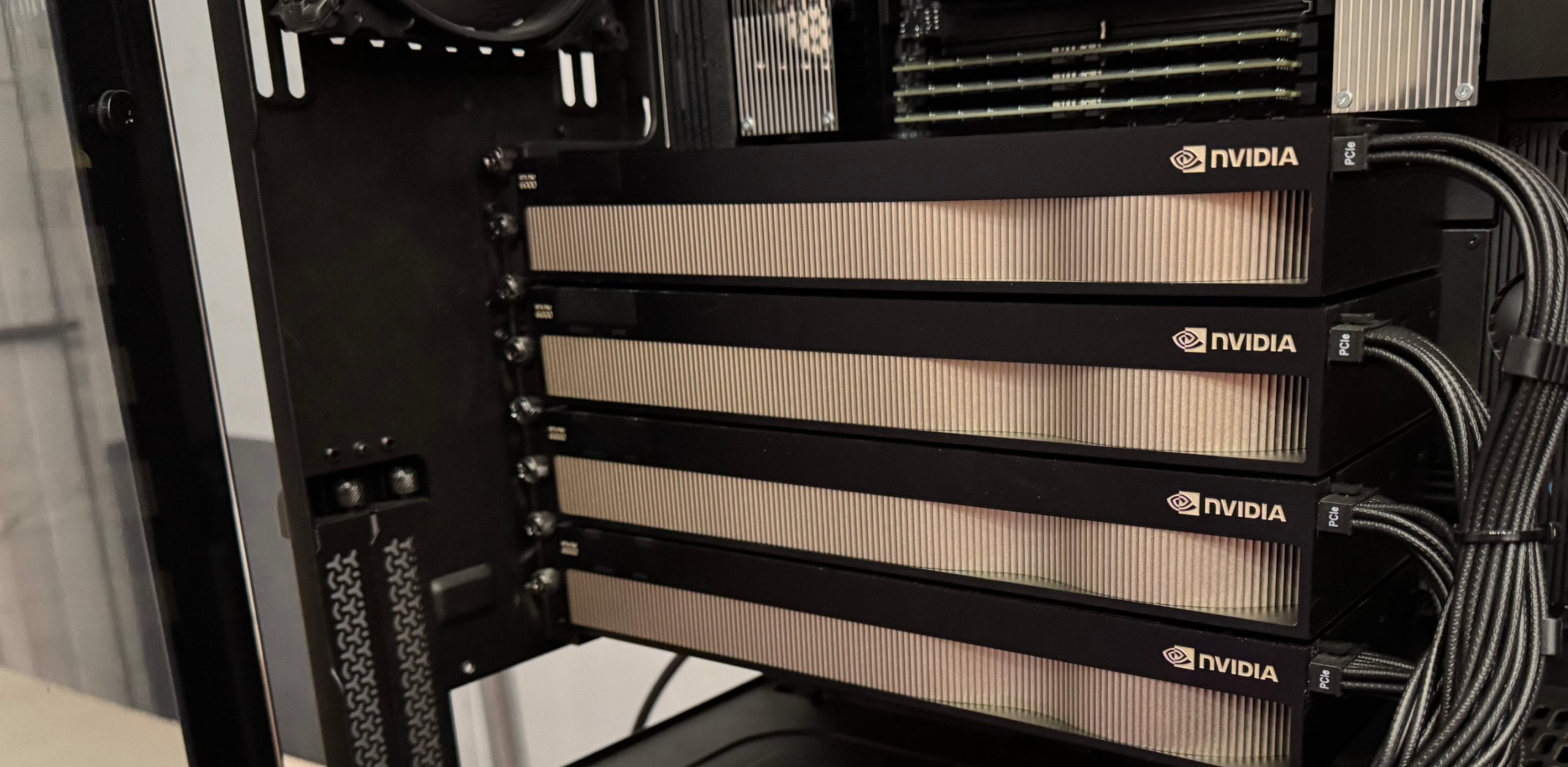

• 4 x NVidia Quadro RTX 6000 ADA 48GB GPUs

Audio

• High Definition Audio, 5.1 or 7.1 channel
• Realtek codec on the motherboard

Input Devices

• No Keyboard or Mouse Included

Wired Networking

• 2 x Intel® X550-AT2 dual 10Gb Ethernet ports

Wireless Networking

• Wifi 6E AX 2400Mbps Wifi with Bluetooth 5.3

Power Supply

• 3300 watts, high efficiency (87%), Modular dual PSU

Dimensions

• Height: 697mm
• Width: 307mm
• Depth: 693mm

Interfaces

• 2 x USB 3.2 Gen 1 Type_A Port (2 front)
• 8 x USB 3.2 Gen 2 Type-A Port (8 rear)
• 2 x USB 3.2 Gen 2 Type-C Port (1 front, 1 rear)
• 1 x USB 3.2 Gen 2×2 Type-C Port (1 rear)
• 2 x RJ-45 Ethernet Port
• 6 x Audio Jacks at the rear including S/PDIF
• 2 x Audio Jacks at the front
• 16 x DisplayPort 1.4, 4 on each GPU

Expansion

• 7 x PCI-e x 16 Slots, 0 free

Case

• Corsair Obsidian 1000D Black Super Tower Case
• Fitted with 10 x Be Quiet Silent Wings 4 Pro fans for the highest airflow
• 8 fans fitted at the front, two fans at the rear

Warranty

• 3 Year Return to Base parts and labour
• 1st 30 days collect and return at our expense
