Threadripper 7000 series Workstation

Our choice of chassis is key to the innovative design of our bespoke PC systems

High end performance for peak productivity.

A high performance PC workstation designed to excel at highly threaded workloads, this system really performs well in professional productivity software.  This system is ideal for multiple tasks including video editing and rendering, 3D modelling, content creation, transcoding, ray tracing, digital audio encoding, running virtual machines and many engineering and scientific applications.

The AMD Ryzen Threadripper processor offers a large number of cores and threads meaning it can handle many processes running concurrently, reducing compute time for CPU intensive workloads.

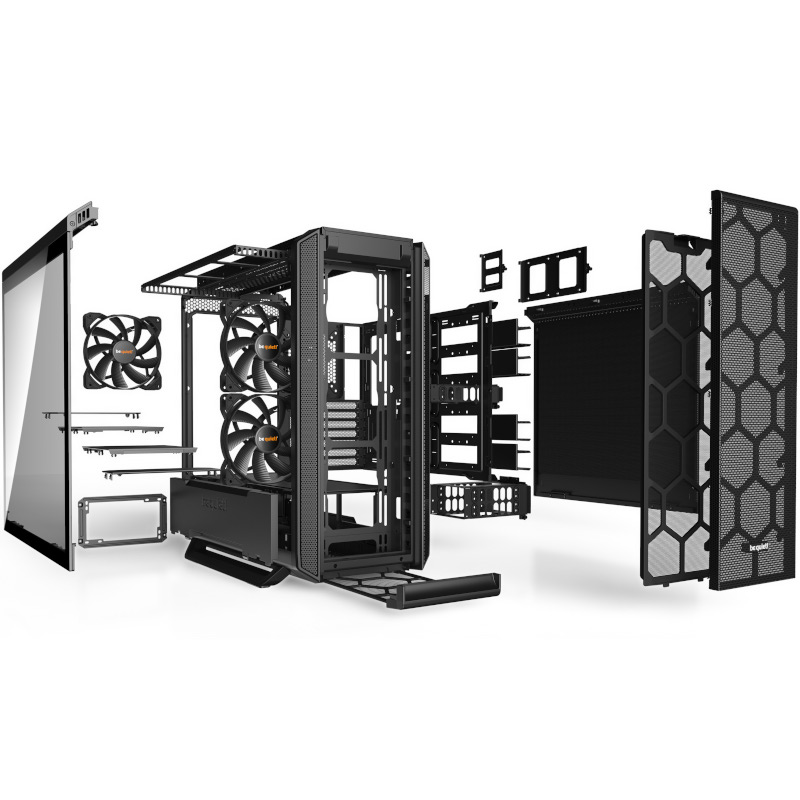

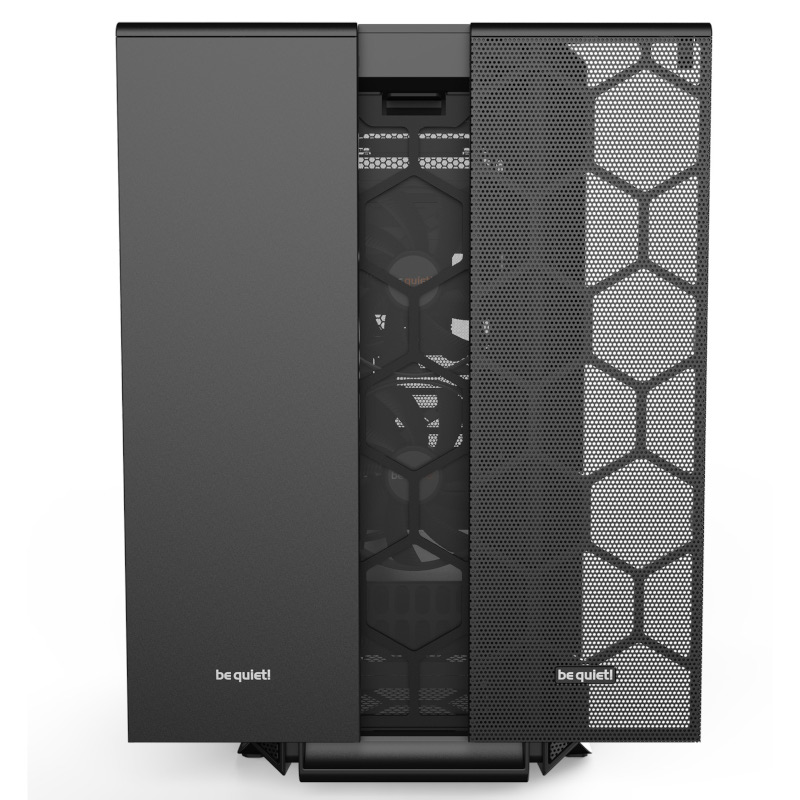

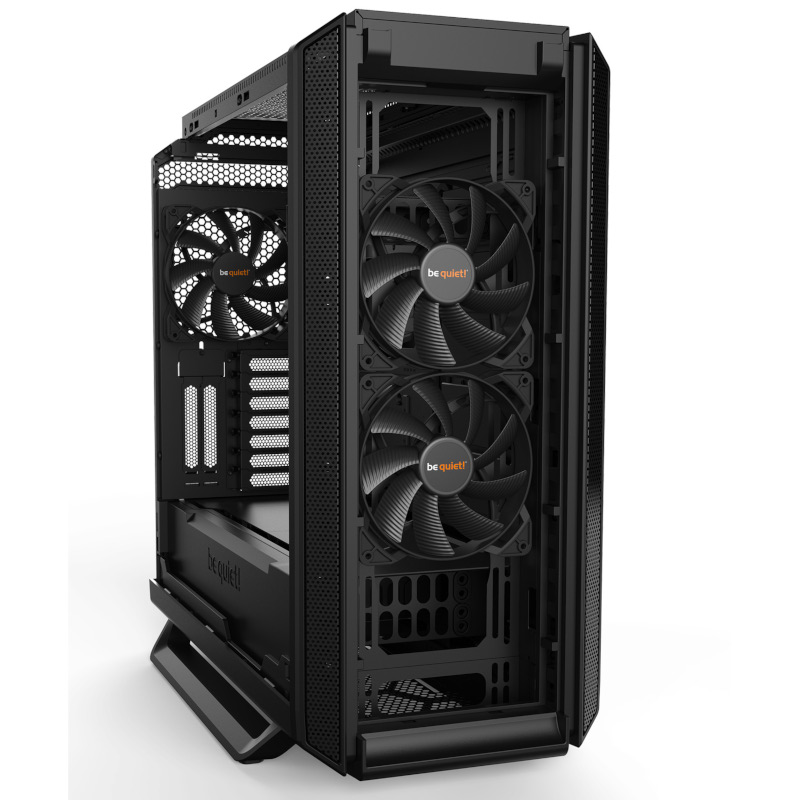

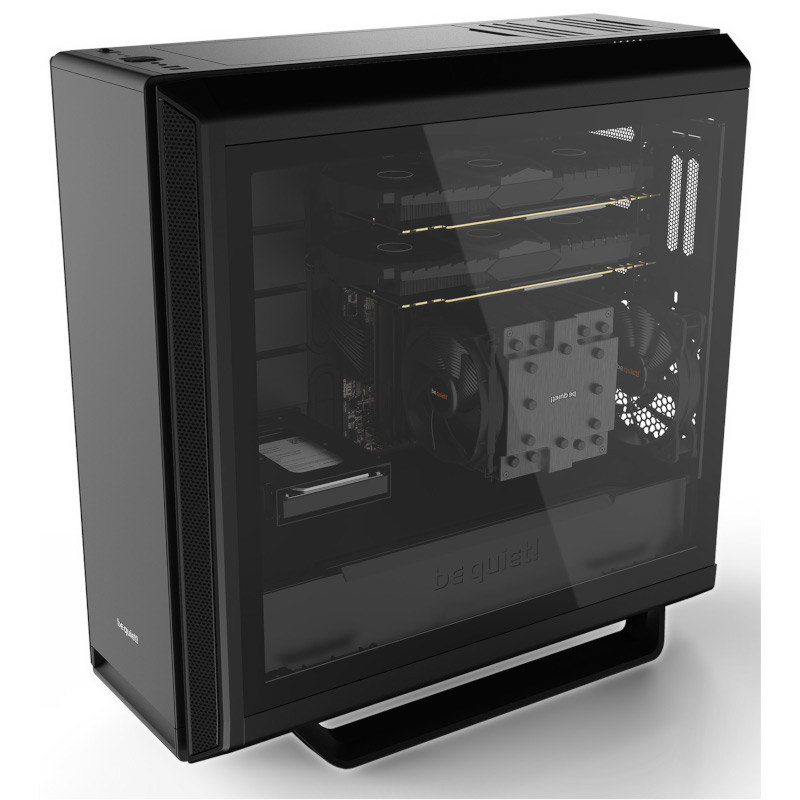

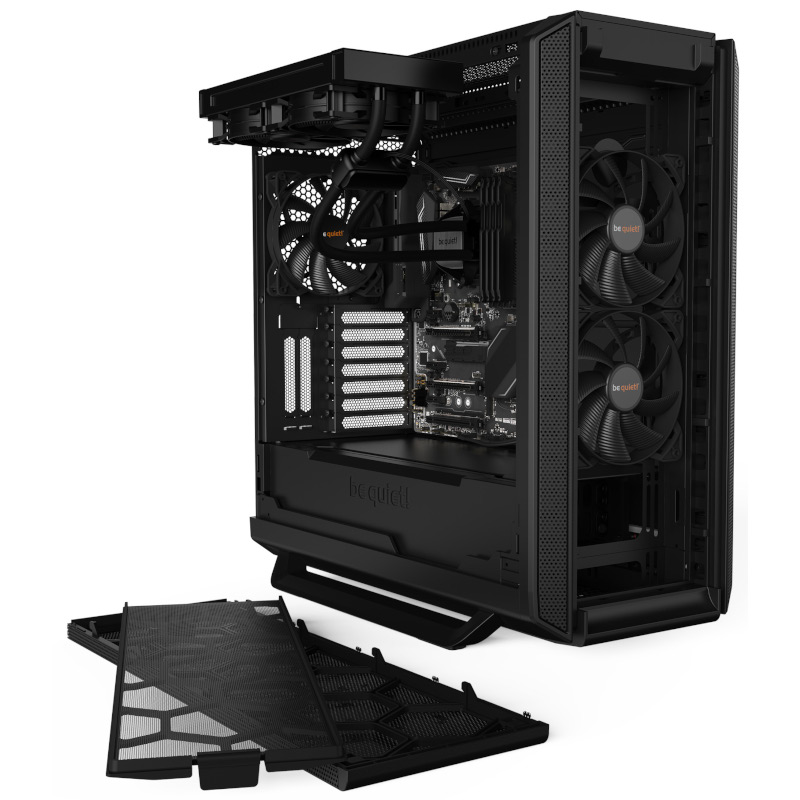

The be quiet! silent base 802 chassis provides a professional grade workstation chassis that offers superb airflow.  It’s a true pro chassis made from the best materials and is designed to house the highest performance components and keep them cool.  We also equip this chassis with an extra 3 x 140mm SilentWings 4 cooling fans which ensure your PC components are adequately cooled.

This system has 6x USB 3.2 Gen 2 ports, 7x USB 3.2 Gen 1 ports, 1 x USB Type-C Gen 2×2 port and 2x USB 2.0 ports.

Chassis dimensions are: 248mm (W) x 600mm (H) x 550mm (D)

Processor

• AMD Threadripper 7980X 64 core, 3.2GHz,
• Max Turbo Frequency 5.1Ghz
• 128 Threads
• Cache: 256MB
• Be Quiet! Silent Loop 3 360mm Liquid CPU Cooler Installed

Memory

• 256GB DDR5 5200Mhz RAM
• Quad Channel – 4 x 64GB

Hard Drive

• 2TB NVMe PCIe 4.0 SSD
• 2 x M.2 sockets, 1 free

Optical Drive

• None
• No Optical Bays

Software

• Windows 11 Professional 64-bit
• Clean install, no additional software

Chipset

• AMD TRX50 Chipset

Display Outputs

• 3 x mini DisplayPort 1.4
• Up to 3 monitors at once
• Supports HDCP

Graphics

• NVidia Quadro A400 4GB GPU

Audio

• High Definition Audio, 7.1 channel
• Realtek codec on the motherboard

Input Devices

• No Keyboard or Mouse Included

Wired Networking

• 2 x Ethernet ports
• 10G LAN
• 2.5G LAN

Wireless Networking

• Wifi 7 AX 2900Mbps Wifi with Bluetooth 5.4
• Triple band

Power Supply

• 1000 watts, high efficiency (87%), Modular

Dimensions

• Height: 553mm
• Width: 281mm
• Depth: 539mm

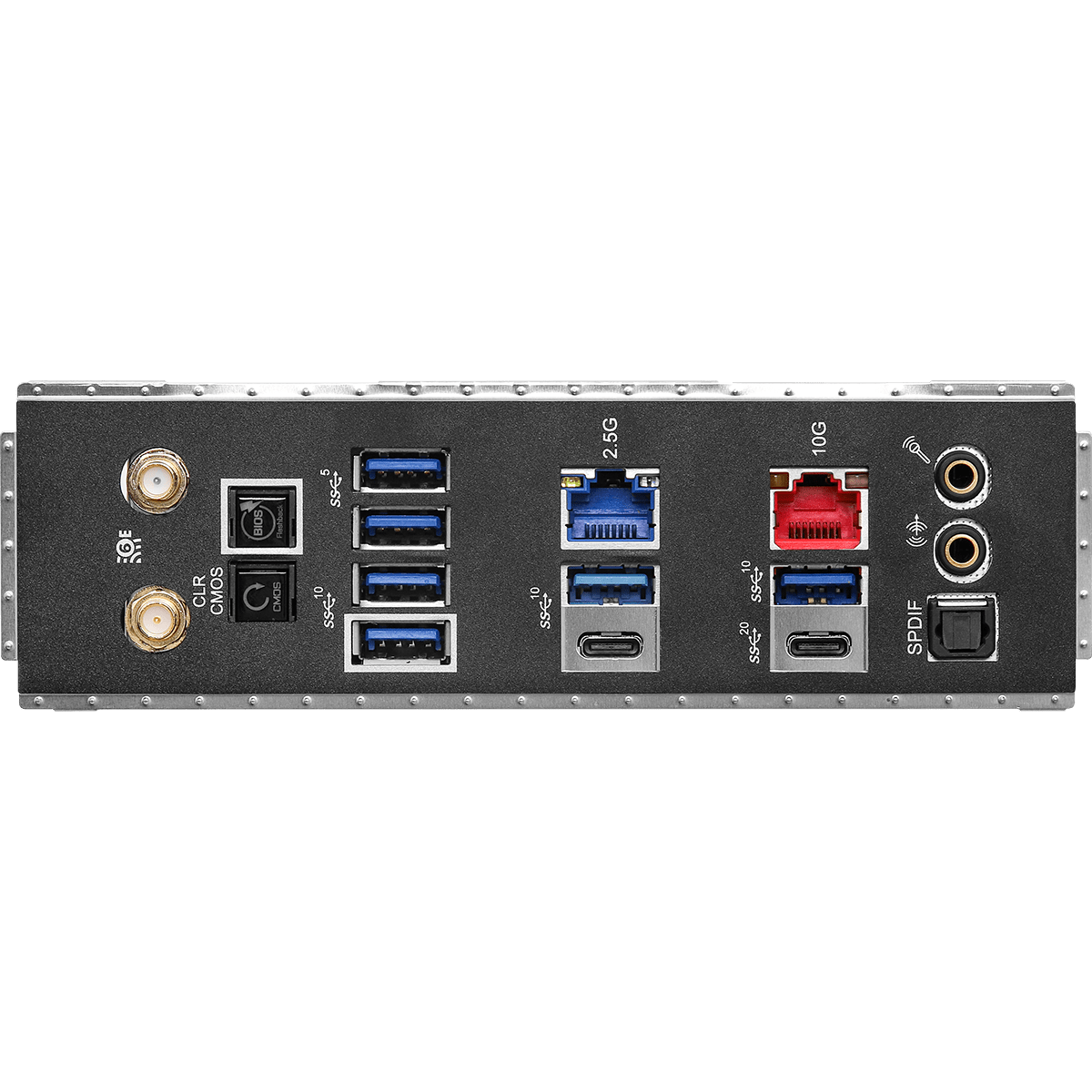

Interfaces

• 2 x USB 2.0 Port (2 rear)
• 5 x USB 3.2 Port (2 front, 3 rear)
• 1 x USB 3.2 Gen 2×2 Type-C Port (1 rear)
• 6 x USB 3.2 Gen 2 Type-A Port (6 rear)
• 1 x USB 3.2 Gen 2 Type-C Port (1 front)
• 2 x RJ-45 Ethernet Port (1 x 10G, 1 x 2.5G)
• 3 x Audio Jacks at the rear including S/PDIF
• 2 x Audio Jacks at the front
• 3 x Mini-DisplayPort 1.4

Expansion

• 5 x PCI-e x 16 Slots, 4 free

Case

• Be Quiet! Silent Base 802 Black ATX Case
• 6 x 140mm Pre-installed fans
• Space for 2 additional 120/140mm fans
• Space to accept 120/140/240/280/360/420mm liquid coolers

Warranty

• 3 Year Return to Base parts and labour
• 1st 30 days collect and return at our expense
