Intel Core i5-12400 Small Form Factor Business PC – Built in the UK
The Punch SlimStation SFF 12th Gen Desktop is an everyday i5-12400 small form factor business PC for office work, education and home working.
Space is often the first problem when you buy a desktop for an office, a classroom or a spare room, and the SlimStation is designed around that. It pairs a six-core, twelve-thread Intel Core i5-12400 processor with 8GB of DDR4 memory, a 500GB NVMe SSD and genuine, pre-installed Windows 11 Home inside the In Win CJ708 8L small form factor chassis. The result is an i5-12400 small form factor business PC that handles documents, spreadsheets, email, browser-based tools and everyday multitasking without taking over the desk. Because it is built to order, you can change the parts in the configurator before you buy.
The Punch SlimStation SFF 12th Gen Desktop is built on an Intel Core i5-12400 processor (6 cores, 12 threads, 2.5GHz base clock, 4.4GHz maximum turbo) with integrated graphics, on an MSI PRO H610M-E Micro-ATX motherboard. It has 8GB of DDR4 3200MHz memory in a single module, a 500GB M.2 NVMe SSD, an In Win 265W 80 Plus Bronze power supply and Microsoft Windows 11 Home 64-bit (genuine, pre-installed). Every system carries a 3-year parts and labour warranty.
Intel Core i5-12400 processor for everyday work
The Intel Core i5-12400 is a 12th generation processor on the LGA1700 socket with six cores and twelve threads. It runs at a 2.5GHz base clock and boosts to 4.4GHz, with 18MB of L3 cache. That gives office suites, web applications and several open windows the headroom they need, and the processor is cooled by Intel’s standard air cooler, so there is no separate cooler to specify.
Memory and NVMe storage
The system is fitted with 8GB of DDR4 3200MHz memory as a single 8GB module. The motherboard has two DIMM slots and supports up to 64GB, so one slot is free for a later upgrade. If you know your users keep many browser tabs and documents open at once, you can choose more memory in the configurator when you order.
Storage is a 500GB M.2 PCIe 4.0 NVMe SSD rated at 5000MB/s read and 3000MB/s write, which holds Windows and your applications. The M.2 slot on this motherboard is PCIe 3.0 x4, so in this build the drive runs at PCIe 3.0 speeds, below its rated figures. It is still NVMe storage for quick start-up and file access. The board also has four SATA 6Gb/s ports, none of them used, and no optical drive is fitted.
Integrated graphics for office and two-monitor work
There is no separate graphics card. Display output comes from the Intel graphics built into the processor, through one HDMI 1.4 port and one VGA port on the motherboard, which supports two monitors. That suits office applications, teaching and presentation work and everyday desktop use. It is not intended for 3D modelling, rendering or video editing.
In Win CJ708 8L case and cooling

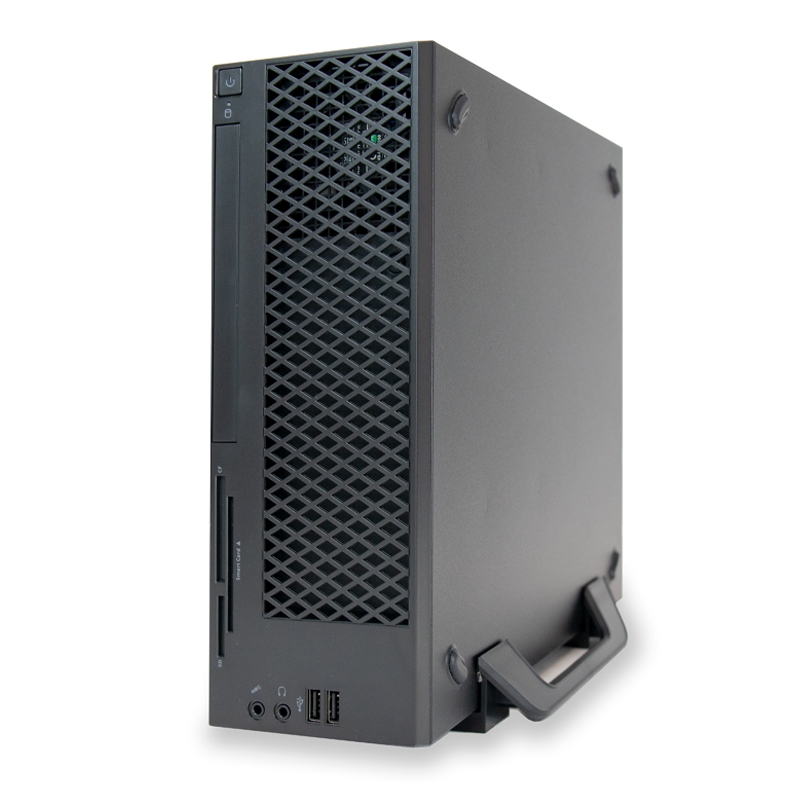

The chassis is the black In Win CJ708 8L, a solid steel small form factor case measuring 305mm deep, 95mm wide and 290mm high. It is compact enough for a desk, a shelf or a tight office corner. The In Win 265W 80 Plus Bronze Flex ATX power supply is non-modular. The system is air-cooled by the Intel standard CPU cooler, with no liquid cooling and no extra case fans fitted.
Connectivity and ports

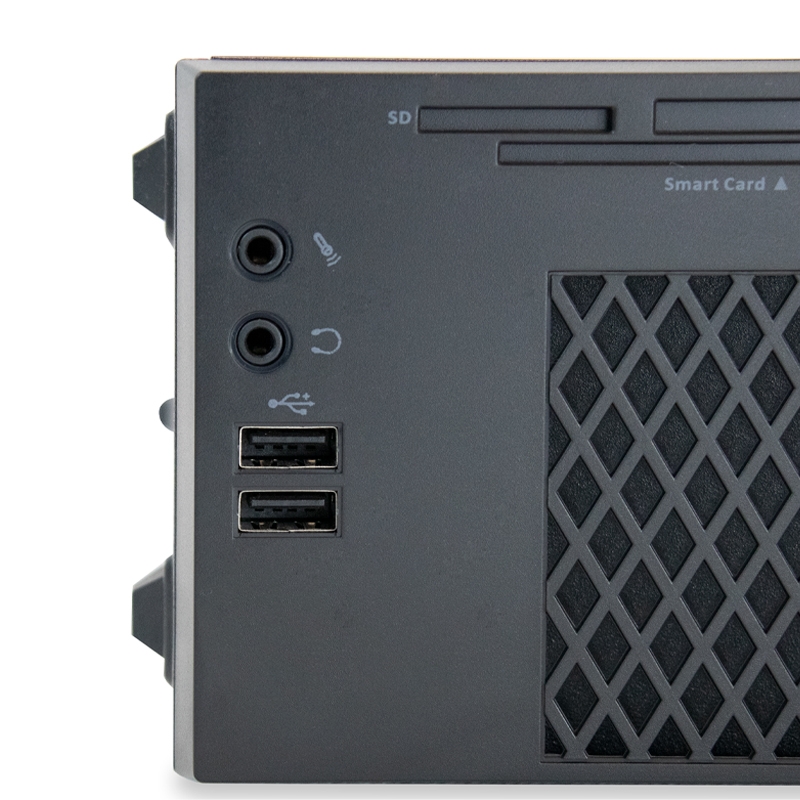

Wired networking is 1GbE through a Realtek RTL8111H LAN port. No Wi-Fi or Bluetooth is built in, so the system is wired-network only, and wireless options can be added when you configure the PC. There are ten USB ports in total. The rear has two Type-A 5Gbps ports and four USB 2.0 ports, and the front has two USB 3.0 and two USB 2.0 ports plus a headphone and microphone combo jack. Audio is High Definition Audio 7.1 from a Realtek ALC897 codec. No keyboard or mouse is included, so add them from the accessories below.
Ideal for
- Business desktops for staff in compact offices
- Home office setups
- Schools and education use
- Everyday productivity and multitasking
- Two-monitor desks where space is limited
For an i5-12400 small form factor business PC that is easy to place, comes with Windows 11 Home installed and carries a 3-year warranty, the Punch SlimStation SFF 12th Gen Desktop is a well-balanced choice. It combines a six-core processor, NVMe storage and two-monitor support in a small chassis. The configurator lets you adjust memory, storage and wireless before you order. If you are buying for education use, please ask about our discounted education licences for Windows 11 for qualifying schools on 0151 317 9860.
Built to order and tested in the UK by Punch Technology, every system comes with a 3-year parts and labour warranty, backed by over 30 years of PC building experience. The estimated lead time for your configuration is shown when you order.
Full Specification
| Processor | |
| CPU | Intel Core i5-12400 2.5/4.4GHz 6 Core, 12 Thread CPU (LGA1700) |
| Cores / Threads | 6 Cores / 12 Threads |
| Frequency | Base 2.5GHz / Max Turbo 4.4GHz |
| Cache | 18MB L3 |
| Integrated Graphics | Intel UHD Graphics 730 |
| CPU Cooler | Intel Standard CPU Air Cooler (stock air cooler) |
| Memory & Storage | |
| RAM | 8GB DDR4 3200MHz |
| Configuration | 1 x 8GB |
| Max Supported | 64 GB (2 x DIMM slots, 1 used) |
| Primary SSD | 500GB M.2 PCIe 4.0 NVMe SSD (5000MB/s R, 3000MB/s W) – operating system and applications |
| Optical Drive | None |
| Graphics & Display | |
| GPU | Integrated – Intel UHD Graphics 730 |
| Display Outputs | 1 x HDMI 1.4, 1 x VGA on the motherboard |
| Motherboard & Connectivity | |
| Motherboard | MSI PRO H610M-E Micro-ATX DDR4 Motherboard (mATX) |
| Chipset | Intel H610 |
| Wired Networking | 1GbE (Realtek RTL8111H) LAN |
| Wireless | None (wired network only) |
| Audio | High Definition Audio 7.1 (Realtek ALC897 2/4/5.1/7.1) |
| Rear & Front I/O (Input/Output) | |

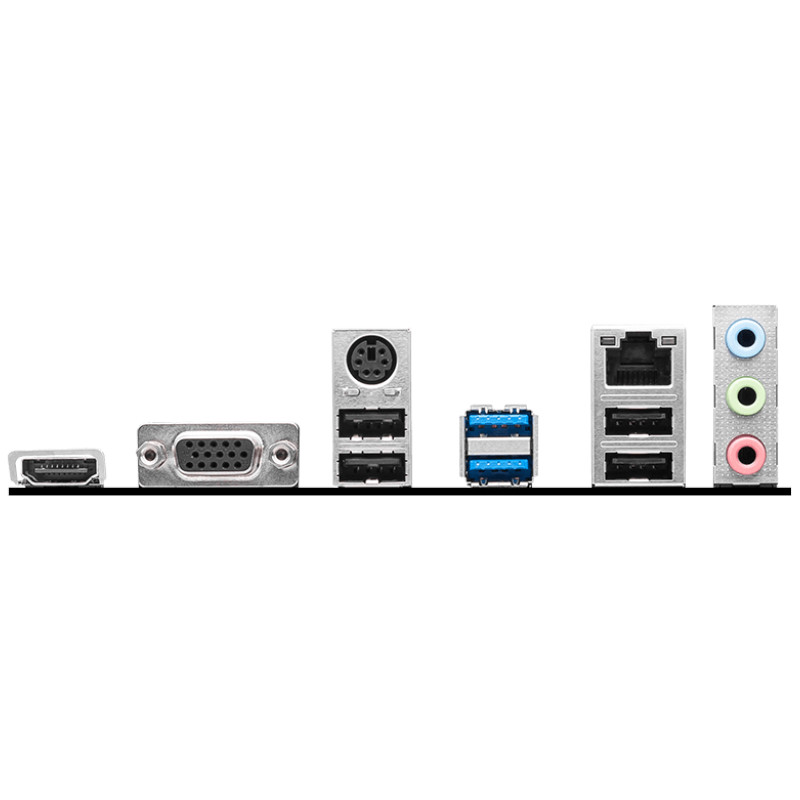

| Rear Ports | 2 x Type-A 5Gbps, 4 x Type-A USB 2.0, 1 x RJ-45 1GbE Ethernet Port |
| Front Ports | 2 x USB 2.0, 2 x USB 3.0, 1 x headphone/microphone combo jack (HD Audio) |
| Motherboard Video | 1 x HDMI 1.4, 1 x VGA |
| Expansion & Internal Slots | |
| PCIe Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Storage Expansion | 1 x M.2 (PCIe 3.0 x4 / SATA; 1 used, 0 free), 4 x SATA 6Gb/s (0 used) |
| Power, Case & Cooling | |
| Power Supply | In Win 265W 80 Plus Bronze Flex ATX PSU (80 PLUS Bronze, Non-modular) |
| Chassis | In Win CJ708 8L SFF Black (Small form factor, Solid steel) |
| Fans | None (pre-installed) |
| Liquid Cooling | None (air-cooled – Intel Standard CPU Air Cooler) |
| Dimensions | 305mm (D) x 95mm (W) x 290mm (H) |
| Software & Support | |
| Operating System | Microsoft Windows® 11 Home (Standard licence) (genuine, pre-installed) |
| Input Devices | No keyboard or mouse included |
| Warranty Cover | 3 Years, Parts & Labour |
| First Year | Free returns on warranty claims |
What is the Punch SlimStation SFF 12th Gen Desktop best for?
The Punch SlimStation SFF 12th Gen Desktop is primarily an office, education and home-working PC for everyday productivity on one or two screens. The i5-12400 provides six cores and twelve threads for office applications, browser-based tools and several windows open together, and the 500GB SSD keeps start-up and file access quick. A single 8GB memory module is fitted as standard, and the second DIMM slot is free if heavier multitasking needs more.
Typical uses are staff desktops in small offices, a home office, and school or college rooms where desk space is limited. The integrated graphics and the HDMI 1.4 and VGA outputs suit office, teaching and presentation work. It is not intended for 3D modelling, rendering or video editing, where a PC with a dedicated graphics card is the better choice. Wired Gigabit Ethernet is built in and Wi-Fi is not.
Where does the Punch SlimStation SFF 12th Gen Desktop sit in the range?
Within the compact home office and business range, this SlimStation is the Intel Core i5-12400 option with an NVMe SSD and a configurable specification. Below it, the AMD Entry Plus Home Office Desktop PC uses an AMD Ryzen 5 5600GT with 8GB of memory and a 500GB NVMe SSD. The Punch GDT, R7 5700G 16GB 1TB Win 11 moves to an AMD Ryzen 7 5700G with 16GB of memory. Above it, the Essential i5-12400, 8GB, 8L, Win 11 Home uses the same Intel Core i5-12400 with 8GB of memory and a 500GB NVMe SSD. The AMD Ryzen 5 5600GT 4.6GHz 6 Core Desktop PC offers 16GB of memory as 2 x 8GB with a 480GB M.2 SATA SSD. Choose this SlimStation when you want an Intel platform and the freedom to set memory, storage and wireless in the configurator.
Frequently Asked Questions
What software does the Punch SlimStation SFF 12th Gen Desktop support?
It runs standard Windows desktop software for office work, email, web browsing and browser-based business tools. It ships with Microsoft Windows 11 Home 64-bit, genuine and pre-installed. The six-core i5-12400 with 8GB of memory suits everyday productivity applications. Graphics-heavy software such as 3D or video editing packages is better suited to a PC with a dedicated graphics card.
Can the SlimStation run two monitors?
Yes, it supports two monitors using the motherboard’s one HDMI 1.4 port and one VGA port, driven by the processor’s integrated graphics. Check that your monitors have inputs to match, or choose suitable cables from our accessories range.
Can I add more memory to the SlimStation?
Yes. The motherboard has two DIMM slots and supports up to 64GB of DDR4. One slot holds the 8GB 3200MHz module and one is free. You can also choose more memory in the configurator before you order.
Does the SlimStation have Wi-Fi?
No, there is no built-in Wi-Fi or Bluetooth. Networking is through the 1GbE Ethernet port on the rear. Wireless options can be added when you configure the PC.
Who is this PC best suited for?
It is best suited to small businesses, schools and home workers who want a compact, dependable Windows desktop for office, education and home office use. It suits buyers who need a small footprint, a wired network connection and up to two monitors. It is not aimed at users who need a dedicated graphics card.
How big is the Punch SlimStation SFF 12th Gen Desktop?
The In Win CJ708 8L case measures 305mm deep, 95mm wide and 290mm high, small enough for a desk or shelf. No keyboard or mouse is included, so add them from our Keyboards and Mice range when you order.
