Punch SlimStation Ryzen 5 9600 Small Form Factor Workstation PC

AMD Ryzen 5 Small Form Factor Workstation PC – Built in the UK

The Punch SlimStation Ryzen 5 9600 is a desk-friendly Ryzen 5 small form factor workstation for home office, small business and everyday productivity.

The SlimStation pairs an AMD Ryzen 5 9600 processor with 16GB of DDR5 memory and a 1TB NVMe SSD inside the In Win CJ708 8L chassis, a black steel case just 305mm deep, 95mm wide and 290mm high. It is made for people who want dependable multitasking and a tidy desk rather than a full-size tower. Because it is built to order, you can change parts in the configurator before you buy. For anyone who needs a compact, capable Ryzen 5 workstation for office and study work, this is a sensible starting point.

The Punch SlimStation Ryzen 5 9600 is built on an AMD Ryzen 5 9600 processor with 6 cores and 12 threads. It uses the processor’s integrated graphics rather than a separate graphics card. It has 16GB of DDR5 5600MHz memory, a 1TB WD Blue SN5100 M.2 PCIe 4.0 NVMe SSD and genuine, pre-installed Microsoft Windows 11 Home, and it comes with a 3-year parts and labour warranty.

Processor: AMD Ryzen 5 9600 on a Gigabyte A620M H board

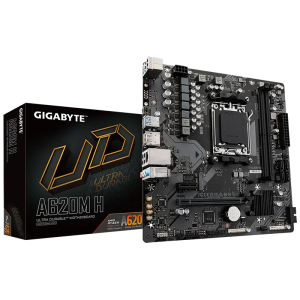

The Ryzen 5 9600 is a 6-core, 12-thread AM5 processor with a 3.8GHz base clock, a maximum turbo of 5.2GHz and 32MB of L3 cache. That is plenty of headroom for office suites, browser-based tools, video calls and several applications open at once. The processor sits on a Gigabyte A620M H Micro-ATX motherboard with the AMD A620 chipset and DDR5 memory support. Cooling comes from the AMD stock CPU cooler, so the system is air-cooled with no liquid loop to maintain.

Integrated graphics and display outputs

There is no separate graphics card in this build. The graphics are integrated into the Ryzen processor, which is well matched to office applications, web work, video playback and conferencing. The motherboard provides one DisplayPort 1.4 output and one HDMI 2.1 output, so you can run two monitors from the back of the PC. The SlimStation is a productivity machine rather than a graphics workstation. If your work depends on heavy GPU acceleration, look at the higher-specification workstations in the range.

Memory and storage

The 16GB of DDR5 5600MHz memory runs in dual channel as two 8GB modules. The motherboard supports up to 128GB across its two DIMM slots, both of which hold the supplied kit, so a larger upgrade later means replacing the modules. If you know you need more, choose it in the configurator before you order.

The 1TB WD Blue SN5100 M.2 PCIe 4.0 NVMe SSD is rated at 7100MB/s read and 6700MB/s write. It holds Windows and your applications, with room left for documents and projects, and it keeps boot times and file loading short. The board’s single M.2 slot is used by this drive, and the board also has four SATA 6Gb/s ports. There is no optical drive.

Case, power and size

The In Win CJ708 8L is a small form factor chassis in solid steel, finished in black. Its footprint is 305mm deep by 95mm wide by 290mm high, small enough for a desk corner or a shelf. Power comes from an In Win 265W 80 Plus Bronze Flex ATX PSU, a non-modular unit that suits a low-power build like this one. No extra case fans are pre-installed; cooling is handled by the stock CPU cooler.

Connectivity and expansion

Wired networking is Gigabit Ethernet (Realtek 1GbE). Wireless is a 1200Mbps dual-band Wi-Fi 5 card with Bluetooth 4, fitted as a PCIe adapter. Audio is Realtek 7.1 HD Audio. The rear panel has 2 USB Type-A ports at 5Gbps, 4 USB 2.0 ports and the RJ-45 Ethernet port, alongside the DisplayPort and HDMI video outputs. On the front there are 2 USB 3.0 ports, 2 USB 2.0 ports and a headphone and microphone combo jack. For expansion the board has one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot, and the compact chassis takes low-profile cards. No keyboard or mouse is included, so pick them from the accessories below.

Ideal for

• Home office and remote working
• Small businesses and shared offices that need compact desktops
• Students and everyday users
• Reception, back-office and other desks where space is tight
• Dual-monitor productivity setups

The Punch SlimStation Ryzen 5 9600 suits anyone who wants a quick, tidy Ryzen 5 small form factor workstation for office, study and everyday computing. Six cores, 16GB of DDR5, a 1TB PCIe 4.0 NVMe SSD and genuine, pre-installed Windows 11 Home are well balanced for that job, and the 8L case keeps the footprint small. Change any part in the configurator and the estimated lead time for your configuration is shown when you order. If you are buying for education use, please ask about our discounted education licences for Windows 11 for qualifying schools.

Built to order and tested in the UK by Punch Technology, every system comes with a 3-year parts and labour warranty, backed by over 30 years of PC building experience and our status as an AMD Elite System Builder. The estimated lead time for your configuration is shown when you order.

What is the Punch SlimStation Ryzen 5 9600 best for?

The Punch SlimStation Ryzen 5 9600 is primarily an everyday productivity and office PC for home and small business use. Its six-core, twelve-thread processor keeps office suites, web applications, video calls and a crowd of browser tabs responsive together. The integrated graphics drive up to two monitors through the DisplayPort 1.4 and HDMI 2.1 outputs. It is not intended for sustained 3D rendering or GPU-heavy work, because it relies on the processor’s integrated graphics.

Typical uses include accounts and spreadsheet work, remote working with video conferencing, document handling, school and college coursework, front-desk and back-office machines, and light media editing. The 1TB WD Blue SN5100 PCIe 4.0 NVMe SSD keeps boot and file loading quick, and 16GB of DDR5 is comfortable for several applications open at once.

Where does the Punch SlimStation Ryzen 5 9600 sit in the range?

Below it, the Compact Ryzen 7 Workstation pairs a Ryzen 7 5700G with 32GB of DDR4 3200MHz and a 500GB SSD. The Ryzen 7 Multi Monitor Office PC pairs the same processor with 16GB of DDR4 3200MHz and a 1TB SSD. Both use DDR4 memory, where the SlimStation moves to DDR5 on the AM5 platform.

Above it, the Value Small Business Desktop steps up to an Intel Core i7-12700 with 12 cores, 16GB of DDR4 and a 500GB SSD. The Elite R Gaming PC uses a Ryzen 5 8500G with 16GB of DDR5 5600MHz and a 1TB SSD.

Frequently Asked Questions

What software can the Punch SlimStation Ryzen 5 9600 run?

It runs everyday Windows 11 desktop software comfortably, including office suites, web browsers, video-conferencing tools and cloud-based business applications. Windows 11 Home is supplied genuine and pre-installed. The Ryzen 5 9600 has 6 cores and 12 threads, and 16GB of DDR5 memory leaves room for several programs open at once. It also copes with light photo and video editing, but it uses integrated graphics, so it is not aimed at GPU-intensive creative or 3D work.

Can the Punch SlimStation run two monitors?

Yes, it can drive two monitors from the motherboard outputs, one DisplayPort 1.4 and one HDMI 2.1. The integrated graphics in the Ryzen processor power both screens, so no graphics card is needed for a dual-monitor office setup. You can add screens from our monitors range.

Does the Punch SlimStation have Wi-Fi and Bluetooth?

Yes, the default build includes a 1200Mbps dual-band Wi-Fi 5 card with Bluetooth 4, fitted as a PCIe adapter. For a wired connection there is also a Gigabit Ethernet port on the rear panel.

How big is the SlimStation and does it come with a stand?

The In Win CJ708 8L case measures 305mm deep, 95mm wide and 290mm high. That is small enough for a desk corner or a shelf. It comes with a footstand so the chassis can stand vertically if you prefer.

Who is this PC best suited for?

The Punch SlimStation Ryzen 5 9600 is best suited to home-office workers, small businesses, students and anyone who needs a compact, reliable desktop for everyday productivity. It also suits reception and back-office desks where space is limited. Buyers who need a powerful dedicated graphics card for rendering or other GPU-heavy work should look at the higher-specification workstations in the range.

Can I upgrade the memory or storage later?

Yes, but the default build uses all the slots that matter. The Gigabyte A620M H board supports up to 128GB of memory across two DIMM slots, both holding the supplied 2 x 8GB kit, so a bigger upgrade means replacing the modules. The single M.2 slot is used by the 1TB WD Blue SN5100 SSD, and the board has four SATA 6Gb/s ports. The case takes low-profile expansion cards. You are free to fit your own upgrades later. Our warranty still covers the items we supplied, but damage caused by an upgrade is not covered.
