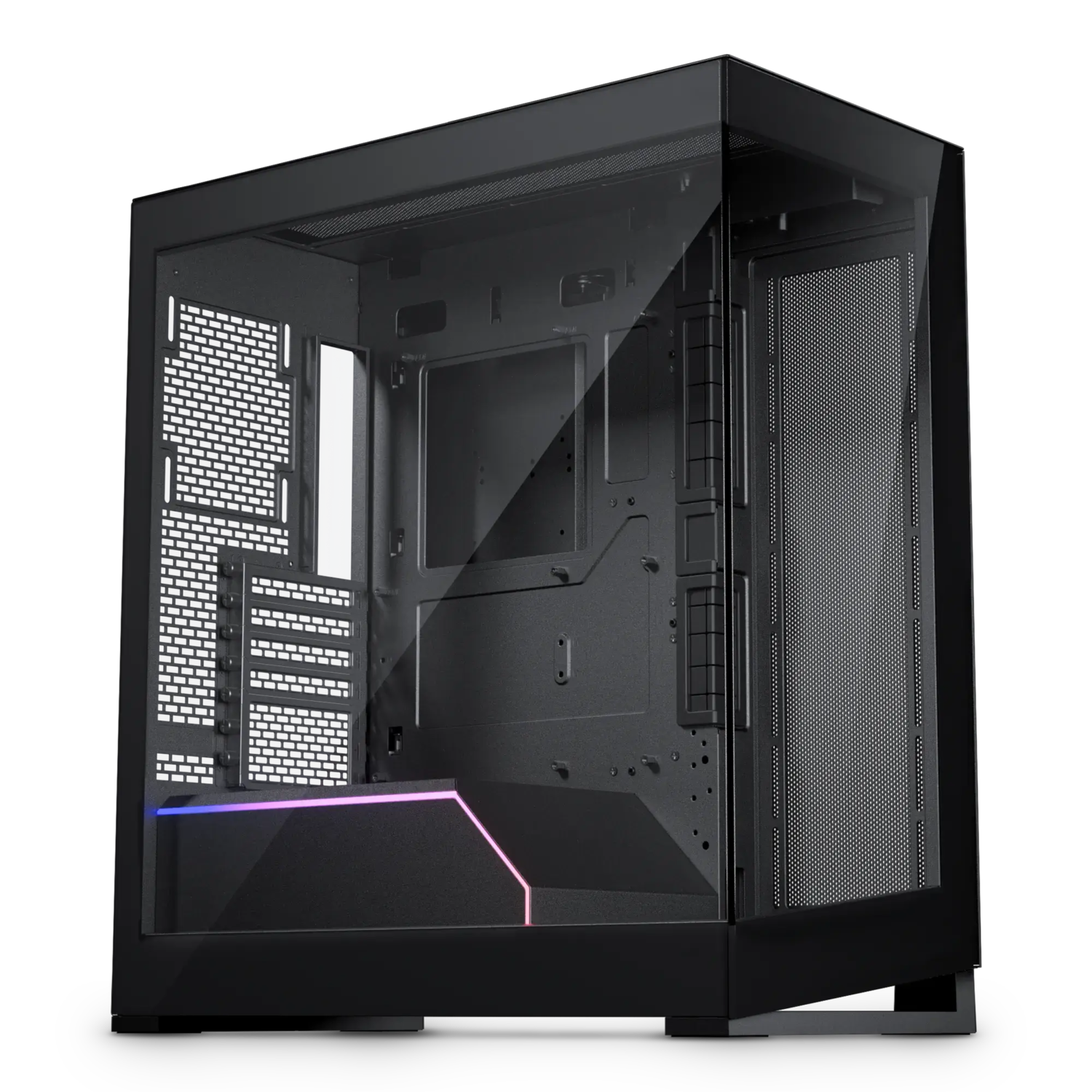

Phanteks NV5 Mid-Tower Full Glass Case, Black

Phanteks NV5 Mid-Tower Full Glass Case, Black

A panoramic-glass mid-tower with a top-mounted PSU chamber, integrated D-RGB lighting and space for two 360mm radiators.

The NV5 brings the seamless front-and-side glass of Phanteks’ NV7 to a smaller mid-tower. The power supply and cables are moved into a chamber at the top rear, leaving the main compartment open and uncluttered, and the front corner has no pillar so the whole build is visible. It supports boards from Mini-ITX to E-ATX (E-ATX to 280mm wide without the GPU bracket) and ships without fans, so the cooling can be specified to match the components. Integrated D-RGB lighting runs along the PSU shroud and is controlled from the front panel or the motherboard.

Cooling and clearances

Eight 120mm fan positions are available: three top, three side, one rear and one bottom. The top and side each take a 360mm radiator and the rear a 120mm. Graphics cards up to 440mm long and 170mm tall fit, along with CPU coolers up to 180mm and power supplies up to 230mm.

Storage and expansion

Four 2.5in SSD and three 3.5in HDD mounts are provided, with seven expansion slots and a three-slot vertical GPU option. Front I/O includes USB-C 3.2 Gen 2, two USB 3.0 ports, audio and D-RGB controls. Punch can build a complete system in the NV5 with fans and lighting to suit.

Ideal for

• Showcase gaming PCs
• Dual 360mm radiator builds
• Builders who prefer to choose their own fans

Specifications

• Model: PH-NV523TG_DBK01
• Form factor: Mid-tower
• Motherboard support: E-ATX (up to 280mm without GPU bracket), ATX, Micro-ATX, Mini-ITX
• Dimensions: 239mm W x 477mm D x 528mm H
• Net weight: 11.28kg
• Materials: steel chassis, tempered glass
• Max GPU length: 440mm; max GPU height: 170mm
• Max CPU cooler height: 180mm
• Max PSU length: 230mm
• Fan mounts (120mm): top 3, side 3, rear 1, bottom 1
• Radiator support: top 360mm, side 360mm, rear 120mm
• Fans included: none
• Drive bays: 4x 2.5in, 3x 3.5in
• Expansion slots: 7 (3-slot vertical GPU support)
• Front I/O: 1x USB-C 3.2 Gen 2, 2x USB 3.0, audio, D-RGB controls, power
• Colour: satin black
