Corsair 3500X Mid-Tower ATX Case, No Fans, White

Corsair 3500X Mid-Tower ATX Case, No Fans, White

A full-height ATX mid-tower with removable glass on the front and side, supplied without fans so you choose the cooling.

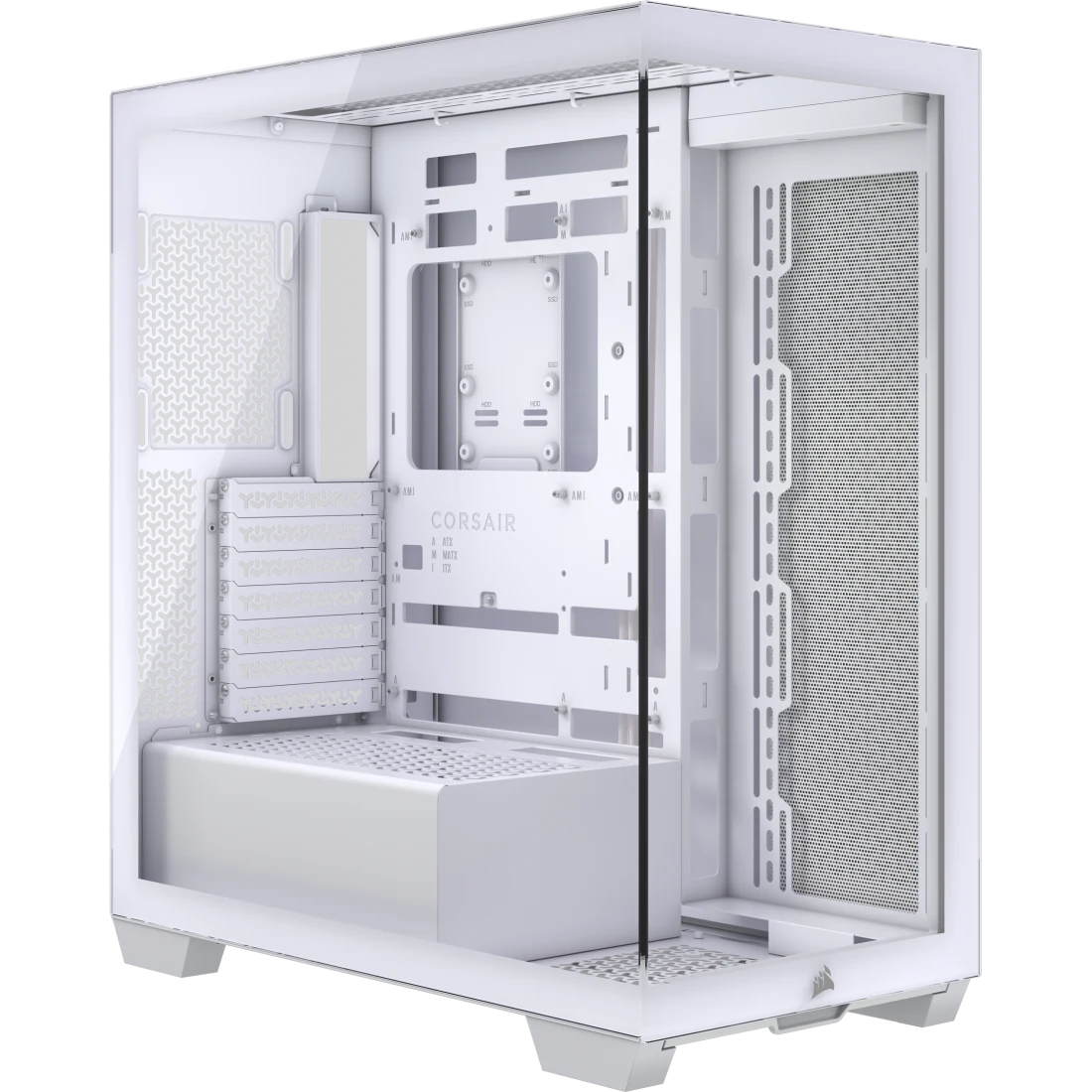

The 3500X is Corsair’s panoramic-glass mid-tower for full-size builds. The front and left panels are tempered glass and both lift off for access, while the cooling is handled by side and bottom intakes with top and rear exhaust. It accepts boards from Mini-ITX to E-ATX (305 x 277mm) and is compatible with reverse-connector motherboards such as ASUS BTF, MSI Project Zero and Gigabyte Project Stealth for a cable-free view. In white with a white interior it makes a clean base for a bright themed build.

Cooling and clearances

Up to ten 120mm fans fit: three top, three side, three bottom and one rear, with 140mm options top, side and bottom. Radiators up to 360mm mount on the top and side and a 120mm at the rear; Corsair lists its H60 to H150 coolers as compatible. There is 425mm for the graphics card, 170mm for a CPU cooler and 180mm for the power supply.

Layout

A removable drive plate holds two HDDs and two SSDs, seven horizontal expansion slots can be converted to four vertical slots with a separate riser, and 45mm of routing space keeps cables tidy. Front I/O offers USB-C 3.2 Gen 2, two USB-A 3.2 Gen 1 ports and audio. Punch can fit the 3500X in a new build with a fan set to match.

Ideal for

• White-themed ATX gaming builds
• Reverse-connector motherboards
• Builders choosing their own fans and lighting

Specifications

• Model: CC-9011277-WW
• Form factor: Mid-tower
• Motherboard support: Mini-ITX, MicroATX, ATX, E-ATX (305 x 277mm)
• Dimensions: 506mm H x 460mm L x 240mm W
• Weight: 9kg
• Max GPU length: 425mm
• Max CPU cooler height: 170mm
• PSU: ATX, up to 180mm
• Fan mounts: top 3x 120 / 2x 140mm, side 3x 120 / 2x 140mm, bottom 3x 120 / 1x 140mm, rear 1x 120mm
• Radiator support: top 360 / 280 / 240mm, side 360 / 280 / 240mm, rear 120mm
• Fans included: none
• Drive bays: 2x HDD, 2x SSD on removable plate
• Expansion slots: 7 horizontal or 4 vertical
• Front I/O: 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, audio
• Panels: tempered glass front and left, steel right
• Cable routing space: 45mm
• Reverse-connector motherboard support: yes
• Colour: white
• Warranty: 2 years
