Product Description
High performance for your business
A high performance computer designed to excel at a variety of complex tasks which is able to support 3 high resolution monitors. This system will support 2 x monitors up to 4k resolution via the DisplayPort and HDMI connections and an monitor up to FHD resolution via the DVI-I port. In some circumstances a third 4K screen can be supported via the DVI-I port via the use of a DVI-I to HDMI converter cable. Compute performance is also superb thanks to the Intel Core i7-8700 processor, 16GB of fast memory and the very high performance ADATA sX8200 SSD drive.
Monitor outputs:
1 x DVI-I port, supports a maximum resolution of 1920×1200@60Hz
2 x DisplayPort 1.2, supports a maximum resolution of 4096×2304@24Hz
We understand the requirement for office computers to be a compact size, quiet and low power consumption. We also designed our systems with easy maintenance and upgradability in mind.
Based around Intel 8th generation processors you can choose from Core i3 through to Core i7 and then settle on your configuration safe in the knowledge you have the room to expand. We have left spare memory and graphics slots, coupled with a spare storage drive bay building flexibility right into your professional system. Available with the choice of SSD and HDD in a range of sizes, and some great value RAM configurations.
Specifications:
Processor
- Intel Core i7-8700 3.2Ghz Six Core CPU
- Max Turbo Frequency: 4.6Ghz
- Cache: 12MB
- Raijintek AIDOS Air Cooler Installed
Memory
- 16GB DDR4 2666Mhz RAM
- Dual Channel – 2 x 8GB
- Supports up to 64GB
- 4 x DIMM sockets (2 Used)
Hard Drive
- 256GB ADATA SX8200 PCI M.2 PCIe NVMe SSD
- 2TB Seagate BarraCuda 3.5″ Hard Drive
- 1 x M.2 Slot, 0 free
- 6 SATA Ports, 4 free (2 Used for DVD-RW & 2TB HDD)
Optical Drive
- Asus DVD Re-Writer, SATA, 24x, M-Disk Support
- 2 Optical Bays (1 free)
Software
- Windows 10 Professional
- Clean install, no additional software
Chipset
- Intel B360 Chipset
Display Outputs
- 1 x DVI-I
- 2 x DisplayPort 1.2
- Supports up to 3 monitors at once
- Supports HDCP and HDR
Graphics
- Integrated Intel UHD630
Audio
- High Definition Audio, 5.1 or 7.1 channel
- Audio provided by Realtek ALC892 Audio Chip on the motherboard
Input Devices
- No Keyboard or Mouse Included
Wired Networking
- Intel 10/100/1000 LAN
Wireless Networking
- Gigabyte 1733Mbps Wireless AC & Bluetooth 5.0
Power Supply
- 400 watts
Dimensions
- Height: 365mm
- Width: 173mm
- Depth: 368mm

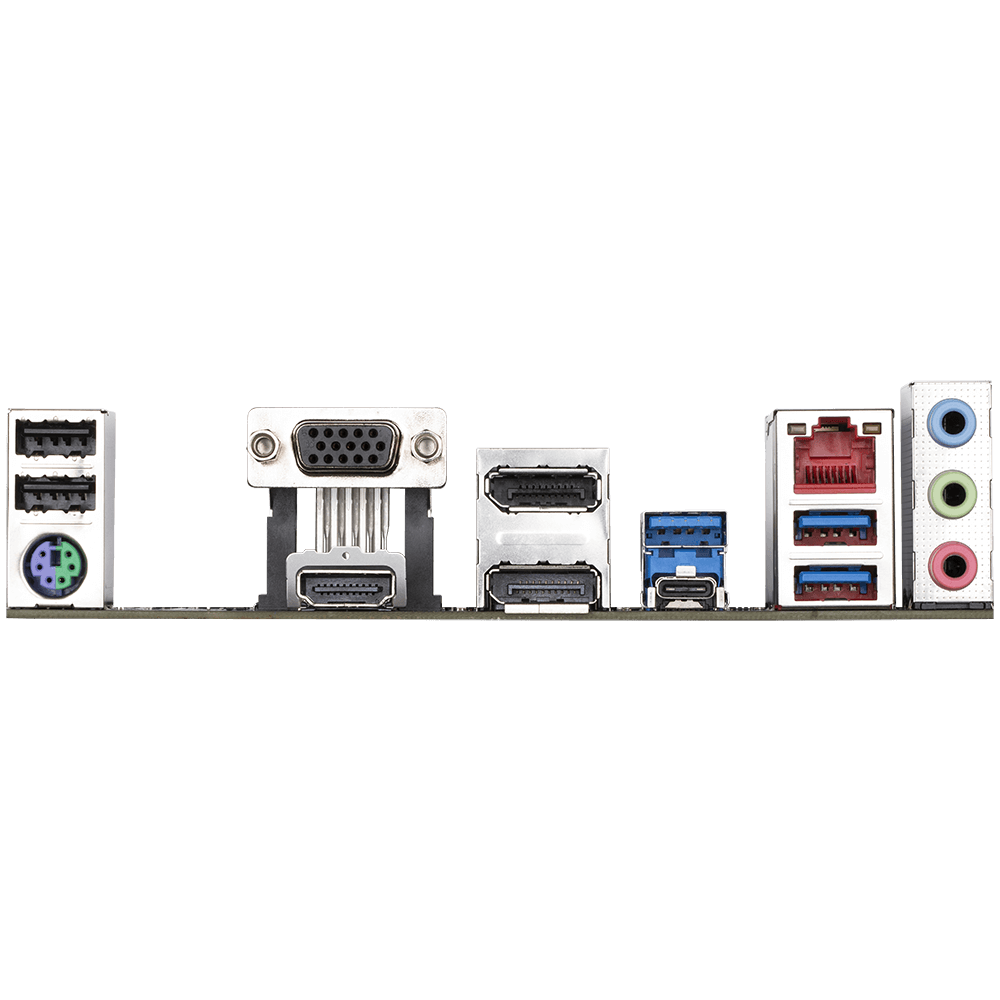

Interfaces
- 1 x PS/2 Keyboard/Mouse Port
- 3 x USB 2.0 Port (1 front, 2 rear)
- 3 x USB 3.1 Gen 1 Port (1 front, 2 rear)
- 2 x USB 3.1 Gen 2 Port (1 x Type-C and 1 x Type-A rear)
- 1 x RJ-45 Ethernet Port
- 6 x Audio Jacks at the rear
- 2 x Audio Jacks at the front
- 1 x DVI-I
- 2 x DisplayPort 1.2
Note the display outputs from the motherboard are disabled when a graphics card is installed.
Expansion
- 2 x PCI-e x 16 Slot (2 Free)
- 2 x PCI-e x 1 Slots (2 Free)
Case
- Contour PT1203
- 1 x 80mm black fan installed at the front
- Space for 1 additional 80/92mm fan at the rear
Warranty
- 3 Year Return to Base parts and labour
- 1st 30 days collect and return at our expense
Fast 240GB M.2 NVMe SSD
Latest 8th Generation Core i7 CPU

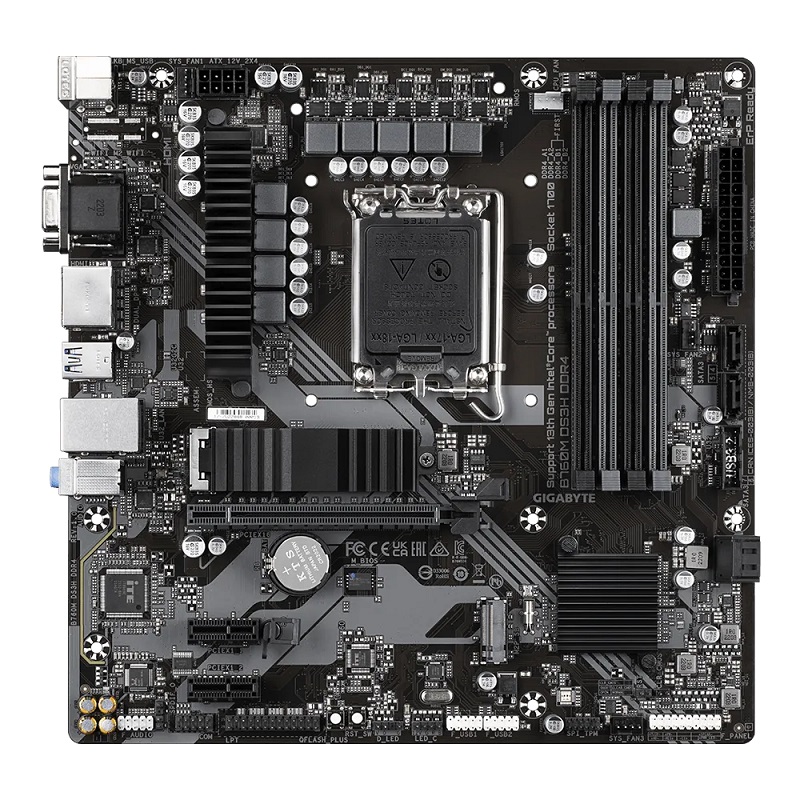

High performance motherboard
