Compact i5 Workstation

High performance in a compact chassis

A small PC can be powerful too.  This small system packs a powerful specification including the latest 10th generation Intel Core i5-14400 processor, 16GB dual channel memory and high performance 480GB solid state SSD drive.  It is ideal for quickly handling all your productivity applications, even the most demanding tasks.



The innovative chassis can house a regular motherboard and is able to be upgraded to include a mid range graphics card and up to 2 x 3.5″ hard drives and 2 x 2.5″ SSD drives.  The case accepts regular height IO cards.

A Compact i5 PC based on the latest Intel Technology

Processor

• Intel Core i5-14400 2.9Ghz Ten Core CPU
• 10 Core / 16 Thread
• Max Turbo Frequency: 4.7GHz
• Cache: 12MB
• Copper Base Air Cooler Installed

Memory

• 16GB DDR4 3200Mhz RAM
• Dual Channel – 2 x 8GB
• Supports up to 64GB
• 2 x DIMM sockets (2 Used)

Hard Drive

• 480GB NVMe SSD
• 1 x M.2 sockets, 0 free
• 4 SATA Ports, 4 free

Optical Drive

• None
• 1 x Slim Optical Bays, 1 free

Software

• Windows 11 Home 64-bit
• Clean install, no additional software

Chipset

• Intel H610M Chipset

Display Outputs

• 1 x HDMI Port
• 1 x DisplayPort
• 1 x D-Sub
• Supports up to 2 monitors at once

Graphics

• Integrated Intel UHD 630

Audio

• High Definition Audio, 5.1 or 7.1 channel
• Audio provided by Realtek ALC887 Audio Chip on the motherboard

Input Devices

• No Keyboard or Mouse Included

Wired Networking

• Realtek 1Gb Ethernet Port

Wireless Networking

• None

Power Supply

• 250 watts

Dimensions

• 132 mm (W)
• 284 mm (H) – The Height becomes 291mm including the chassis feet.
• 350 m (D)

Interfaces

• 1 x PS/2 Keyboard Port
• 1 x PS/2 Mouse Port
• 6 x USB 2.0 Port (2 front, 4 rear)
• 4 x USB 3.2 Port (2 front, 2 rear)
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio Jacks at the rear
• 2 x Audio Jacks at the front
• 1 x HDMI
• 1 x DisplayPort
• 1 x D-Sub

Note the display outputs from the motherboard are disabled when a graphics card is installed



Expansion

• 1 x PCI-e x 16 Slots, 1 free
• 2 x PCI-e x 1 Slots, 2 free

Warranty

• 3 Year Return to Base parts and labour
• 1st 30 days collect and return at our expense

• Productivity Series

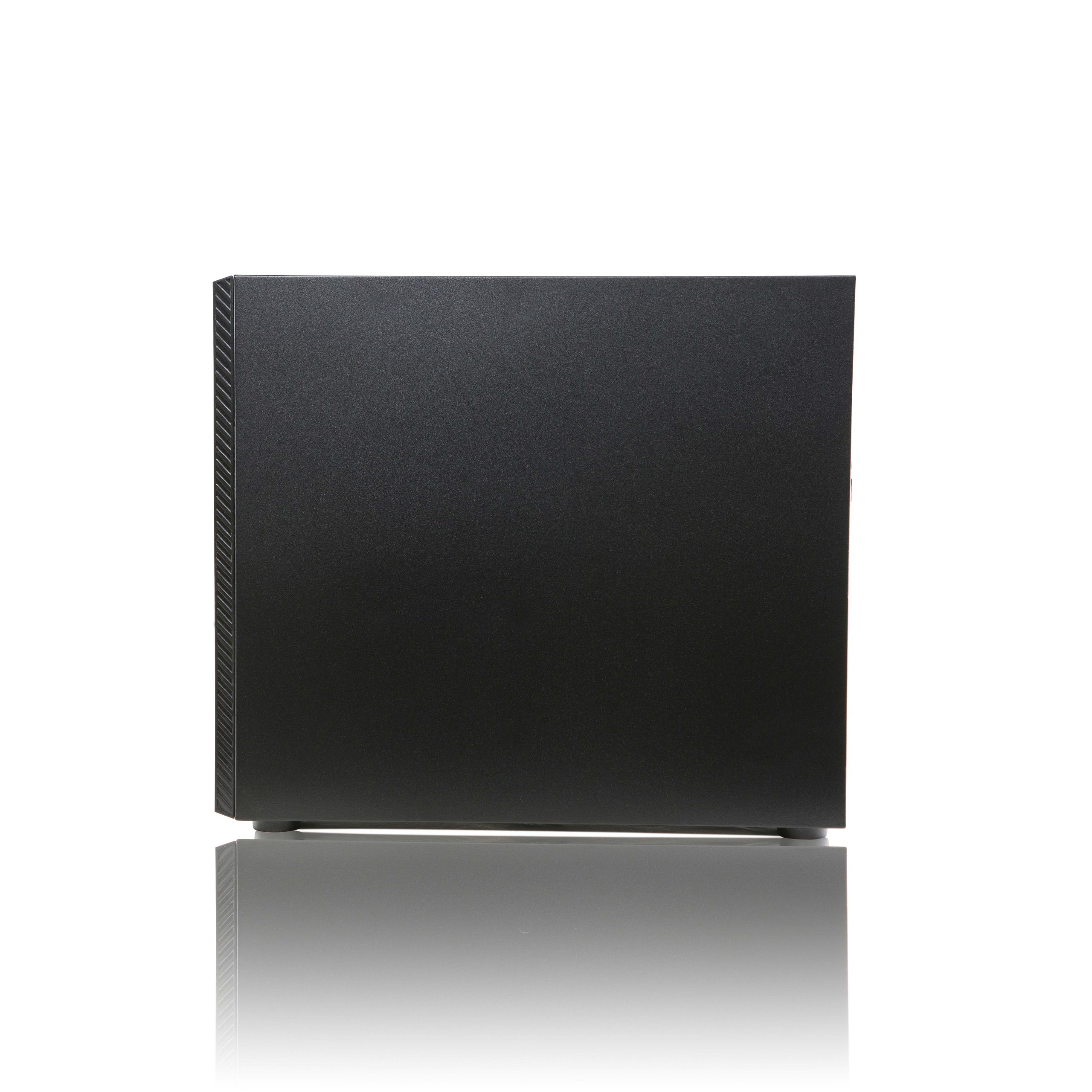

• Avance L12A mATX Case
• Intel Core i5-14400 2.5/4.7GHz 10 Core, 16 Thread CPU
• ASUS Prime H610M-E D4-CSM mATX Motherboard
• Standard Graphics Integrated with the CPU
• 16GB DDR4 3200MHz Memory (2x8GB)
• 480GB NVMe M.2 SSD (3500MB/R, 2100MB/W)
• Intel Standard CPU Cooler
• 250W Slim Power Supply
• Built in 5.1 Sound Card
• Microsoft Windows® 11 Home
