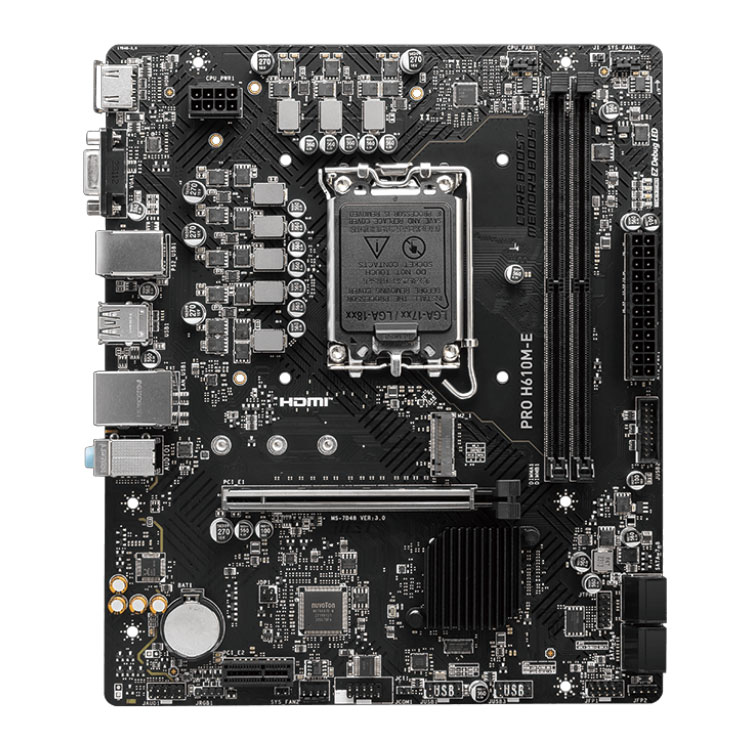

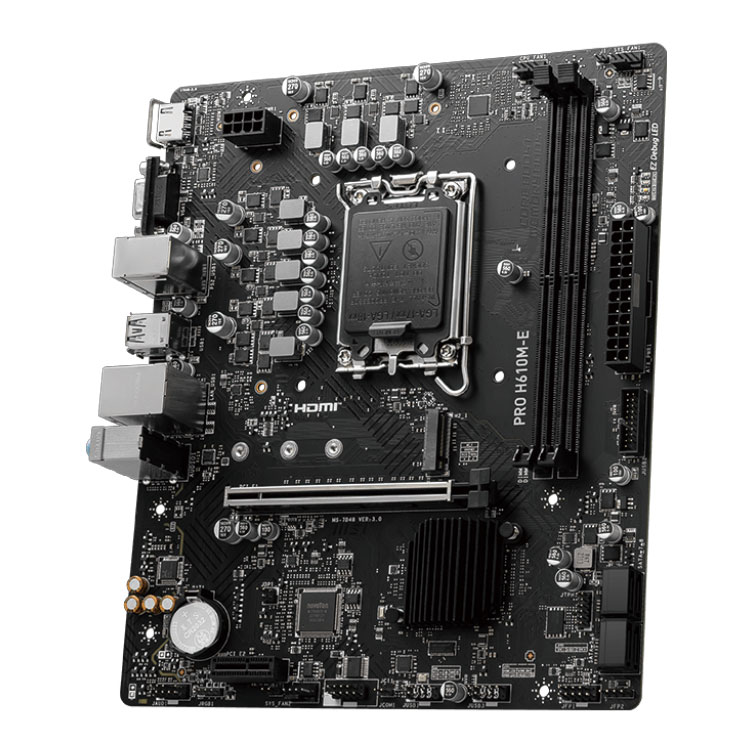

MSI PRO H610M-E DDR5 Micro-ATX Motherboard
Build a reliable and efficient PC with the MSI PRO H610M-E DDR5, a compact Micro-ATX motherboard designed for Intel® 14th, 13th, and 12th Generation processors. Powered by the Intel® H610 chipset, it delivers excellent stability for home, office, business, and entry-level gaming systems while supporting the latest DDR5 memory technology for improved performance and efficiency.
Key Features
- Supports Intel® Core™, Pentium® Gold, and Celeron® processors (LGA1700)
- Intel® H610 chipset
- 2 x DDR5 DIMM slots supporting up to 96GB memory
- Supports DDR5 memory up to 5600 MT/s (depending on CPU support) [We recommend 5200 for i3 and i5 only]
- 1 x PCIe 4.0 x16 slot for modern graphics cards
- 1 x PCIe 3.0 x1 expansion slot
- 1 x M.2 PCIe 3.0 x4/SATA SSD slot
- 4 x SATA III (6Gb/s) ports
- Realtek Gigabit LAN for fast wired networking
- 7.1 Channel HD Audio with Realtek ALC897 codec
- HDMI™ and VGA outputs for integrated graphics processors
- USB 3.2 Gen 1 and USB 2.0 connectivity
- EZ Debug LEDs for quick troubleshooting
Built for Everyday Performance
The MSI PRO H610M-E DDR5 is engineered to provide dependable performance for productivity, business applications, media consumption, and general computing. Its DDR5 memory support helps improve responsiveness while offering a future-ready platform for modern Intel processors.
Fast Storage & Expansion
Install a high-speed NVMe SSD using the onboard M.2 PCIe Gen3 x4 slot for quicker boot times and faster application loading. Additional SATA III ports allow easy expansion with hard drives and SATA SSDs, making it ideal for growing storage needs.
Reliable Connectivity

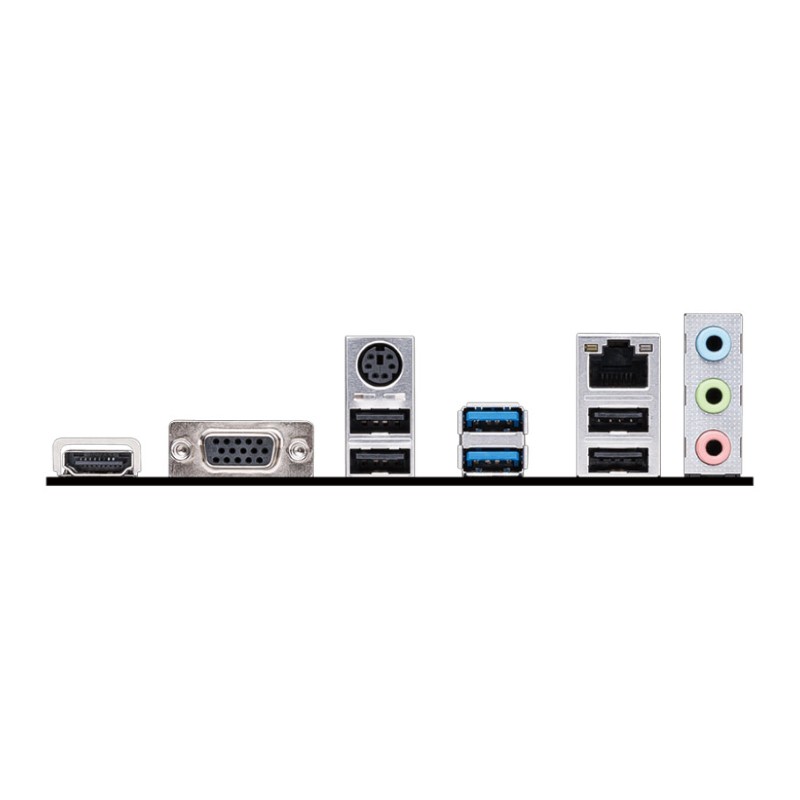

Enjoy stable networking through Gigabit Ethernet, connect displays using HDMI or VGA, and take advantage of multiple USB ports for peripherals and external storage devices.
Technical Specifications
| Form Factor | Micro-ATX |
|---|---|
| Socket | LGA1700 |
| Chipset | Intel® H610 |
| CPU Support | Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® |
| Memory | 2 × DDR5 DIMM, Up to 96GB |
| Memory Speed | Up to DDR5-5600 (CPU dependent) |
| Graphics Outputs | HDMI™, VGA |
| Expansion Slots | 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 |
| Storage | 1 × M.2 PCIe 3.0 x4/SATA, 4 × SATA III |
| Networking | Realtek Gigabit LAN |
| Audio | Realtek ALC897 7.1 HD Audio |
Package Includes
- MSI PRO H610M-E DDR5 Motherboard
- User Manual
- I/O Shield
- SATA Cable(s)
Ideal For: Office PCs, home computers, business workstations, student builds, and budget gaming systems using Intel LGA1700 processors.
