MSI PRO H610M-E Micro-ATX DDR4 Motherboard

MSI PRO H610M-E DDR4 Micro-ATX Motherboard

MSI’s most basic LGA1700 board: a compact, dependable DDR4 platform for office PCs that need HDMI and VGA outputs and nothing fancy.

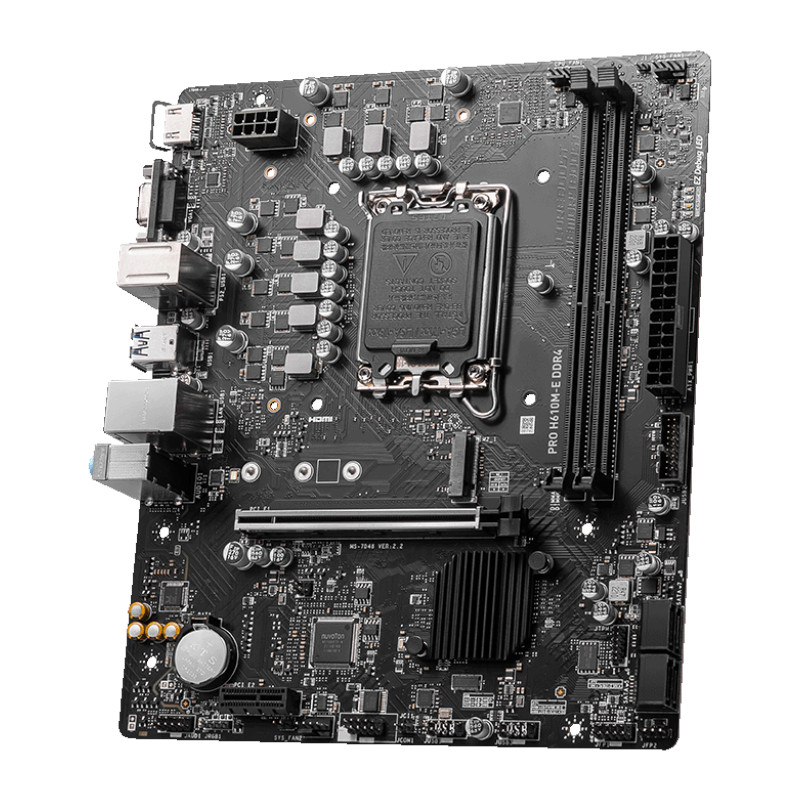

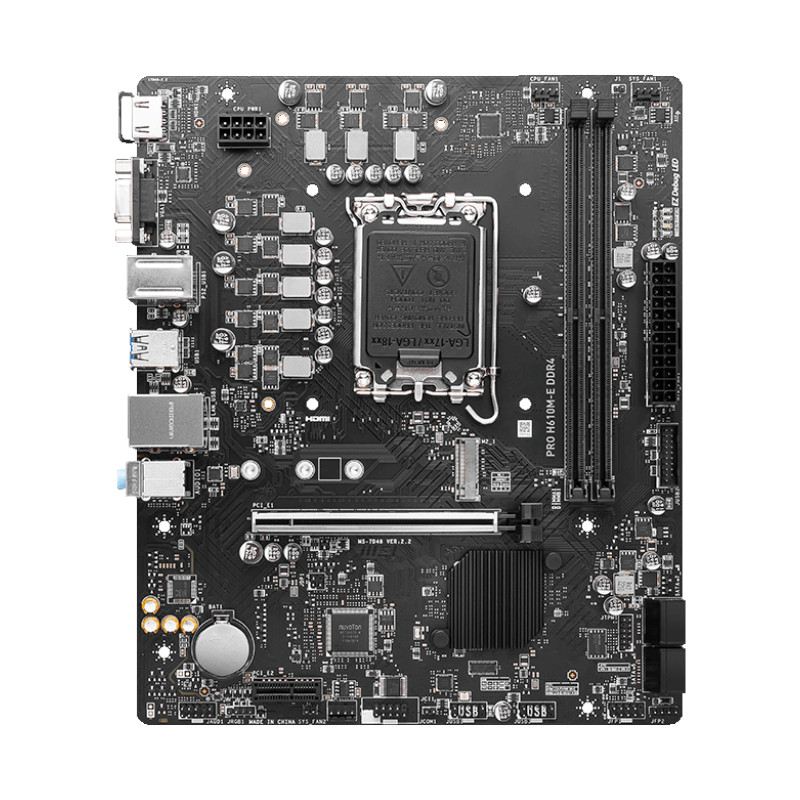

The MSI PRO H610M-E DDR4 is designed for volume office and everyday desktops where cost and reliability matter more than features. It supports 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron processors and takes up to 64GB of DDR4 at 3200MHz across two DIMMs, so it can reuse memory from an older system. At 23.6 x 20cm it fits in the smallest Micro-ATX cases. Punch can build it into a complete business PC with a Core i3 or Core i5.

Storage and expansion

A single M.2 slot from the chipset accepts 2242, 2260 or 2280 drives in PCIe 3.0 x4 or SATA mode, backed by four SATA 6Gb/s ports. The PCIe 4.0 x16 slot from the processor takes a graphics card if the system ever needs one, and a PCIe 3.0 x1 slot is available for a network or sound card.

Connectivity and displays

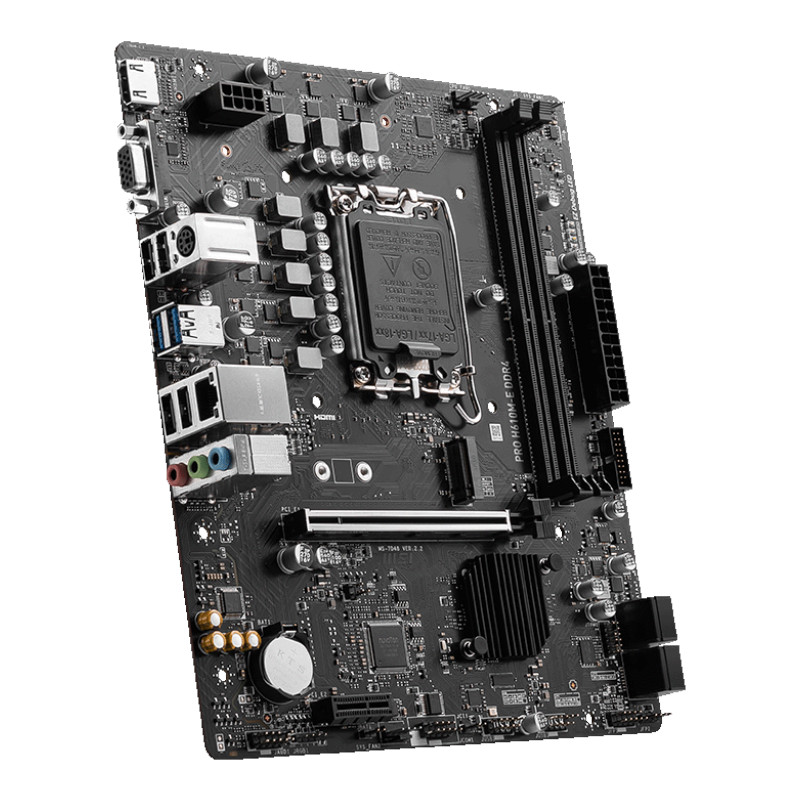

The rear panel provides two USB 3.2 Gen 1 5Gbps Type-A ports, four USB 2.0 ports, a PS/2 keyboard/mouse port, HDMI 1.4 (4K at 30Hz) and VGA outputs for two displays from the processor’s integrated graphics, a Realtek RTL8111H Gigabit Ethernet port and audio jacks from the Realtek ALC897 codec. Front-panel headers add two USB 3.2 Gen 1 and four USB 2.0 ports. There is no Wi-Fi or Bluetooth.

Business features

Three fan headers (CPU plus two system), a TPM header, chassis intrusion header, serial port header, a single RGB header and MSI’s EZ Debug LEDs cover what a managed desktop needs, and the board runs from a standard 24-pin plus 8-pin power supply.

Ideal for

• Volume office and reception desktops
• Systems that still need a VGA output for an existing monitor or projector
• Low-cost rebuilds that reuse DDR4 memory

Specifications

• Chipset: Intel H610
• Socket: LGA1700, Intel Core 14th, 13th and 12th Gen, Pentium Gold and Celeron
• Form factor: Micro-ATX, 23.6 x 20 cm
• Memory: 2 x DDR4 DIMM, max 64GB, 2133/2666/3200MHz (JEDEC and POR), dual channel, non-ECC unbuffered
• Expansion slots: 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (chipset)
• M.2: 1 x Key M PCIe 3.0 x4 or SATA 6Gb/s, type 2242/2260/2280
• SATA: 4 x SATA 6Gb/s
• LAN: 1 x Realtek RTL8111H 1Gbps
• Wireless: none
• Audio: Realtek ALC897 7.1-channel HD audio
• Rear USB: 2 x USB 3.2 Gen 1 5Gbps Type-A, 4 x USB 2.0
• Video outputs: 1 x HDMI 1.4 with HDR (4K 30Hz), 1 x VGA (2048 x 1536 at 50Hz, 1920 x 1200 at 60Hz)
• Other rear I/O: PS/2 keyboard/mouse, RJ-45, audio jacks
• Internal USB: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
• Fan headers: 1 x 4-pin CPU, 2 x 4-pin system
• Power: 1 x 24-pin ATX main, 1 x 8-pin +12V
• Lighting: 1 x 4-pin RGB LED header
• Other: 4 x EZ Debug LED, TPM header, serial port header, chassis intrusion header
