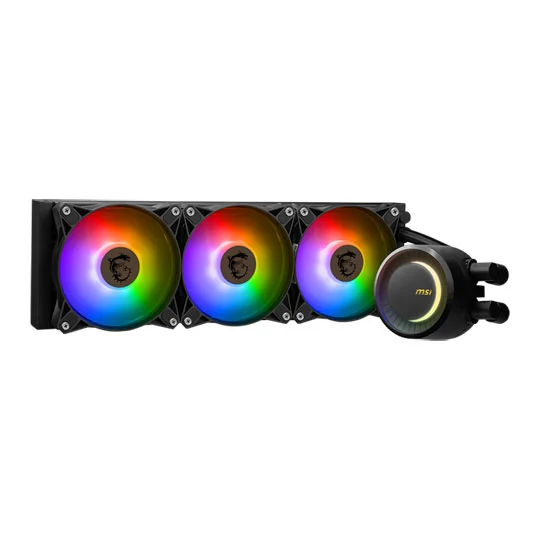

MSI MAG CoreLiquid E360 360mm ARGB AIO CPU Cooler

MSI MAG CoreLiquid E360 360mm ARGB AIO CPU Cooler

A 360mm all-in-one liquid cooler from MSI with three addressable RGB fans and broad socket support that includes AMD Threadripper.

The MAG CoreLiquid E360 uses a 394 x 119.2 x 27mm aluminium radiator fed by black rubber tubing and a compact pump block with a copper cold plate. Three 120mm fans mount to the radiator, each with a fluid dynamic bearing rated for 50,000 hours at 40 degrees and addressable RGB lighting that syncs with the motherboard. The pump block measures 74.9 x 65.4 x 54.2mm, keeping it clear of tall memory.

Cooling and noise

The pump runs at 3000 RPM and MSI quotes an average of 20 dBA from it, with a 50,000-hour rated life, a 3W draw and a 4-pin connector. The fans deliver between 25.5 and 75.04 CFM under PWM control, drawing 3W each in normal use. A 360mm radiator gives the E360 the surface area to handle the most demanding Intel Core and AMD Ryzen desktop chips.

Compatibility

Mounting covers Intel LGA1851, 1700, 1200, 1150, 1151, 1155 and 1156 and AMD AM5, AM4, TR4 and sTRX4, so it can be used on Threadripper workstations as well as mainstream desktops. A 1-to-3 fan PWM cable, a Molex-to-4-pin fan cable, a low-noise adapter cable and thermal paste are included. Punch Technology can fit it in a new build with a 360mm radiator mount.

Ideal for

• Core i9 and Ryzen 9 gaming and content-creation PCs
• Threadripper workstations on TR4 or sTRX4
• Cases with a 360mm front or top mount

Specifications

• Type: All-in-one liquid cooler
• Colour: Black
• Radiator: 360mm, 394 x 119.2 x 27mm, aluminium
• Tubing: Black rubber
• Water block dimensions: 74.9 x 65.4 x 54.2mm
• Cold plate: Copper
• Pump speed: 3000 RPM (plus or minus 10%)
• Pump noise: 20 dBA average
• Pump life: 50,000 hours
• Pump power: 3W (6W max), 0.25A (0.5A max)
• Pump connector: 4-pin
• Fans: 3 x 120 x 120 x 25mm, fluid dynamic bearing
• Airflow: 25.5-75.04 CFM
• Fan life: 50,000 hours at 40C
• Fan power: 3W (4.8W max), 0.25A (0.4A max)
• Fan connector: 4-pin PWM
• Fan cable length: 550 / 500mm
• Lighting: ARGB fans
• Socket support: Intel LGA1150, 1151, 1155, 1156, 1200, 1700, 1851; AMD AM5, AM4, TR4, sTRX4
• In the box: 1-to-3 fan PWM cable, Molex to 4-pin fan cable, low-noise adapter cable, thermal paste
