Corsair 2500X RGB Micro-ATX Dual-Chamber Case, 2 RGB Fans, Black

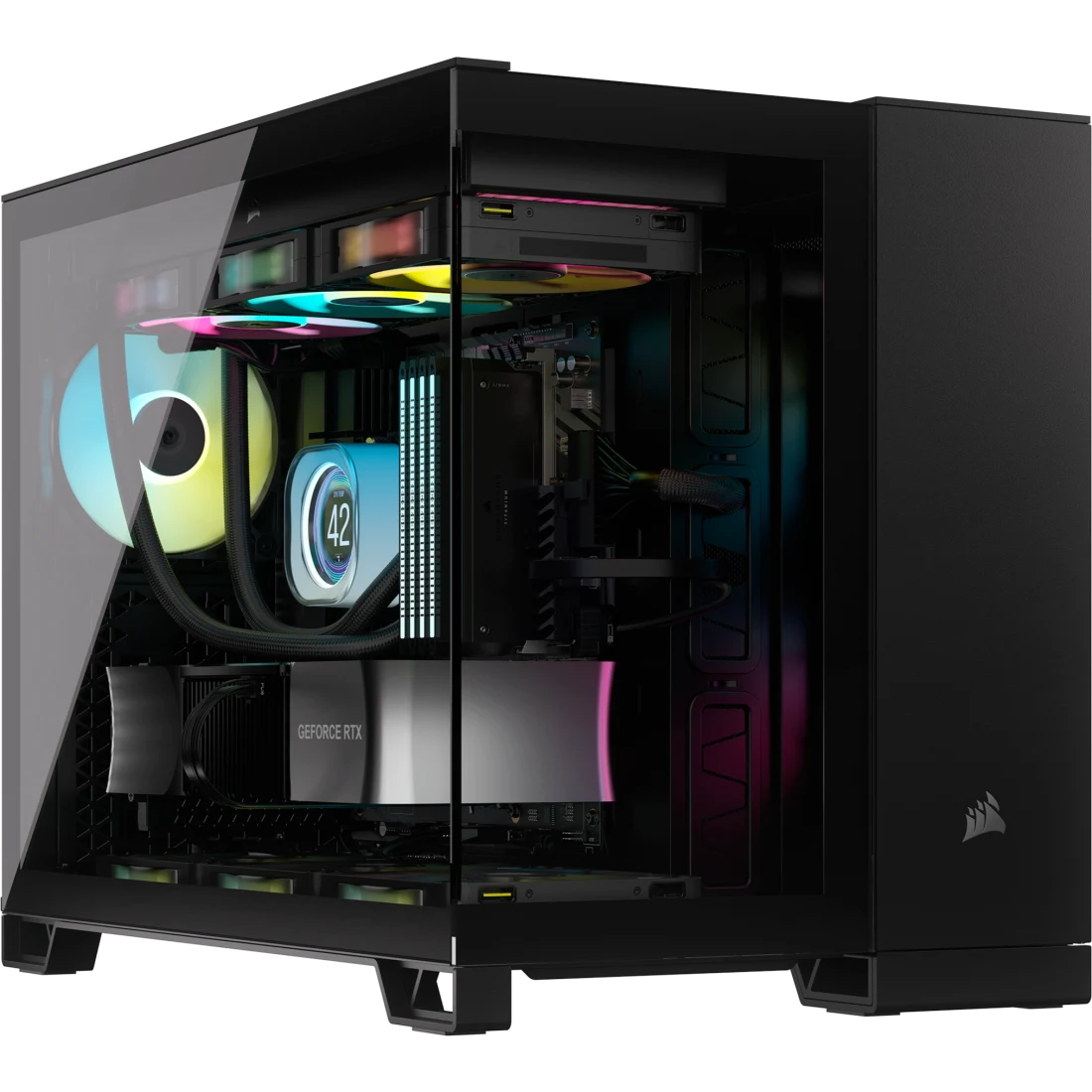

Corsair iCUE LINK 2500X RGB Micro-ATX Dual-Chamber Case, 2 RGB Fans, Black

A compact dual-chamber case with wrap-around glass and two iCUE LINK RGB fans already fitted.

The 2500X RGB puts the motherboard, graphics card and cooling in a glass-fronted main chamber and hides the power supply, cables and drives in a second chamber behind. The result is a clean, panoramic view of a Micro-ATX or Mini-ITX build without the height of a full mid-tower. Two iCUE LINK RX RGB fans come pre-installed, and the case is designed around Corsair’s single-cable iCUE LINK ecosystem for tidy fan and lighting connections. It suits gamers and creators who want a striking desk PC with a smaller footprint.

Cooling

Despite the size there is room for up to nine 120mm or six 140mm fans: three top, three bottom, two side and one rear. Radiators up to 360mm fit top and bottom, with 240mm on the side and 120mm at the rear, and Corsair lists its H60 to H150i coolers as compatible. Graphics cards up to 400mm and CPU coolers up to 180mm fit.

Layout and connectivity

The rear chamber gives 106mm of cable routing space and takes ATX power supplies up to 225mm. Four horizontal expansion slots can become four vertical slots with an accessory. Reverse-connector motherboards are supported, and the front panel offers USB-C 3.2 Gen 2, two USB-A 3.2 Gen 1 ports and audio. Punch can build a complete system in the 2500X RGB with iCUE LINK cooling throughout.

Ideal for

• Compact Micro-ATX gaming PCs
• Desk builds where the case is on show
• Corsair iCUE LINK cooling setups

Specifications

• Model: CC-9011267-WW
• Form factor: Dual-chamber mid-tower
• Motherboard support: Mini-ITX, MicroATX
• Dimensions: 376mm H x 469mm L x 304mm W
• Weight: 13kg
• Max GPU length: 400mm
• Max CPU cooler height: 180mm
• PSU: ATX, up to 225mm
• Fans included: 2x iCUE LINK RX RGB
• Fan mounts: top 3x 120 / 140mm, bottom 3x 120 / 140mm, side 2x 120mm, rear 1x 120mm
• Radiator support: top 360 / 280 / 240mm, bottom 360 / 280 / 240mm, side 240mm, rear 120mm
• Expansion slots: 4 horizontal (4 vertical with accessory)
• Front I/O: 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, audio
• Panels: tempered glass front and left, mesh right
• Cable routing space: 106mm
• Reverse-connector motherboard support: yes
• Colour: black
• Warranty: 2 years
