Corsair 110R Tempered Glass Mid-Tower ATX Case
A plain, well-made mid-tower with a glass side, a 5.25in bay and room for four drives.

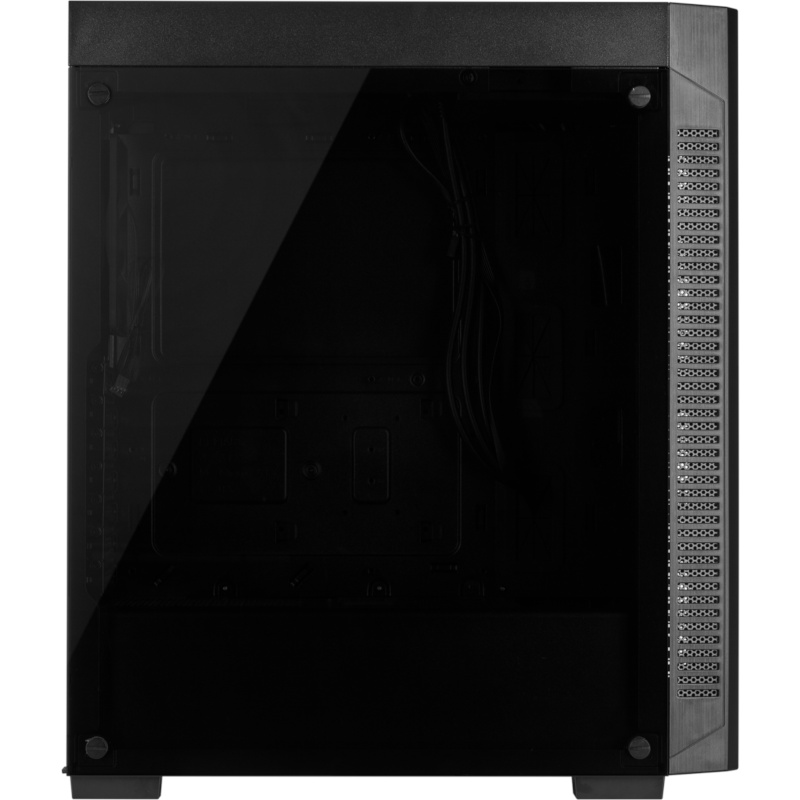

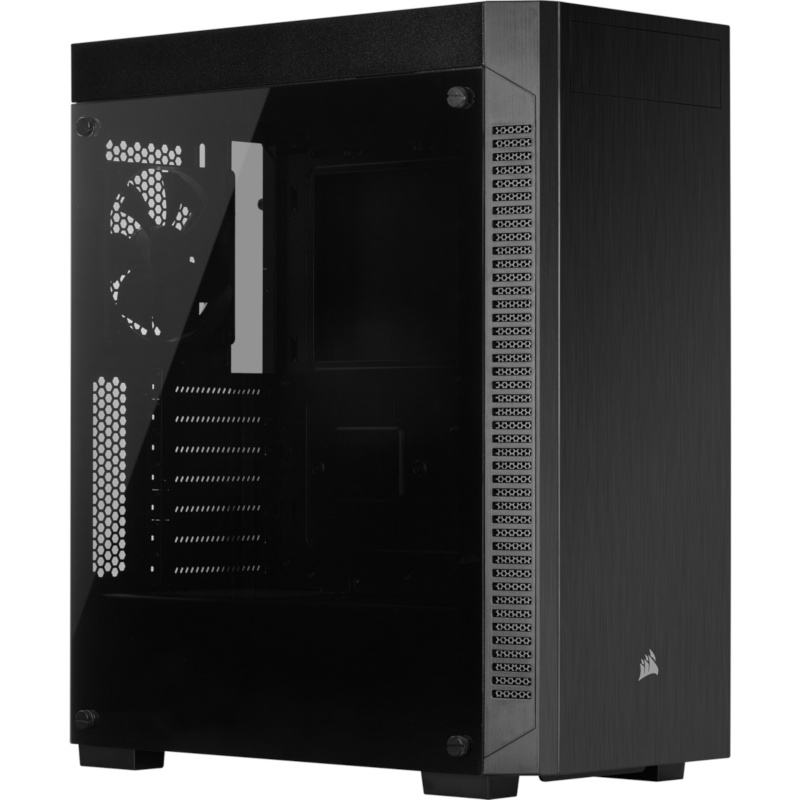

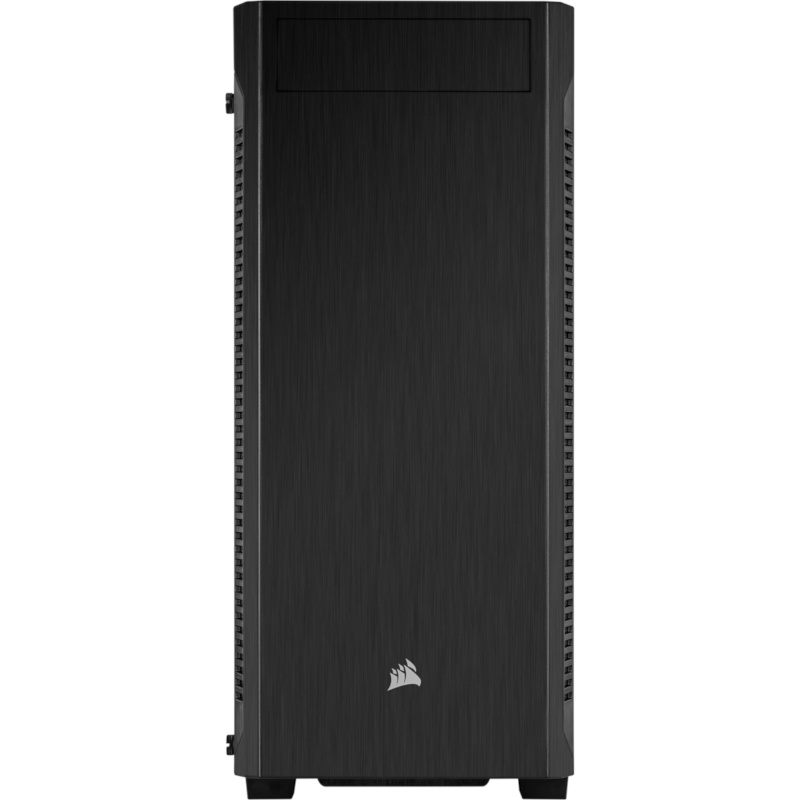

The Corsair 110R is a black mid-tower ATX case with a minimalist front and a 4mm tempered glass side panel. It is one of the few current cases that still includes a 5.25in external bay for an optical drive, alongside two 2.5in trays and two combined 3.5in/2.5in trays in a removable cage. It suits office and home PCs that need a DVD or Blu-ray drive, or anyone who wants an understated case that shows off the interior without lighting. Punch can build a new system into it.
Cooling

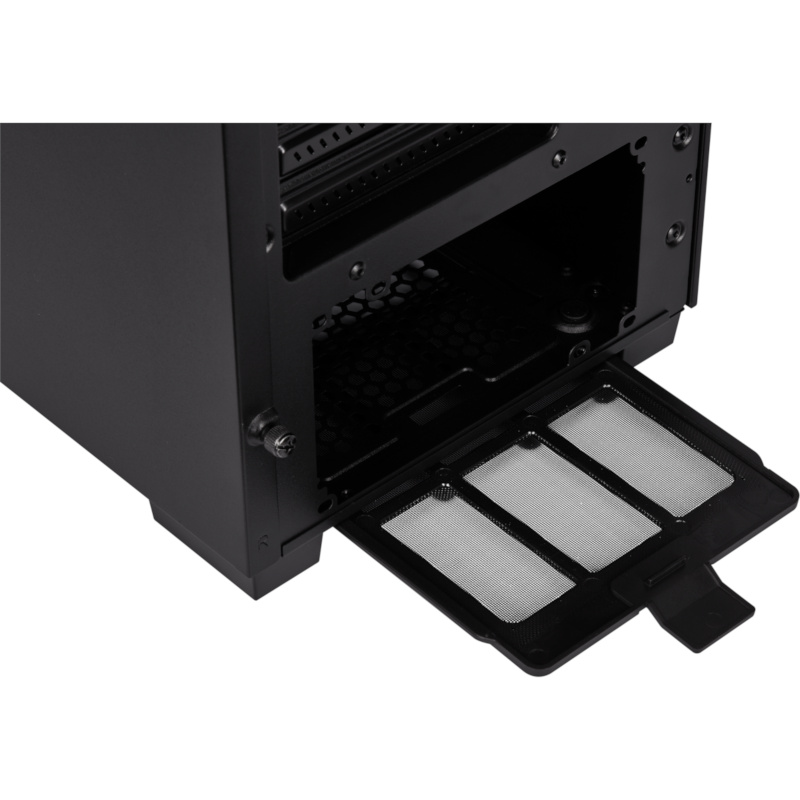

A single 120mm fan is supplied, and the case takes up to five 120mm or three 140mm fans in total. Radiators of 120mm, 140mm, 240mm, 280mm and 360mm are supported, so a standard all-in-one liquid cooler can be fitted. CPU air coolers up to 160mm tall are accepted. Removable dust filters in the floor and front keep the inside clean after the build is finished.
Storage and clearances

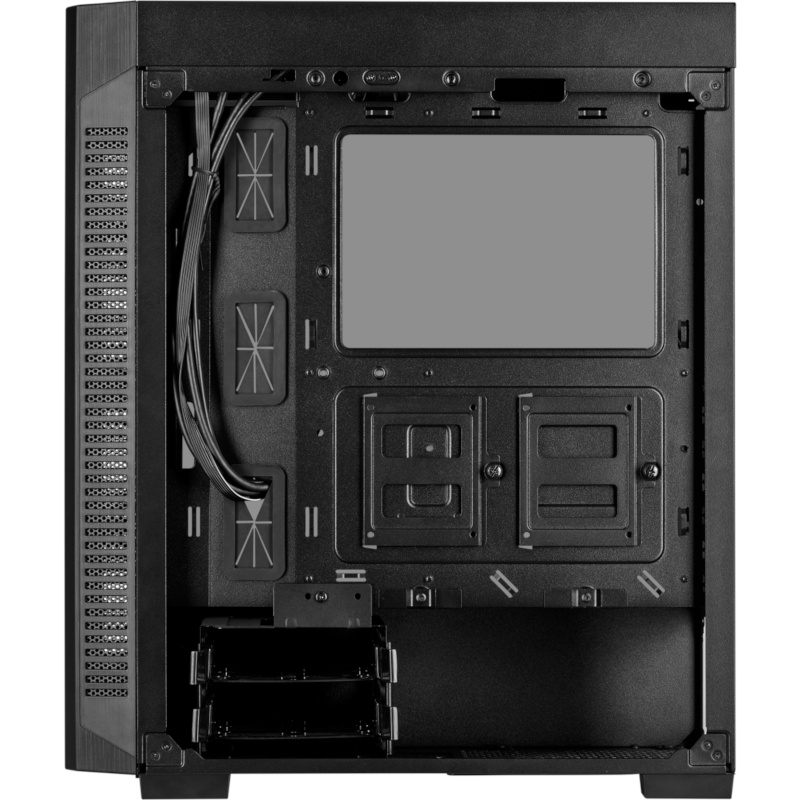

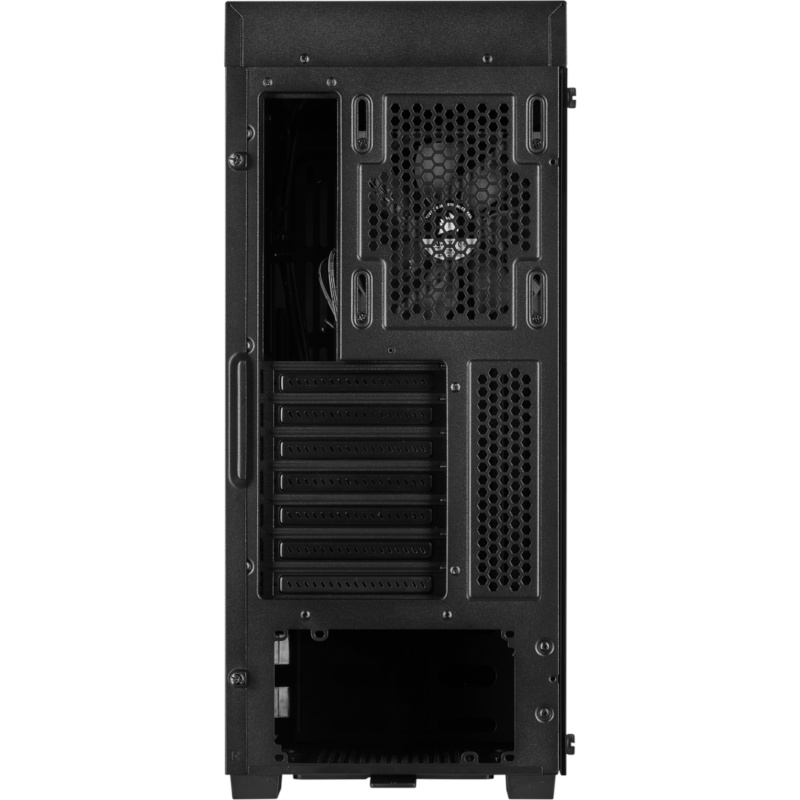

Storage is the strong point: two 2.5in SSD trays, two 3.5in/2.5in combo trays in a removable cage, and a 5.25in bay for an optical drive. Graphics cards up to 330mm long fit, which covers the majority of two- and three-fan cards, and power supplies up to 180mm long are supported. Seven expansion slots are provided.
Connectivity and build

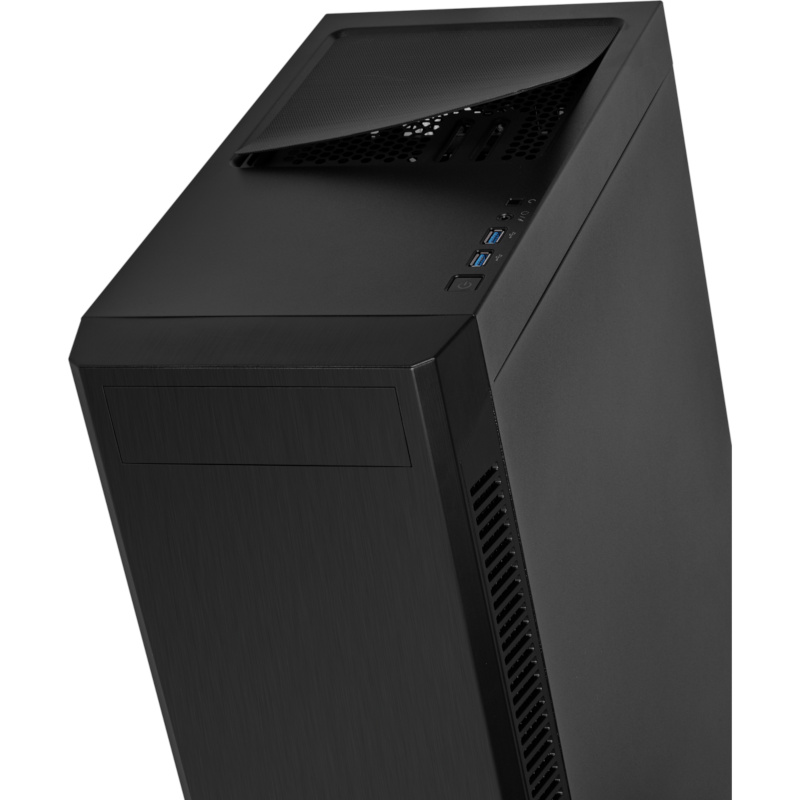

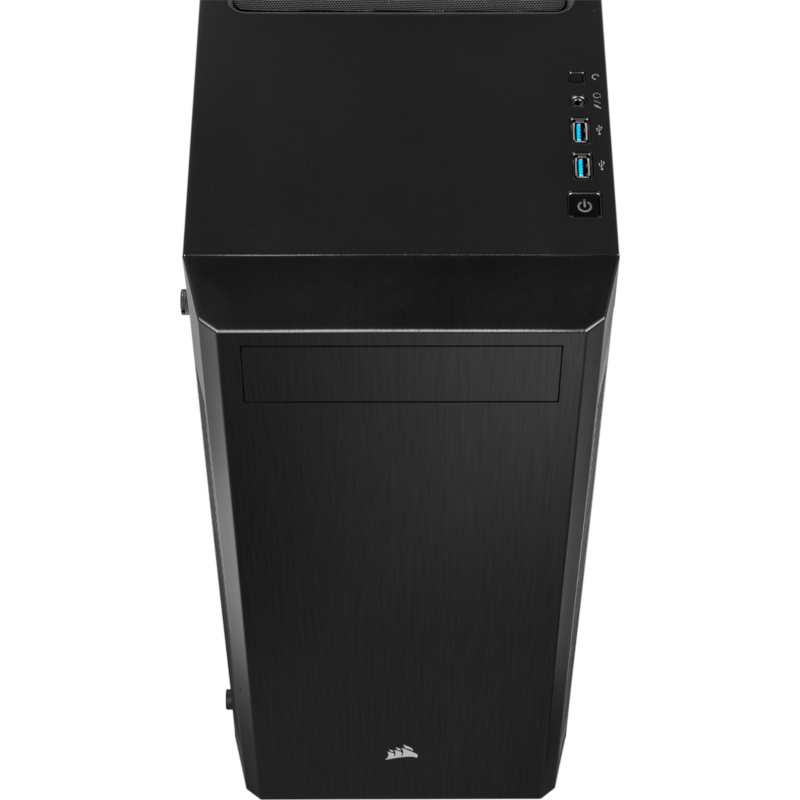

The front I/O panel has two USB 3.0 Type-A ports and a combined audio in/out jack. Steel construction with the thick glass panel gives a weight of 7kg empty. The 418mm length and 210mm width keep the footprint compact for an ATX tower.
Ideal for
- Home and office PCs that still need an optical drive
- Quiet, unlit builds with a clear view of the components
- Systems with up to four SATA drives
Specifications
- Case type: Mid tower
- Colour: Black
- Part number: CC-9011183-WW
- Motherboard support: ATX
- Dimensions (L x W x H): 418 x 210 x 480 mm
- Side panel: 4 mm tempered glass
- Fans included: 1 x 120mm
- Fan mounts: Up to 5 x 120mm or 3 x 140mm
- Radiator support: 120mm, 140mm, 240mm, 280mm, 360mm
- Max graphics card length: 330 mm
- Max CPU cooler height: 160 mm
- Max PSU length: 180 mm (ATX)
- Drive bays: 2 x 2.5in, 2 x 3.5in/2.5in combo, 1 x 5.25in
- Expansion slots: 7
- Front I/O: 2 x USB 3.0 Type-A, 1 x audio in/out
- Dust filters: Front and floor
- Weight: 7 kg
