Cooler Master MasterBox TD500 Mesh V2 ARGB Case White
The second-generation TD500 Mesh in white, with a polygonal mesh front, three ARGB fans and a USB-C port added.

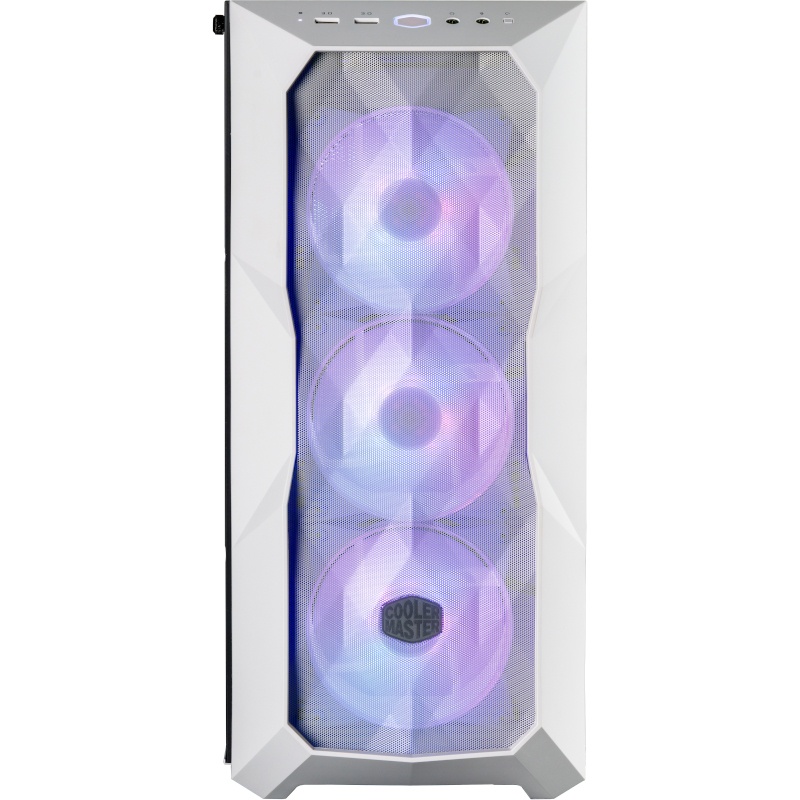

The Cooler Master MasterBox TD500 Mesh V2 is a white mid-tower case that supports everything from Mini-ITX up to E-ATX and SSI-CEB motherboards. Its defining feature is the front panel: a three-dimensional polygonal FineMesh that lets air straight through while filtering dust, lit from behind by three 120mm CF120 ARGB fans. The V2 revision adds a USB 3.2 Gen 2 Type-C port to the I/O, a fully removable top panel and a tool-free crystalline tempered glass side. It suits gaming builds where airflow and looks carry equal weight, and Punch can build a new system into it.
Cooling and airflow
Three CF120 ARGB fans are fitted at the front, and the case takes up to seven 120mm fans in total: three at the front, three in the roof and one at the rear (140mm fans fit in the front and roof too). Radiators up to 360mm can be mounted at the front or top, with a 120mm position at the rear. The included controller manages the ARGB lighting independently of the motherboard and adds four extra fan headers, or the lighting can be handed to the motherboard’s software instead.
Clearances and storage
Graphics cards up to 410mm long fit, and CPU air coolers up to 165mm tall. Power supplies up to 200mm are accepted, though Cooler Master recommends 170mm or less for comfortable cabling. Storage covers two 3.5in bays and three 2.5in mounts alongside seven expansion slots.
Build and connectivity
The exterior combines steel, mesh and plastic with the tempered glass left panel, which lifts off without tools. Removing the top panel opens the roof completely, which makes fitting a radiator or routing cables much easier. The front I/O has two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port and a combined audio jack.
Ideal for
- White-themed gaming builds with visible ARGB lighting
- Systems with a 360mm all-in-one liquid cooler
- E-ATX or SSI-CEB workstation boards in a mid-tower footprint
Specifications
- Case type: Mid tower
- Colour: White
- Model number: TD500V2-WGNN-S00
- Materials: Steel, mesh and plastic exterior; tempered glass left panel
- Motherboard support: Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX (up to 12 x 10.7in)
- Dimensions: 499 x 210 x 500 mm including protrusions; 430 x 210 x 477 mm excluding
- Fans included: 3 x 120mm CF120 ARGB (front)
- Fan mounts: Front 3 x 120mm or 2 x 140mm; top 3 x 120mm or 2 x 140mm; rear 1 x 120mm
- Radiator support: Front and top 120/140/240/280/360mm; rear 120mm
- Max graphics card length: 410 mm
- Max CPU cooler height: 165 mm
- Max PSU length: 200 mm (170 mm recommended)
- Drive bays: 2 x 3.5in, 3 x 2.5in
- Expansion slots: 7
- Front I/O: 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x audio jack
- Included controller: ARGB lighting control with 4 additional fan headers
