High performance for serious 4K video editing
This value plus video editing system offers a major step up in a number of key areas. The memory is increased to 64GB which is ideal for editing in 4k, even lengthy and complex content can be processed without issue. This system also utilises the high performance ADATA SX8200 Pro drives for both the application drive and your scratch drive which boosts performance and SSD capacity is also increased by a useful amount.
This system uses the new AMD Ryzen 7 5800X which performs better in most video editing situations than the Intel i9-10900K due to the higher IPC and inclusion of 8 processor cores and 16 threads and the inclusion of a larger processor cache. As the Intel processor has the advantage in core count and the inclusion of the Intel hardware H264 encoder called quick sync, some tasks can still perform better with Intel but some will perform better with this AMD processor. The high performance cooling ensures performance remains at maximum for extended periods of time.
The power supply is also improved with the inclusion of the 650w modular unit. This power supply is very efficient and provides high quality and stable output even under very heavy loads and copes well with sudden power demands. The PSU fan is a large 135mm unit which can vary the fan speed according to demand therefore keeping noise to a minimum.
The superb Be Quiet! Pure Base 600 chassis is also a worth mentioning as the chassis quality takes a big step forward from the cheaper models. Every aspect of the chassis feels better both internally and externally. The system can accept a total of 4 SATA drives by providing capacity for 4 in any combination of 3.5″ drives 2.5″ drives. Also, the motherboard we use can support 2 x M.2 high-performance SSDs so in total you can use six storage drives in this system. It is also possible to configure a further three 3.5″ or 2.5″ storage drives. To add further storage drives to your PC in the configurator, hit the ‘Add Another’ button to the right-hand side of the primary storage drive header. Alternatively, contact us for a quote with additional storage options.
Take a look at our blogs to find out more about how your choice of PC components affects your overall system performance in Premier Pro.
8 Core Ryzen CPU
RTX 3070 8GB GPU with 8GB GDDR6 memory
Specification
Processor
- AMD Ryzen 7 5800X 3.8Ghz
- Max Turbo Frequency 4.7Ghz
- Cache: 36MB
- Corsair H100x Liquid Cooler Installed
Memory
- 64GB DDR4 3200Mhz RAM
- Dual Channel – 4 x 16GB
- Supports up to 64GB
- 4 x DIMM sockets (4 Used)
Hard Drive
- 512GB ADATA SX8200 PRO NVMe M.2 SSD
- 1TB ADATA SX8200 PRO NVMe M.2 SSD
- 2 x M.2 sockets, 0 free
- 4TB Seagate BarraCuda 3.5″ Hard drive
- 6 SATA Ports, 4 free (2 Used for DVDRW & 4TB HDD)
Optical Drive
- Asus DVD Re-Writer, SATA, 24x, M-Disk Support
- 2 x Optical Bays, 1 free
Software
- Windows 11 Home 64-bit
- Clean install, no additional software
Chipset
- AMD B550 Chipset
- Motherboard is Gigabyte B550 AORUS PRO AX
Display Outputs
- 3 x DisplayPort 1.4
- 1 x HDMI 2.0b
- Supports up to 4 monitors at once
- Supports HDCP
Graphics
- NVidia RTX 3070 8GB
Audio
- High Definition Audio, 5.1 or 7.1 channel
- Audio provided by Realtek ALC1220-VB Audio Chip on the motherboard
- High performance WIMA Capacitors
Input Devices
- No Keyboard or Mouse Included
Wired Networking
- Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Networking
- Intel WiFi 6 AX200 Dual Band
- Speeds up to 2400mbps
- Bluetooth 5.0
Power Supply
- 650 Watts High Efficiency
- Up to 85% efficiency
Dimensions
- Height: 470mm
- Width: 220mm
- Depth: 492mm

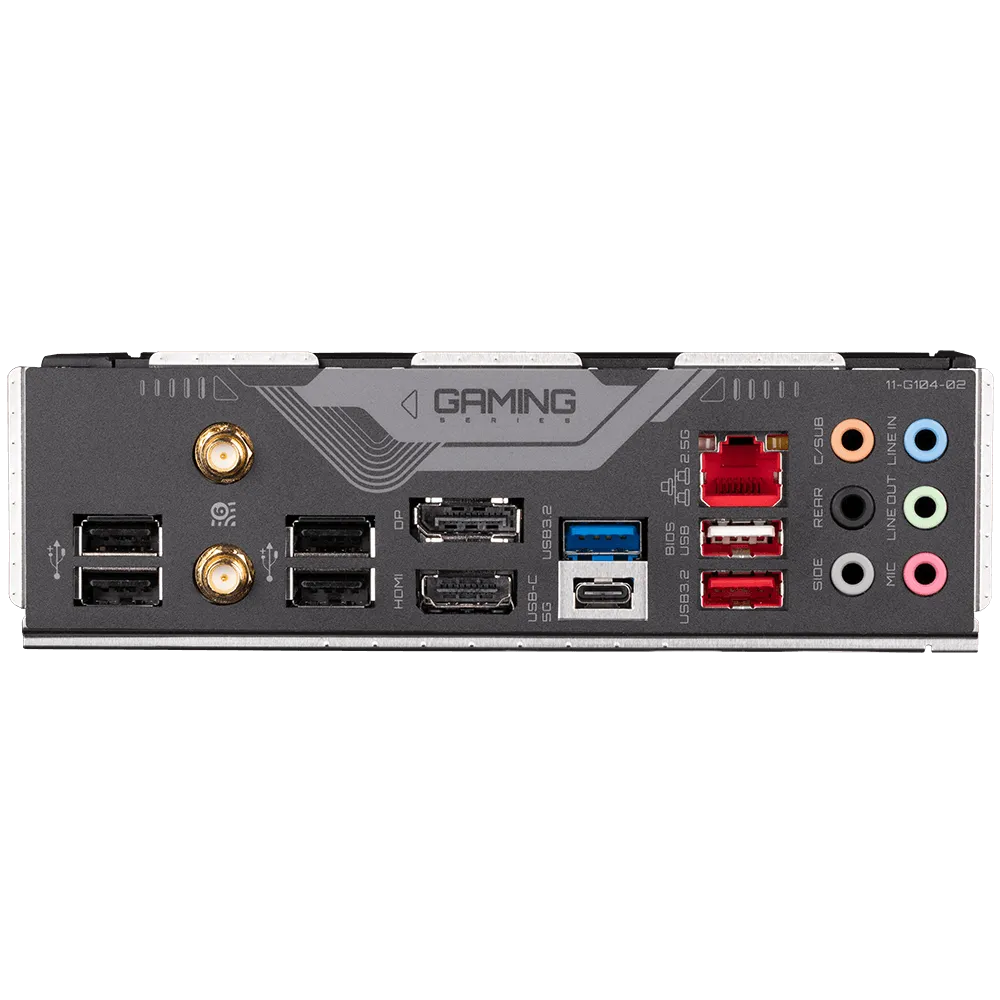

Interfaces
- 6 x USB 2.0 Port (rear)
- 4 x USB 3.1 Port (2 front, 2 rear)
- 2 x USB 3.1 Gen 2 Type-A Port (rear)
- 1 x USB 3.1 Gen 2 Type-C Port (rear)
- 1 x RJ-45 Ethernet Port
- 6 x Audio Jacks at the rear, inc. S/PDIF
- 2 x Audio Jacks at the front
- 3 x DisplayPort 1.4 on video card
- 1 x HDMI 2.0b on video card
Note the display outputs from the motherboard are disabled when a graphics card is installed
Expansion
- 3 x PCI-e x 16 Slots, 2 free (1 x Used for video card)
- 2 x PCI-e x 1 Slots, 1 free (1 obscured by graphics card)
Case
- Be Quiet! Pure Base 600 Silent Black ATX Case
- 1 x 120mm & 1 x 140mm Pre-installed fans
- Space for 4 additional 120mm fans
- Space to accept 120,140,240,280 or 360mm liquid coolers
Warranty
- 3 Year Return to Base parts and labour
- 1st 30 days collect and return at our expense
- Be Quiet! Pure Base 600 Black Case
- AMD Ryzen 7 5800X 3.8GHz 8 Core CPU – 4.7GHz Turbo
- Gigabyte B550 AORUS PRO AX Motherboard with USB Type-C
- NVidia GeForce RTX 3070 8GB GDDR6 LHR GPU
- 64GB CORSAIR VENGEANCE LPX 3200MHz (4x16GB)
- 512GB ADATA SX8200 PRO M.2 NVMe (3500MB/R, 2300MB/W) – 6x faster than SATA SSD
- 1TB ADATA SX8200 PRO M.2 NVMe (3500MB/R, 3000MB/W) – 6x faster than SATA SSD
- 4TB Seagate BarraCuda 3.5″ Hard Drive
- Corsair Hydro Series H100x 240mm Processor Liquid Cooler
- Contour 650W High Efficiency ATX PSU
- Built in Wi-Fi and Bluetooth with the Motherboard
- 24x SATA Internal DVDRW with M-Disk Support (ASUS DRW-24D5MT) Black
- Integrated Sound Card On The Motherboard
- Microsoft Windows® 11 Home | For delivery on or after October 5th 2021
