Motherboard Bundle – R5 5600G, 16GB, 250GB, A520

Get the ultimate performance with our AMD Ryzen 5 5600G Motherboard Bundle. This all-in-one package includes:

• • AMD Ryzen 5 5600G: With 6 cores and 12 threads, this processor delivers exceptional performance for both work and play. It’s unlocked for overclocking, allowing you to push the limits.

• • 16GB Corsair Vengeance LPX RAM: Enjoy smooth multitasking and faster application loading times with 16GB of high-speed DDR4 memory.

• • 250GB Kingston NVMe SSD: The ultra-fast NVMe SSD ensures rapid boot times, quick file transfers, and seamless gaming experiences.

• • Gigabyte A520M S2H Motherboard: This reliable motherboard supports AMD Ryzen 5000 Series processors and offers dual-channel memory support.

Whether you’re a gamer, content creator, or productivity enthusiast, our Ryzen 5 5600G bundle provides the perfect foundation for your next PC build. Plus, with XMP enabled, you’ll get the most out of your RAM.

Upgrade your system today and experience the power of Punch Technology’s motherboard bundles!

Feel free to explore more details on the Punch Technology website. If you have any other requests or questions, feel free to ask!

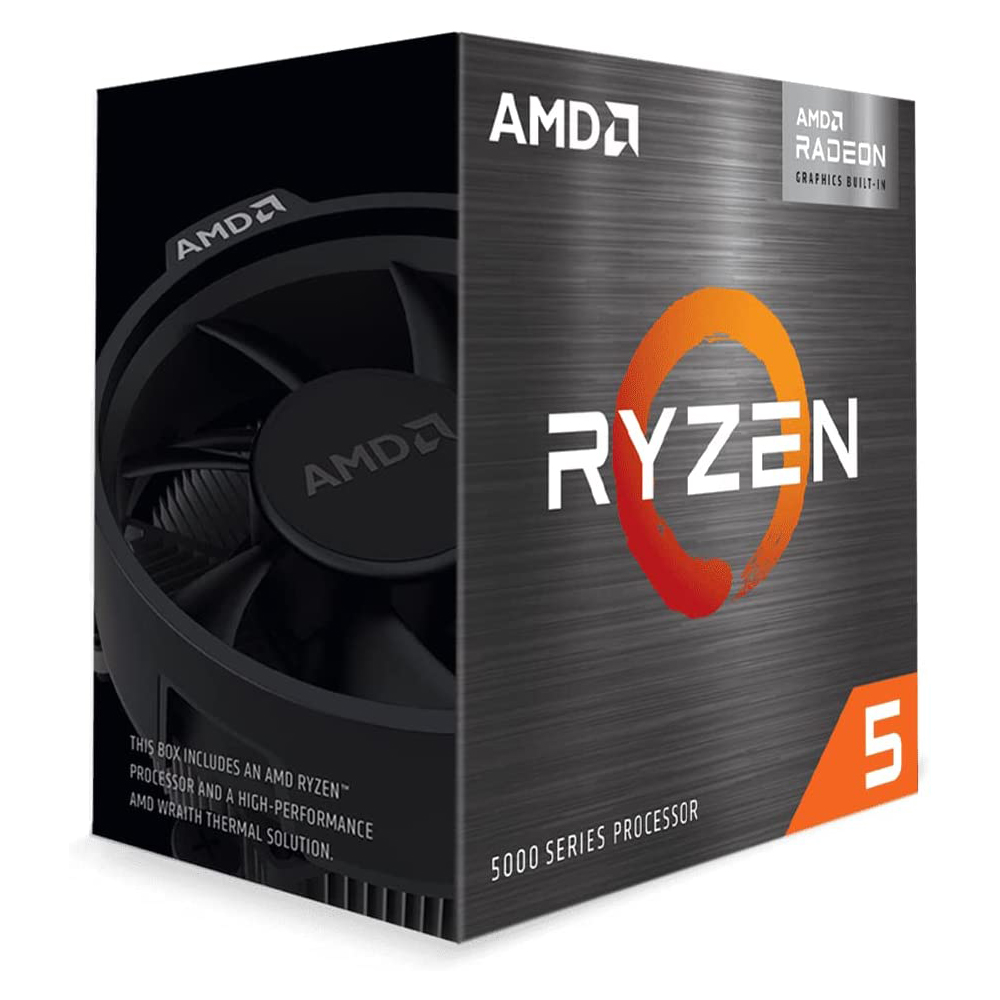

AMD Ryzen 5 5600G

• Cores: 6
• Threads: 12
• Base Clock: 3.9GHz
• Max. Boost Clock: 4.4GHz
• TDP: 65W
• Unlocked for Overclocking: Yes

16GB Corsair Vengeance LPX RAM

• 16GB
• 3200 MHz
• 2x 8GB DDR4 DIMMS
• 2x DDR4 DIMM Sockets – none free

• CPU
  1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

  (Please refer “CPU Support List” for more information.)
• Chipset
  1. AMD A520



• Memory
  1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  2. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
     * ECC memory (ECC mode) support varies by CPU
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)
• Onboard Graphics

  Integrated Graphics Processor:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
     * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

  Support for up to 3 displays at the same time
  Maximum shared memory of 16 GB
• Audio
  1. Realtek^® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.



• LAN
  1. Realtek^® GbE LAN chip (1000 Mbit/100 Mbit)



• Expansion Slots

  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

  Chipset:

  1. 2 x PCI Express x1 slots, supporting PCIe 3.0



• Storage Interface

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

  Chipset:

  1. 4 x SATA 6Gb/s connectors
  2. Support for RAID 0, RAID 1, and RAID 10



• USB

  CPU:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

  Chipset:

  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)



• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 1 x M.2 Socket 3 connector
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  14. 1 x serial port header
  15. 1 x speaker header
  16. 1 x chassis intrusion header
  17. 1 x Clear CMOS jumper

  ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
• Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 4 x USB 3.2 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 1 x Q-Flash Plus button
  9. 3 x audio jacks



• I/O Controller
  1. iTE^® I/O Controller Chip



• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the fan you install.



• BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install



• Bundled Software
  1. Norton^® Internet Security (OEM version)
  2. Realtek^® 8118 Gaming LAN Bandwidth Control Utility



• Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit



• Form Factor
  1. Micro ATX Form Factor; 24.4cm x 20.5cm

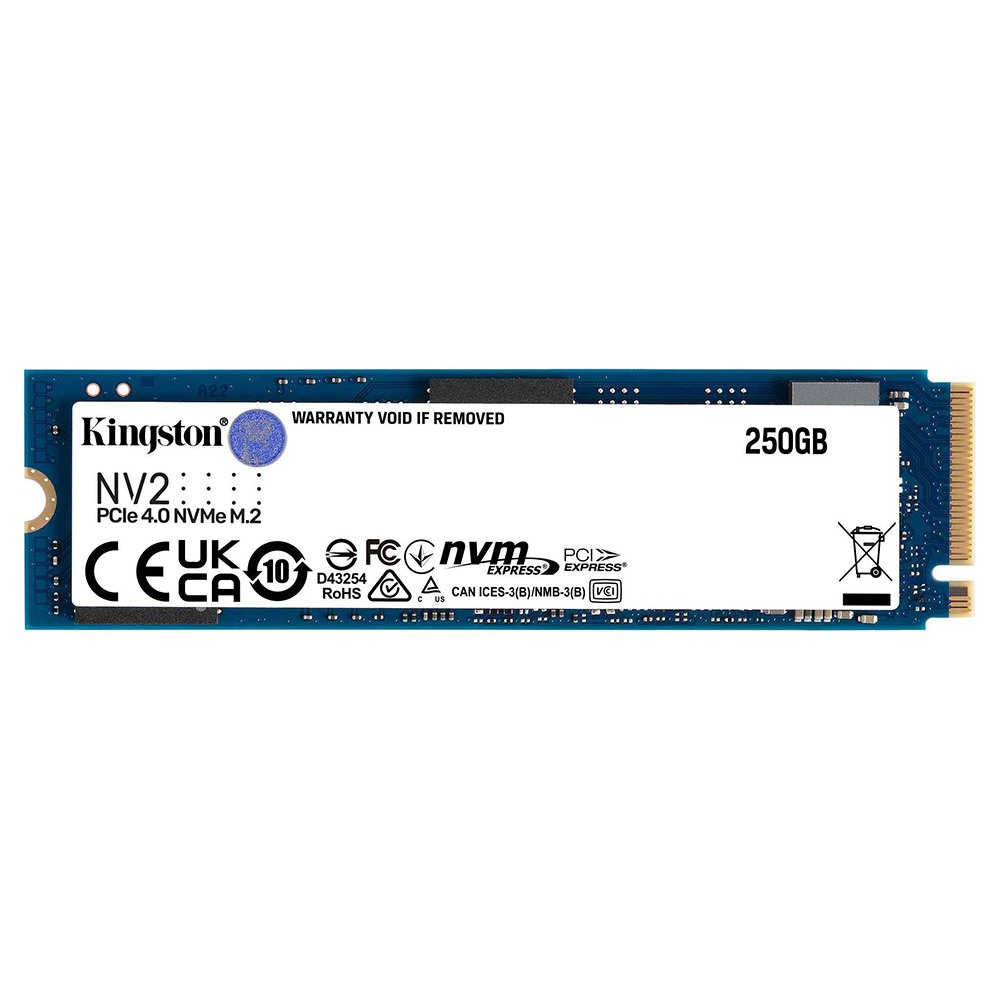

Kingston 250GB NVMe SSD

• 250GB
• Read: 3,000 MS/s
• Write 1,300 MB/s
• Part Number: SNV2S/250G

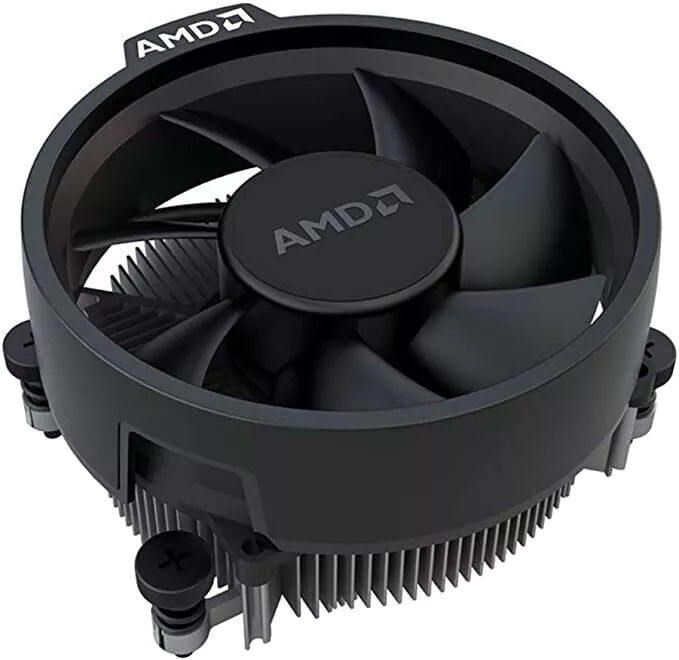

AMD Wraith Stealth Cooler

Heatsink

• Form Factor: Low Profile
• Socket Compatibility: AM4 ; AM5
• Heatsink Weight: 181 g
• Cold Plate Material: N/A
• Maximum TDP: 65 W
• Height (with fan): 101 mm
• Included Thermal Paste: Yes

Fans
