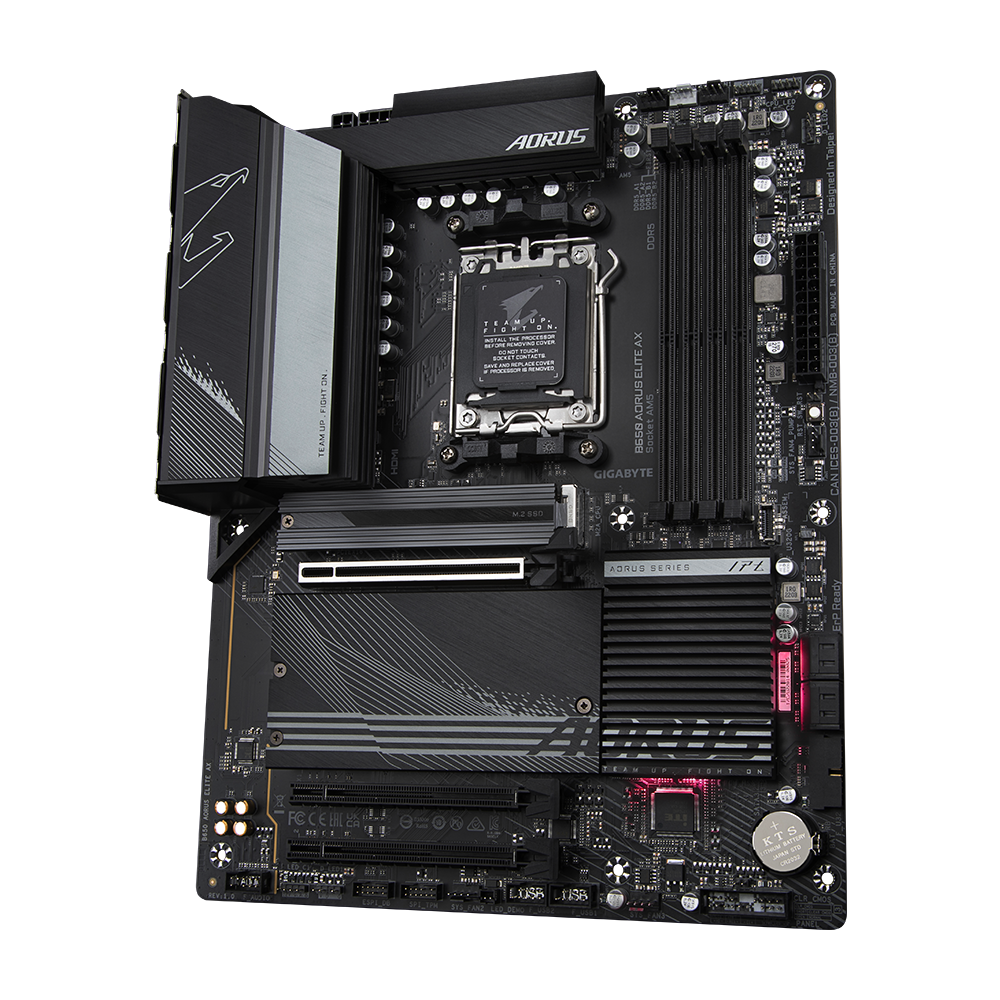

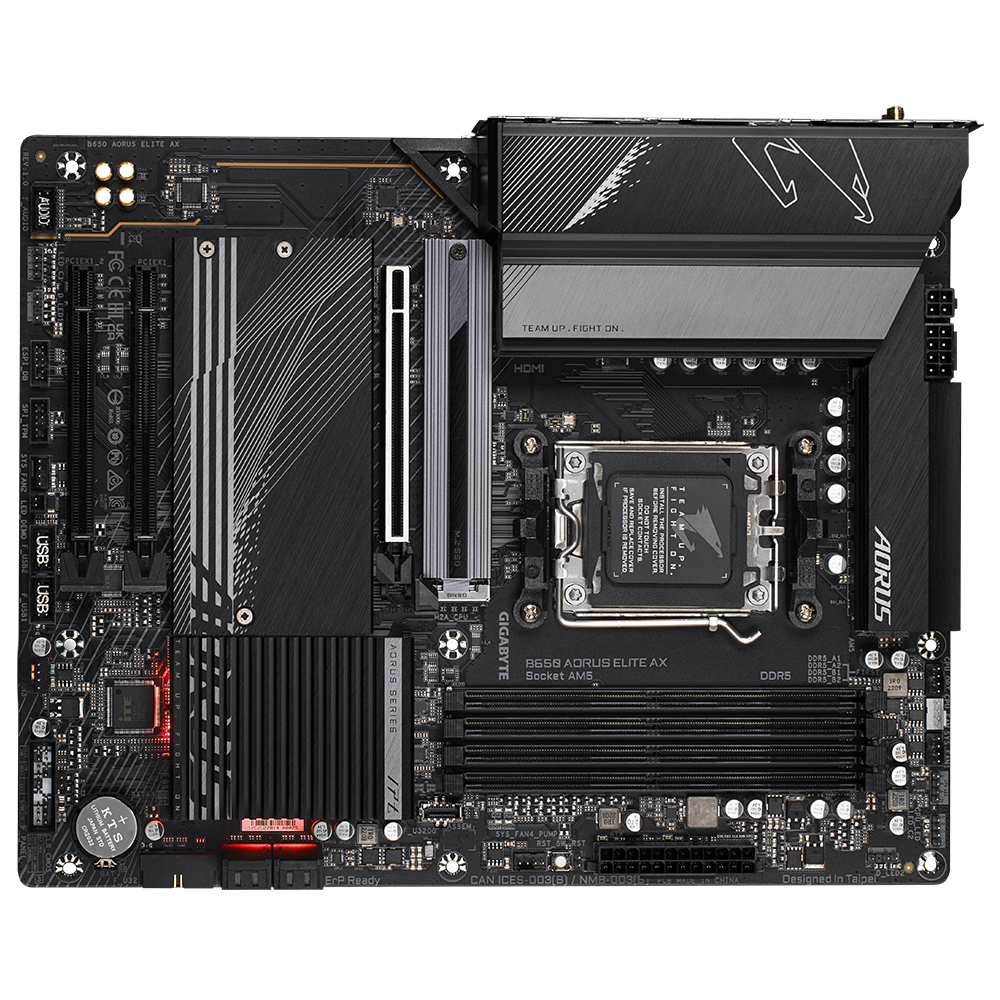

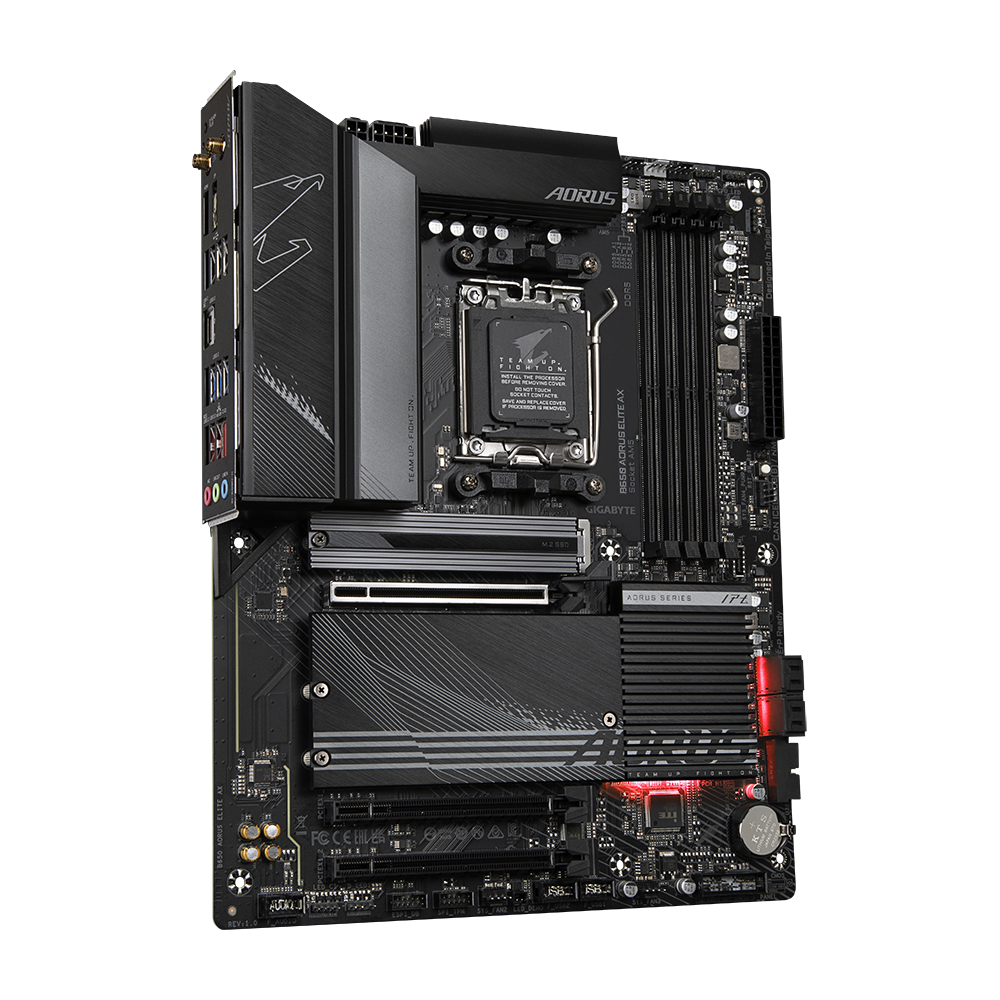

Gigabyte B650 AORUS Elite AX V2 ATX AM5 Motherboard
A well-rounded ATX AM5 board with a PCIe 5.0 M.2 slot, Wi-Fi 6E, 2.5Gb LAN and a 12+2+2 phase VRM for Ryzen 7000, 8000 and 9000 processors.
The Gigabyte B650 AORUS Elite AX V2 is the mid-range AM5 option for gamers and creators who want a full ATX layout without paying for X670. It supports the whole AM5 range from Ryzen 7000 to Ryzen 9000, with four DDR5 slots that take up to 256GB and run at up to 8000 MT/s using AMD EXPO or Intel XMP profiles. The twin 12+2+2 phase digital VRM sits under substantial heatsinks, so it copes with a Ryzen 9 under sustained load. Punch can fit it in a new build with a matched cooler and memory.
Storage and expansion
Three M.2 slots are provided: the primary CPU-fed slot supports PCIe 5.0 x4 with a Ryzen 7000 or 9000 processor, a second CPU slot runs at PCIe 4.0 x4 and a chipset slot adds another PCIe 4.0 x4. All three accept drives up to 25110 length and sit under Gigabyte’s M.2 Thermal Guard heatsinks. Four SATA 6Gb/s ports with RAID support remain for bulk storage. The main PCIe 4.0 x16 slot is reinforced and uses the EZ-Latch quick release; two further x16-length slots wired at PCIe 3.0 x1 take sound, capture or network cards.
Connectivity
The rear panel is generous: a USB Type-C 3.2 Gen 2 port, two red USB 3.2 Gen 2 Type-A ports, five USB 3.2 Gen 1 ports and four USB 2.0 ports, plus DisplayPort 1.4 and HDMI 2.1 for the processor’s integrated Radeon graphics, a Realtek 2.5Gb Ethernet port, two Wi-Fi antenna connectors and three audio jacks. Wi-Fi 6E with Bluetooth 5.3 is fitted (Realtek RTL8852CE or Intel AX210 depending on PCB revision). Front-panel headers add a USB 3.2 Gen 2×2 Type-C, two Gen 1 and four USB 2.0 ports.
Cooling and lighting
Six fan and pump headers (CPU, CPU/pump, three system, system/pump) with water-flow detection, three addressable Gen 2 RGB headers, one RGB header, a reset button and Q-Flash Plus for updating the BIOS without a CPU installed round out a board that is easy to build and maintain.
Ideal for
- Ryzen 7 and Ryzen 9 gaming PCs on AM5
- Creator systems that want PCIe 5.0 NVMe storage and 2.5Gb LAN
- Builders who want Wi-Fi 6E and plenty of rear USB without X670 pricing
Specifications
- Chipset: AMD B650
- Socket: AM5, AMD Ryzen 7000 / 8000 / 9000 Series
- Form factor: ATX, 30.5 x 24.4 cm
- Memory: 4 x DDR5 DIMM, max 256GB (64GB per DIMM), up to 8000 MT/s (OC), dual channel, AMD EXPO and XMP
- Expansion slots: 1 x PCIe 4.0 x16 (CPU; x8 with Ryzen 8000 Phoenix 1, x4 with Phoenix 2), 2 x PCIe 3.0 x16 at x1 (chipset)
- M.2: M2A_CPU PCIe 5.0 x4 (Ryzen 7000/9000; PCIe 4.0 with Ryzen 8000), M2B_CPU PCIe 4.0 x4, M2C_SB PCIe 4.0 x4; all type 25110/22110/2580/2280
- SATA: 4 x SATA 6Gb/s, RAID 0/1/10
- LAN: Realtek 2.5GbE
- Wireless: Wi-Fi 6E 2.4/5/6GHz 160MHz (Realtek RTL8852CE rev 1.0 or Intel AX210 rev 1.1), Bluetooth 5.3
- Audio: Realtek high-definition audio codec, 2/4/5.1/7.1-channel
- Rear USB: 1 x USB Type-C 3.2 Gen 2, 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1, 4 x USB 2.0
- Video outputs: 1 x DisplayPort 1.4 (3840 x 2160 at 144Hz), 1 x HDMI 2.1 (4096 x 2160 at 60Hz)
- Internal USB: 1 x USB Type-C header (3.2 Gen 2×2), 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
- Fan headers: 1 x CPU, 1 x CPU/pump, 3 x system, 1 x system/pump
- Power: 1 x 24-pin ATX, 1 x 8-pin and 1 x 4-pin ATX 12V
- Lighting: 3 x addressable RGB Gen 2 headers, 1 x RGB header
- Other: Q-Flash Plus button, reset button, TPM header, 256Mbit BIOS
