Corsair iCUE SP120 RGB Pro 120mm Fan Black
A static-pressure 120mm fan with eight hub-mounted RGB LEDs, sold singly to extend a Corsair iCUE lighting setup.

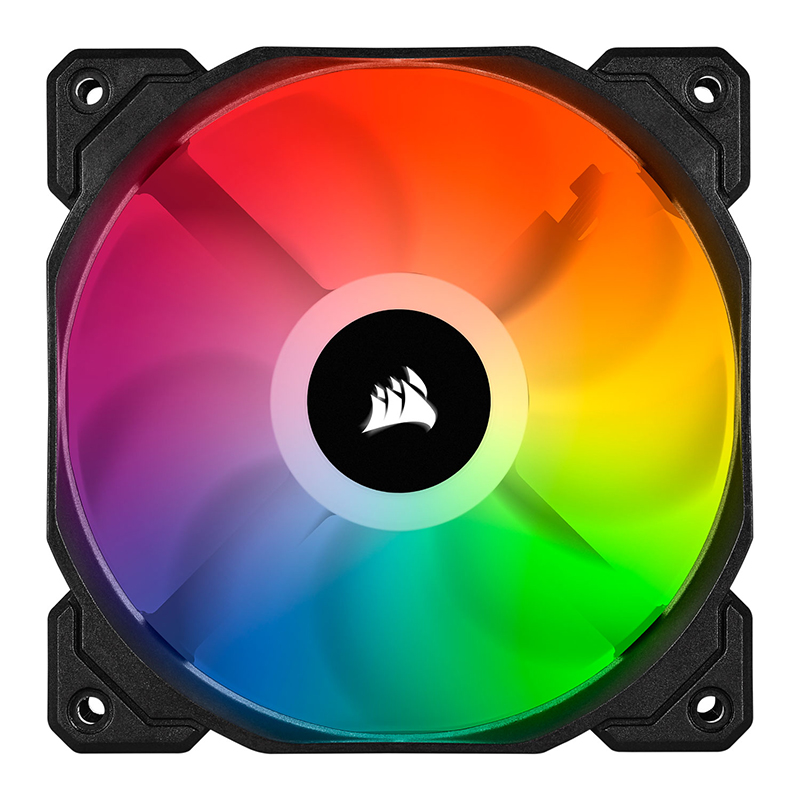

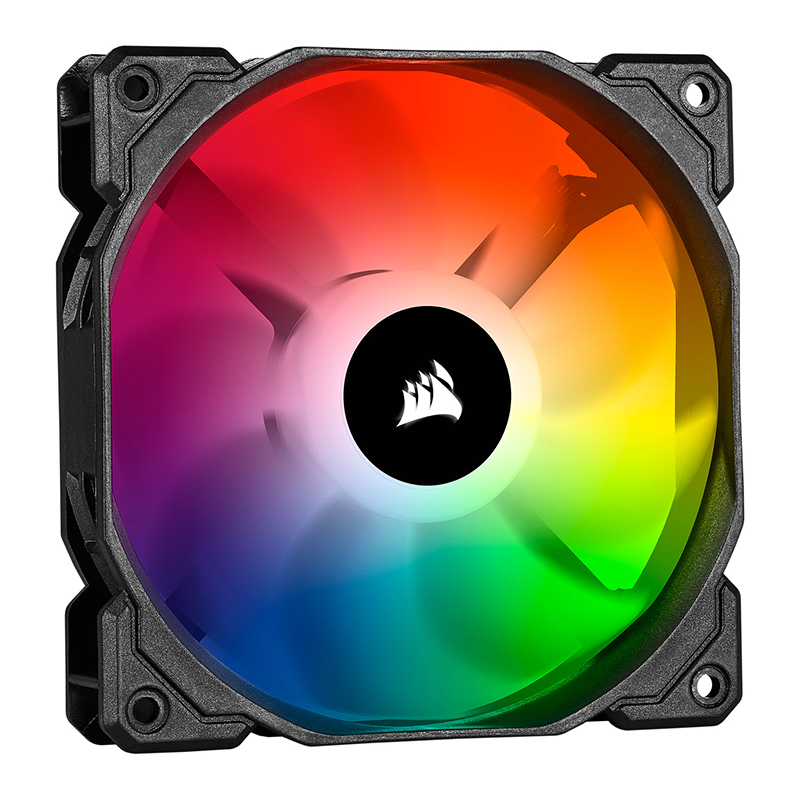

The iCUE SP120 RGB Pro is Corsair’s mid-range static pressure fan, tuned to push air through radiators and restrictive front panels rather than for open case airflow alone. Eight individually addressable RGB LEDs sit in the hub and light the translucent blades from the centre out. This single pack is intended as an add-on for systems that already have a Corsair Lighting Node Core or Lighting Node Pro, typically from an SP RGB Pro triple pack or a Corsair case; the lighting will not run without one of those controllers.
Airflow and noise
The fan spins at up to 1400 rpm, moving 52 CFM at 1.45 mm-H2O with a quoted 26 dB(A). It is a 3-pin DC fan rather than a PWM fan, so speed control depends on a motherboard header or fan controller that can vary the supply voltage. The hydraulic bearing keeps it quiet, and it draws 0.3 A.
Connectivity
The fan lead plugs into a motherboard fan header and the lighting lead into a Corsair RGB lighting controller. Once connected, the eight LEDs appear in iCUE and take part in the same effects as the rest of the set. Four mounting screws are included.
Build quality
The black frame and translucent blades match the rest of Corsair’s SP RGB Pro range and its iCUE cases. Punch can fit it in a new build alongside a Corsair controller.
Ideal for
- Adding a fan to a Corsair SP RGB Pro set or iCUE case
- Radiator and front intake positions needing static pressure
- Filling a spare port on a Lighting Node Core
Specifications
- Model: Corsair iCUE SP120 RGB Pro Performance 120mm Fan, CO-9050093-WW
- Fan size: 120mm
- Flow type: Static pressure
- Speed: 1400 rpm
- Airflow: 52 CFM
- Static pressure: 1.45 mm-H2O
- Noise: 26 dB(A)
- Bearing: Hydraulic
- PWM control: No (3-pin)
- Power draw: 0.3 A
- Lighting: 8 individually addressable RGB LEDs
- Controller requirement: Corsair iCUE RGB lighting controller (Lighting Node Core or Pro), sold separately
- Package contents: 1 fan, 4 mounting screws
- Colour: Black
