Corsair iCUE H100i RGB Elite 240mm Liquid CPU Cooler Black
A 240mm all-in-one liquid cooler with quiet AF Elite fans and an RGB pump head, controlled through Corsair iCUE.

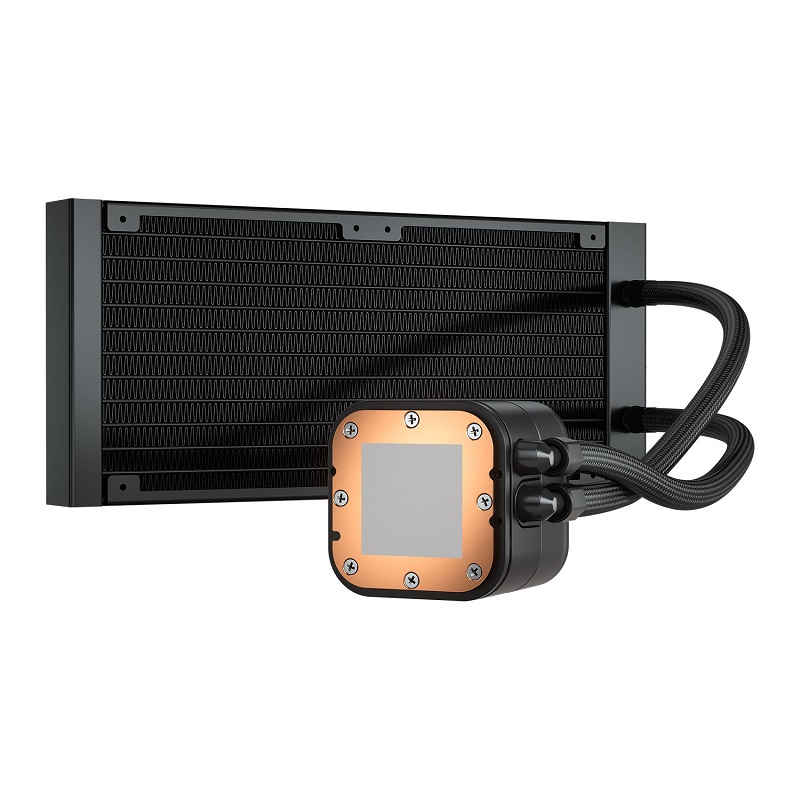

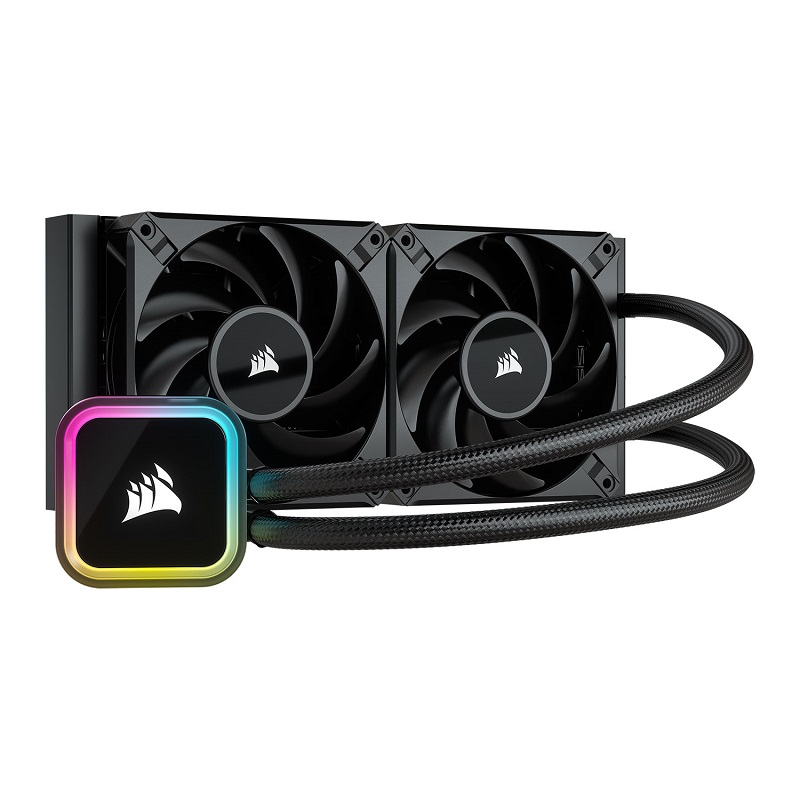

The iCUE H100i RGB Elite is Corsair’s mainstream 240mm closed-loop cooler. It pairs a copper cold plate and low-profile pump with a 27 mm thick aluminium radiator and two 120mm AF Elite fans, giving noticeably more cooling headroom than a mid-range air cooler while leaving the area around the CPU socket clear. It suits gaming PCs and workstations built on current and recent Intel and AMD desktop platforms, and the black finish with subtle pump-head lighting works in most build themes.
Cooling and noise
The AF Elite fans use fluid dynamic bearings and are PWM controlled from 400 to 1850 rpm, with Corsair quoting a noise range of 5 to 28.9 dB(A), airflow of 10.9 to 59.1 CFM and static pressure up to 1.93 mm-H2O. Fan and pump curves are set in iCUE, and a Zero RPM profile lets the fans stop completely when the coolant is cold. Thermal compound is pre-applied to the copper cold plate.
Compatibility
The mounting kit covers Intel LGA1700, LGA1200, LGA115x, LGA2066 and LGA2011, and AMD AM5, AM4, sTRX4 and sTR4. The radiator measures 277 x 120 x 27 mm before fans, so the case needs a 240mm radiator mount in the roof or front, and the 400 mm sleeved rubber tubing gives enough reach for either position.
Lighting and software

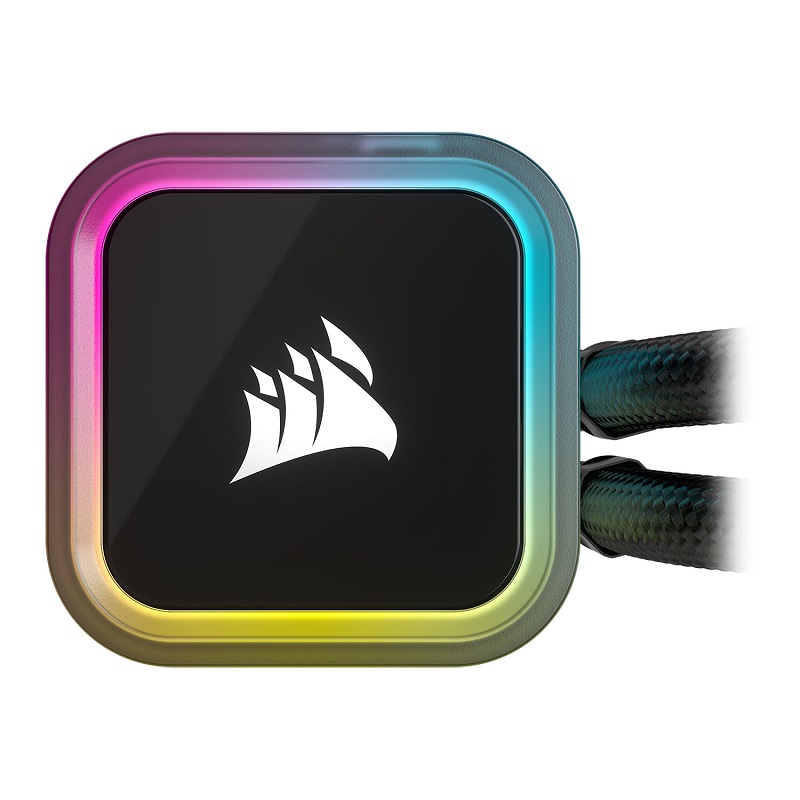

Sixteen individually addressable RGB LEDs sit in the pump cap and are driven by iCUE, which also synchronises lighting with other Corsair components and monitors coolant temperature. Punch can fit and configure this cooler as part of a new build.
Ideal for
- Gaming PCs where a 240mm radiator fits and quiet operation matters
- Builds already using Corsair iCUE fans, memory or cases
- Keeping the CPU socket area clear for tall memory and large VRM heatsinks
Specifications
- Model: Corsair iCUE H100i RGB Elite, CW-9060058-WW, Black
- Type: All-in-one liquid CPU cooler
- Radiator size: 240mm
- Radiator dimensions: 277 x 120 x 27 mm
- Radiator material: Aluminium
- Cold plate: Copper, pre-applied thermal compound
- Fans: 2 x AF Elite 120 x 25 mm PWM
- Fan speed: 400-1850 rpm (+/-10%)
- Airflow: 10.9-59.1 CFM
- Static pressure: 0.09-1.93 mm-H2O
- Noise: 5-28.9 dB(A)
- Tubing: 400 mm black sleeved low-permeation rubber
- Lighting: 16 RGB LEDs on pump head
- Software: Corsair iCUE
- Intel sockets: LGA1700, LGA1200, LGA115x, LGA2066, LGA2011
- AMD sockets: AM5, AM4, sTRX4, sTR4
- Weight: 2 kg (as stated by Corsair)
