Top of the range performance in AutoCAD and Revit 2023
Very high performance in AutoCad and Revit 2023 comes from utilising the fastest available processor, the fastest type of memory and a high performance professional graphics card.
When only the best will do, this system is the fastest on the market and will perform exceptionally well. If your workload is particularly heavy on 3D rendering tasks, consider upgrading the GPU, but otherwise this is an excellent system for all kinds of CAD workloads.
The 32GB of memory included with this PC is the new DDR5 standard of memory which offers higher performance than DDR4. The memory is high speed and operates at 5200MHz.
The graphics card is a PNY Quadro RTX A2000 12GB NVidia Professional GPU workstation graphics card. It is a model on the AutoCAD official support list and works well in both 2D and 3D models.
The PC has been designed to operate at high performance for extended periods of time and has powerful processor cooling to ensure you experience no drop off in performance. The cooling fans are of a low noise design too.
Specifications:
Processor
- Intel Core i9-14900KF 3.2Ghz 24 Core CPU
- Max Turbo Frequency: 6Ghz
- Cache: 36MB
- Be Quiet! Pure Loop 240mm Cooler Installed
Memory
- 32GB DDR5 5200Mhz RAM
- Dual Channel – 2 x 16GB
- Supports up to 128GB
- 4 x DIMM sockets (2 Used)
Hard Drive
- 1TB Samsung 980 Pro M.2 PCIe Gen 4 NVMe SSD
- 4TB Seagate IronWolf Pro 3.5″ Hard drive
- 5 x M.2 Slot, 4 free
- 4 SATA Ports, 2 free (2 Used for DVD-RW and HDD)
Optical Drive
- Asus DVD Re-Writer, SATA, 24x, M-Disk Support
- 2 Optical Bays (1 free)
Software
- Windows 11 Professional 64-bit
- Clean install, no additional software
Chipset
- Intel Z790 Chipset
Display Outputs
- 4 x mini-DisplayPort
- Supports up to 5 monitors at once via DisplayPort 1.2 MST
- Supports HDCP
Graphics
- PNY Quadro RTX A2000 12GB NVidia Professional GPU with 10 bit colour
Audio
- High Definition Audio, 5.1 or 7.1 channel
- Audio provided by Realtek ALC1220-VB Audio Chip on the motherboard
Input Devices
- No Keyboard or Mouse Included
Wired Networking
- Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Networking
- Intel Wifi 6E AX supporting 2.4/5/6 GHz Tri-Band
- Bluetooth 5.3
Power Supply
- 750 watts

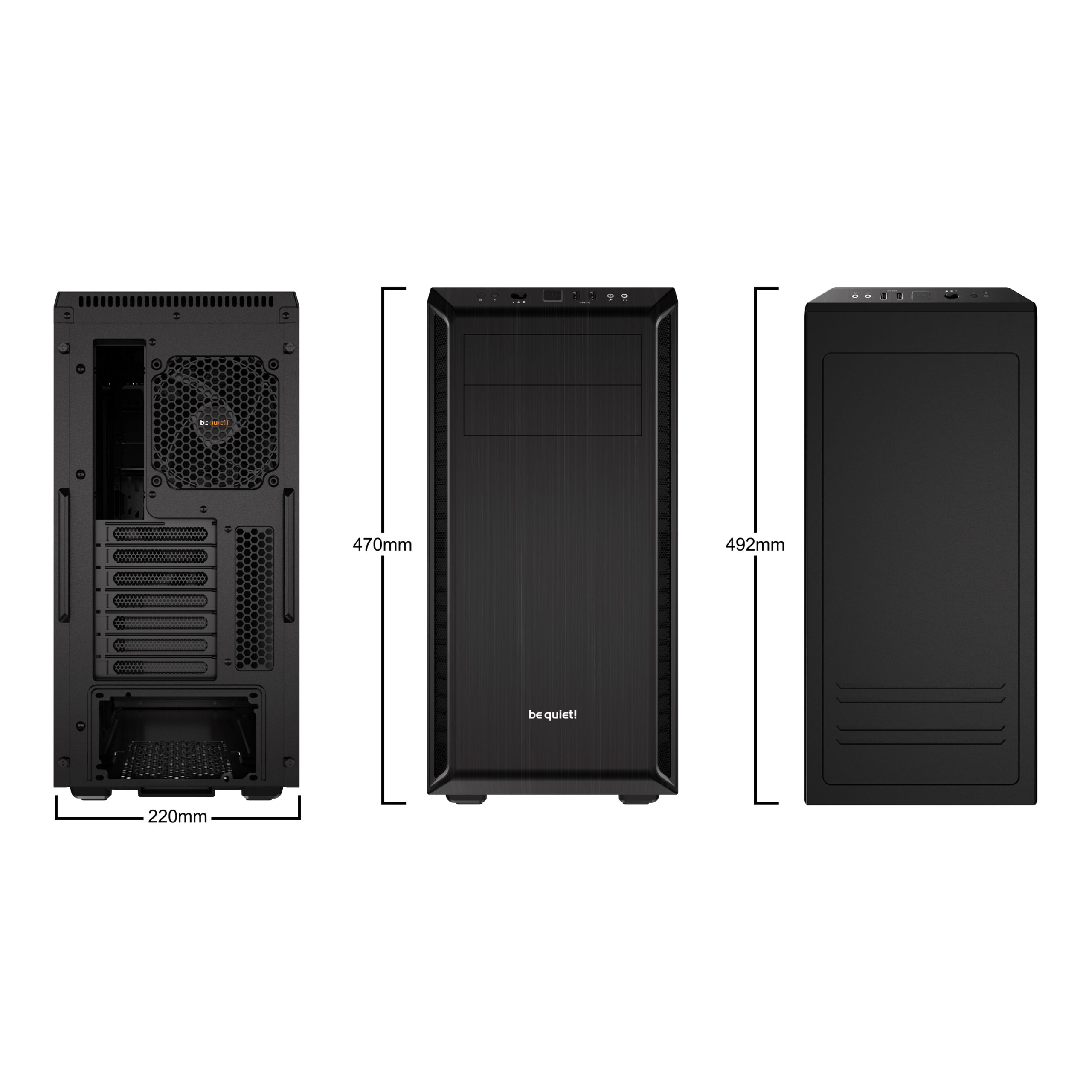

Dimensions
- Height: 470mm
- Width: 220mm
- Depth: 492mm
Interfaces
- 1 x PS/2 Keyboard/Mouse Port
- 2 x USB 2.0 Ports (2 rear)
- 6 x USB 3.2 Gen 1 Ports (2 front, 4 rear)
- 2 x USB 3.2 Gen 2 Ports (2 rear)
- 1 x USB 3.2 Type-C Gen 2×2 (rear)
- 1 x USB 3.2 Type-C Gen 2 (rear)
- 1 x RJ-45 Ethernet Port
- 3 x Audio Jacks at the rear with S/PDIF
- 2 x Audio Jacks at the front
- 4 x mini-DisplayPort
Note the display outputs from the motherboard are disabled when a graphics card is installed.
Expansion
- 3 x PCI-e x 16 Slot , 2 Free, (1 x Used for GPU)
Warranty
- 3 Year Return to Base parts and labour
- 1st 30 days collect and return at our expense
Core i9-14900KF Processor
PNY Quadro RTX A2000 12GB GPU
Fast 1TB M.2 NVMe SSD
- Be Quiet! Pure Base 600 Black Case
- Intel Core i9-14900KF 3.2GHz 24 Core CPU, 32 Thread, 6.0GHz Turbo
- Gigabyte Z790 AERO G DDR5 Motherboard
- PNY Quadro RTX A2000 12GB Professional GPU
- 32GB Corsair VENGEANCE DDR5 5200MHz CL40 (2x16GB)
- 1TB Samsung 980 PRO M.2 NVMe PCIe 4.0 SSD (7000MB/R, 5000MB/W)
- 4TB Seagate 3.5″ Ironwolf Pro HDD, 2 Years Rescue+DataRecovery on registration
- Be quiet! Pure Loop 240mm Cooler
- Contour 750W High Efficiency ATX PSU
- Built in Wi-Fi and Bluetooth
- 24x SATA Internal DVDRW
- Built in 5.1 Sound Card
- Microsoft Windows® 11 Professional
