Motherboard Bundle – R7 5800X, 32GB, 1TB, B550

SKU:

1003323

£649.00 (inc VAT)

Trustpilot

CPU AMD Ryzen 5 5700X
RAM 32GB DDR4 3200 MHz Patriot Viper Steel Memory (XMP Enabled)
STORAGE 1 TB Western Digital Blue NVMe SN570 Gen 3
MOTHERBOARD Gigabyte B550 Gaming X V2
CPU COOLER Corsair H100x Liquid Cooler

Delivery 1/2 Business Days

£649.00

SKU: 1003323 Category:
Payment Options

We offer a standard weekday delivery, or Saturday delivery to the UK mainland. Standard UK delivery is free on orders over £500. Provide a mobile phone number at checkout to get text alerts on your delivery.

See all of our payment options here: PAYMENT TYPES

Ryzen7 5800X Motherboard Bundle

CPU Pre-Fitted

RAM Pre-Fitted

XMP Enabled

Tested

Latest BIOS

12 Months Warranty

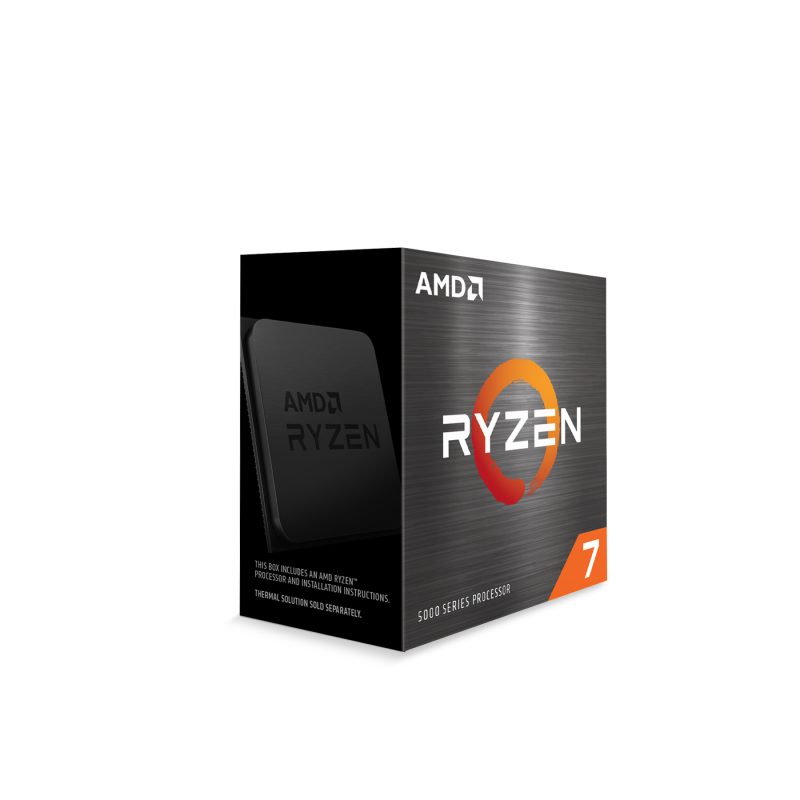

Boxed Ryzen 5000 Series 7

AMD Ryzen 7 5800X

  • Cores: 8
  • Threads: 16
  • Base Clock: 3.8GHz
  • Max. Boost Clock: 4.7GHz
  • TDP: 105W
  • Unlocked for Overclocking: Yes
2x16gb-ddr4-3200mhz-patriot-viper

32GB Patriot Viper Steel RAM

  • 32GB
  • 3200 MHz
  • 2x 16GB DDR4 DIMMS
  • Supports Up To 128GB
  • 4x DDR4 DIMM Sockets
giga-b550-gaming-x-v2

AMD B550 Gaming Motherboard with Enlarged Surface Heatsinks, GIGABYTE Gaming LAN with Bandwidth Management, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus

CPU

  • AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

Chipset

  • AMD B550

Memory

  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
    * ECC memory (ECC mode) support varies by CPU
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor:

  • 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Audio

  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • Support for S/PDIF Out

LAN

  • Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

  • 1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  • 3 x PCI Express x1 slots
    (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Storage Interface

  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
    * Actual support may vary by CPU.
  • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  • Supporting SATA and PCIe 3.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, and RAID 10

USB

Chipset:

  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 3 x USB 3.2 Gen 1 ports on the back panel

Chipset:

  • 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper

Back Panel Connectors

  • 2 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 3 x USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 1 x Q-Flash Plus button
  • 1 x RJ-45 port
  • 3 x audio jacks

I/O Controller

  • iTE® I/O Controller Chip

H/W Monitoring

  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

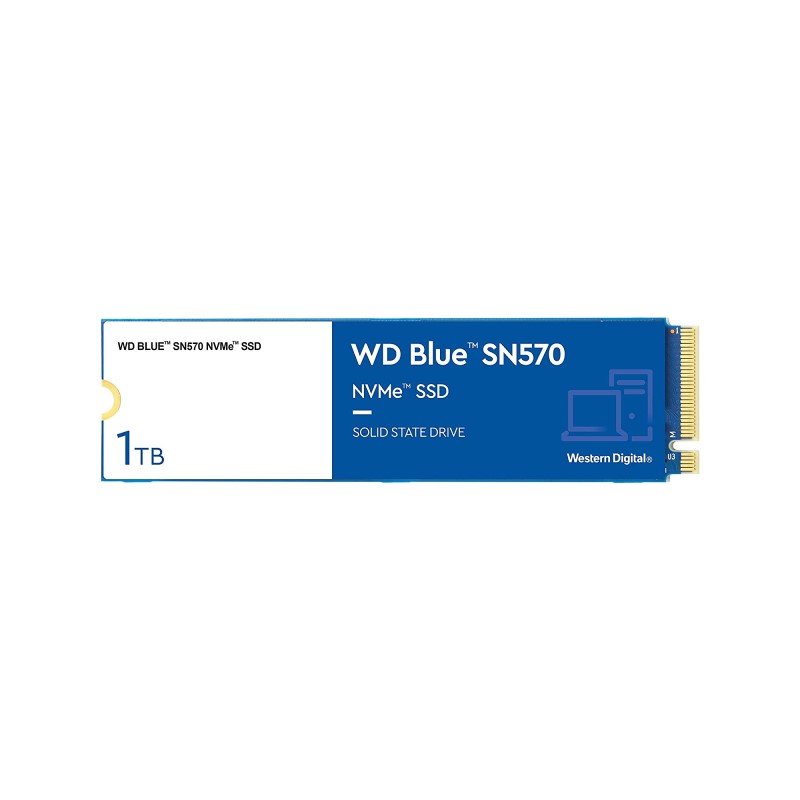

wd-blue-sn570-nvme-ssd

Western Digital Blue 1TB NVMe SN570 Gen 3 SSD

  • 1TB
  • Read: 3,500 MS/s
  • Write 3,000 MB/s
  • Part Number: WDS100T3B0C

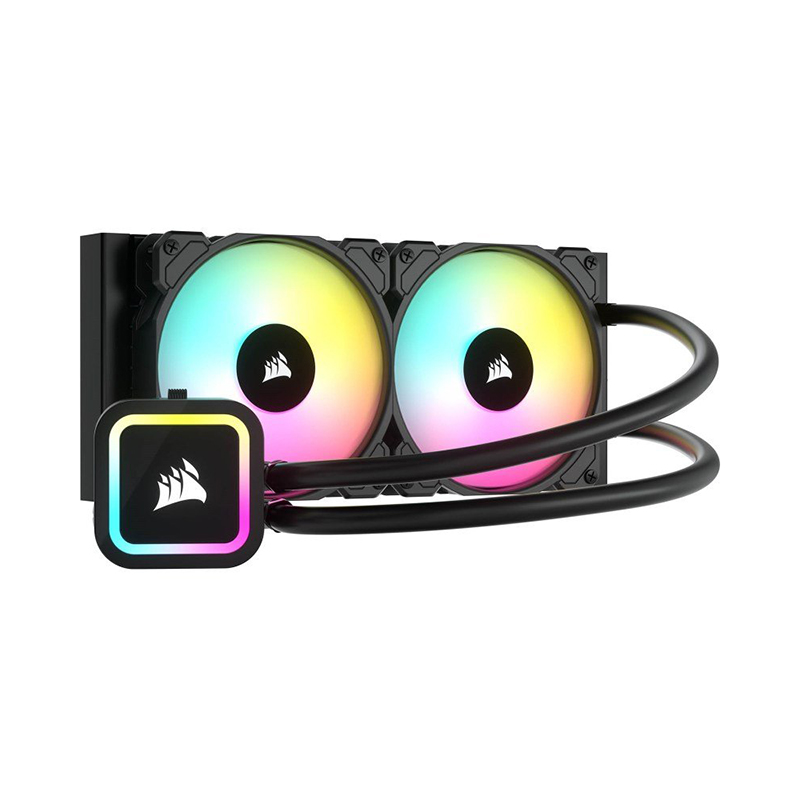

Corsair H100x Liquid CPU Cooler

Corsair Hydro Series H100x Liquid CPU Cooler

Compatability

  • AMD Socket: AM5, AM4
  • Warranty: 5 Years

Fan

  • Fan Dimensions:  120mm x 25mm
  • Fan Speed: 1700 RPM
  • Noise Level: 37 dBA

Size & Weight

  • Radiator Dimensions: 275mm x 120mm x 27mm
  • Coldplate Dimensions: 56 x 56mm
  • Tubing Length: 380mm
  • Radiator Size:  240mm
  • Weight: 0.675

Additional information

Brand

Processor Type

CPU Model

AMD Ryzen 7 5800X

CPU Cores

8 Core

CPU Threads

16 Threads

CPU Speed

3.8 GHz

CPU Boost/Turbo Speed

4.7Ghz

Motherboard Chipset

AMD B550

Motherboard DIMM Slots

4

Motherboard Total RAM Supported

128 GB

RAM

RAM Speed

3200 MHz

RAM Type

DDR4

Storage Capacity

1TB

Storage Type

M.2 NVMe SSD
