Motherboard Bundle – i7 12700K, 32GB, 1TB, Z690, Watercooler

SKU:

1003326

£899.0 (inc VAT)

Trustpilot

CPU Intel Core i7-12700K
RAM 32GB DDR4 3200 MHz Patriot Viper Steel
MOTHERBOARD Gigabyte Z690 UD DDR4 (Latest BIOS)
STORAGE Western Digital SN550 1TB NVMe SSD
CPU COOLER Corsair Hydro Series H100x Water Cooler

Delivery 1/2 Business Days

£899.0

Out of stock

Out of stock

SKU: 1003326 Category:
Payment Options

We offer a standard weekday delivery, or Saturday delivery to the UK mainland. Standard UK delivery is free on orders over £500. Provide a mobile phone number at checkout to get text alerts on your delivery.

See all of our payment options here: PAYMENT TYPES

Intel Core i7-12700K Motherboard Bundle

Intel Core i7-12700K

CPU Pre-Fitted

RAM Pre-Fitted

XMP Enabled

Tested

Latest BIOS

12 Months Warranty

Intel Core i7-12700K

Intel Core i7-12700K

  • Cores: 12
  • Threads: 20
  • Base Clock: 3.60GHz
  • Max. Boost Clock: 5.00GHz
  • TDP: 125W
  • Unlocked for Overclocking: Yes

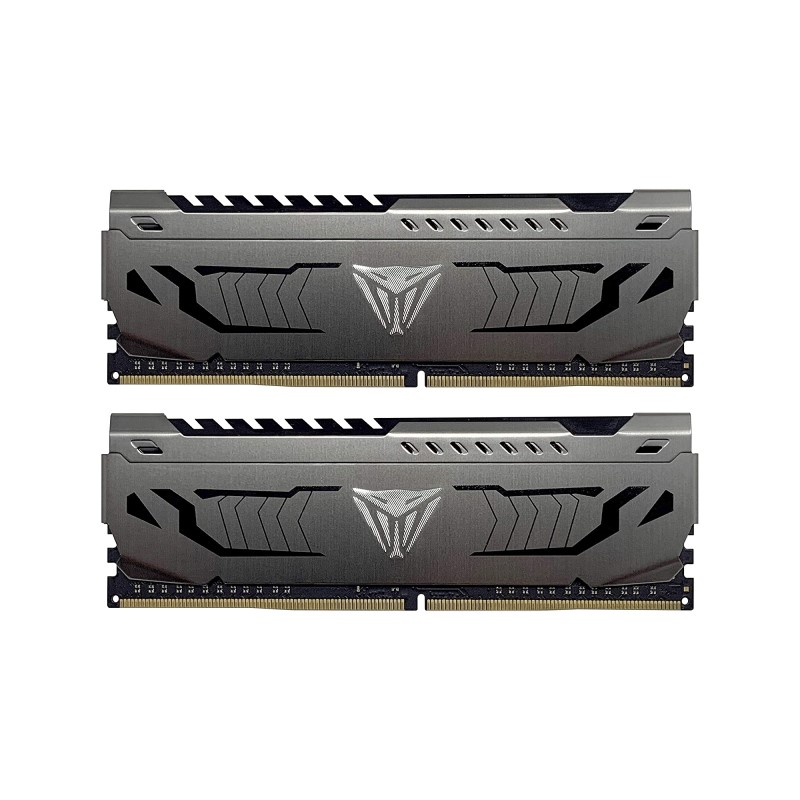

32GB DDR4 3200 MHz Patriot Viper Steel

32GB 3200 MHz Patriot Viper Steel Memory

  • 32GB
  • 3200 MHz
  • 2x 16GB DDR4 DIMMS
  • Supports Up To 128GB
  • 4x DDR4 DIMM Sockets – two free
Gigabyte Z690 UD DDR4

Intel® Z690 Motherboard with 16*+1+2 Twin Hybrid Phases Digital Power Design, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5 GbE LAN, Rear USB 3.2 Gen 2×2 Type-C®, Q-Flash Plus



CPU

  • LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

Chipset

  • Intel® Z690 Express Chipset

Memory

  • Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  • 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor:

  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
  • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3

Audio

  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
  • Support for S/PDIF Out

LAN

  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • 1 x PCI Express x16 slot, running at x1 (PCIEX1_4)
  • 2 x PCI Express x1 slots
    (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

Storage Interface

CPU:

  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  • 6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.

USB

Chipset:

  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 3 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x serial port header
  • 2 x Thunderbolt™ add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Q-Flash Plus button
  • 1 x Clear CMOS jumper
    • All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Back Panel Connectors

  • 1 x PS/2 keyboard/mouse port
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 4 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks

I/O Controller

  • iTE® I/O Controller Chip

H/W Monitoring

  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1TB NVMe SSD

1 TB Western Digital Blue NVMe SN570

1TB M.2 PCIe NVMe SSD/Solid State Drive

  • 1TB
  • READ: 2400 MB/s
  • WRITE: 1950 MB/s
  • IOPS: 410k/405K

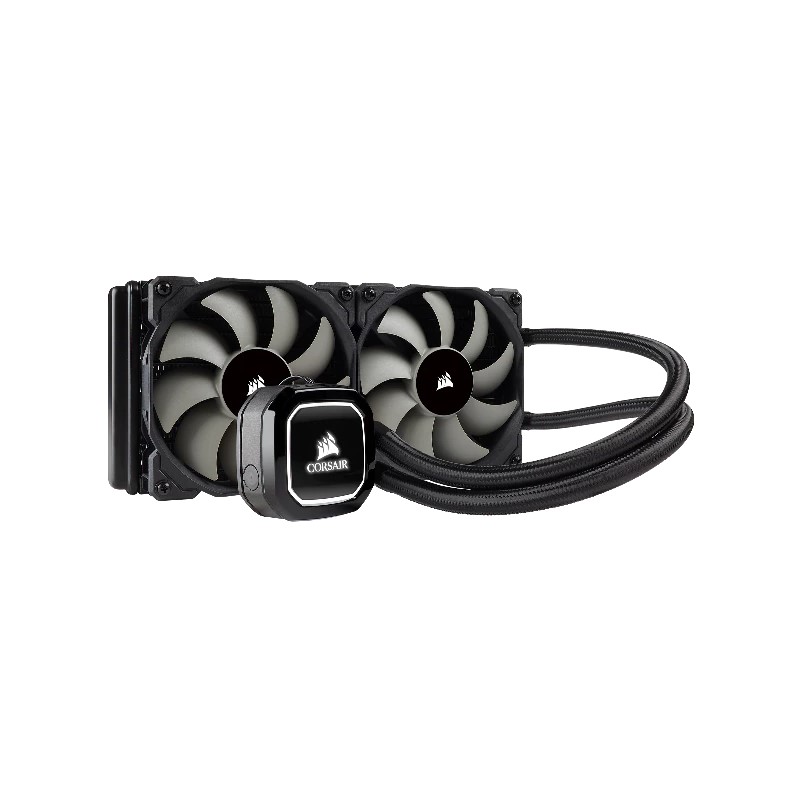

Corsair H100x Liquid CPU Cooler

Hydro Series H100x High Performance Liquid CPU Cooler

  • Cooling Warranty: Five Year
  • Cold Plate Material: Copper
  • Radiator Material: Aluminum
  • PWM: Yes
  • CORSAIR iCUE Compatibility: No
  • Tubing Length: 380mm
  • Coldplate Dimensions: 56 x 56mm
  • Tubing Material: White Sleeved Low-Permeation Rubber
  • Radiator Dimensions: 275mm x 120mm x 27mm
  • Fan Dimensions: 120mm x 25mm
  • Fan Speed: 1700 RPM
  • Weight: 0.675
  • Number of Fans: 2
  • Cooling Socket Support: Intel 1700, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2066 AMD AM5, AM4
    (*Intel LGA1700 is supported with purchase of CW-8960091 spare part.)
  • Lighting: WHITE
  • Radiator Size: 240mm
  • Fan Model: SP Series
  • Fan Control Method: PWM
  • Intel Processors Supported: Core i9, i7, i5, i3, Pentium, Celeron
  • Fan Airflow: 57.2 CFM
  • Fan Static Pressure: 2.08 mm-H2O
  • Noise Level: 37 dBA

Additional information

Brand

Processor Type

CPU Model

Intel Core i7-12700K

CPU Cores

12 Core

CPU Threads

20 Threads

CPU Speed

3.6 GHz

CPU Boost/Turbo Speed

5.0 Ghz

Motherboard Chipset

Intel Z690

Motherboard DIMM Slots

4

Motherboard Total RAM Supported

128 GB

RAM

RAM Speed

3200 MHz

RAM Type

DDR4

Storage Capacity

1TB

Storage Type

M.2 NVMe SSD
