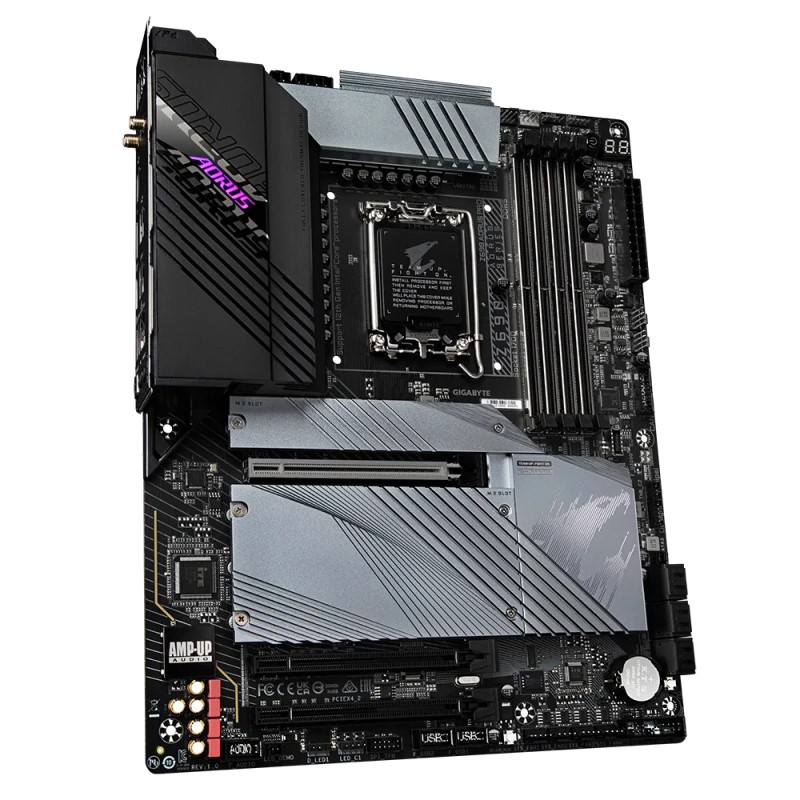

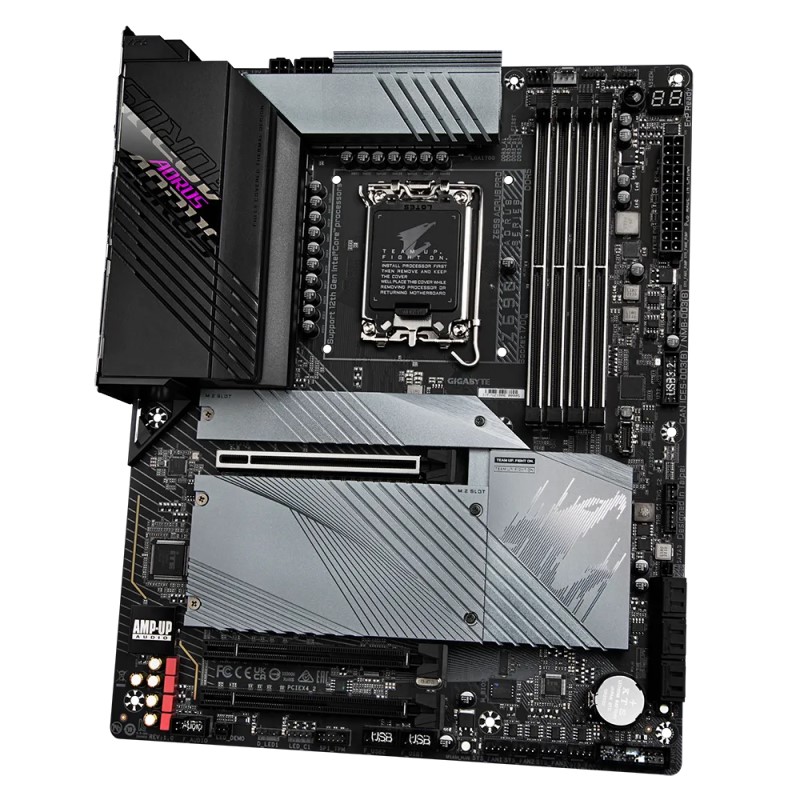

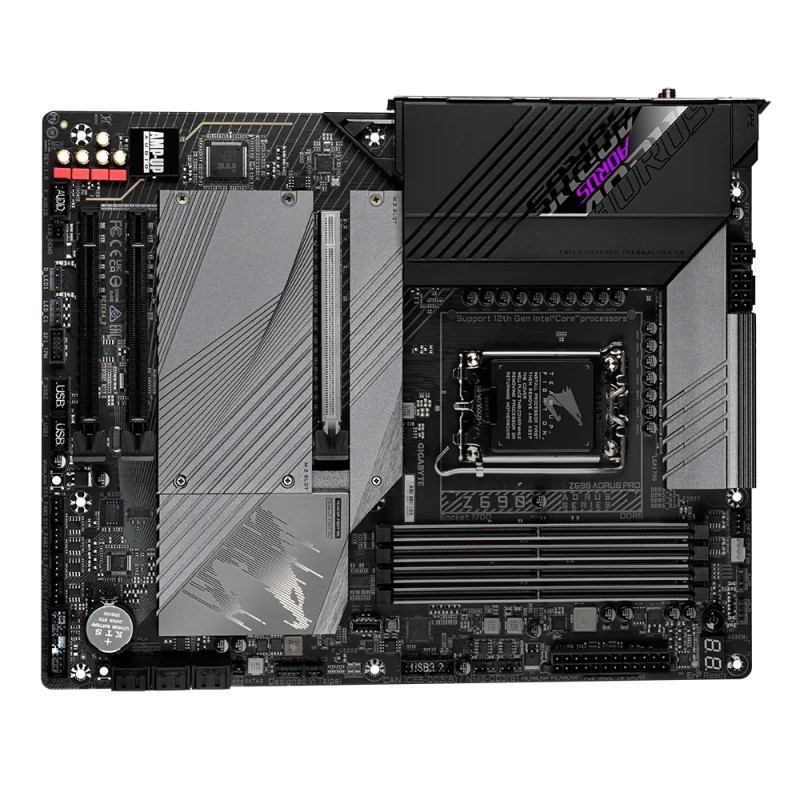

Gigabyte Z690 AORUS PRO DDR5 PCIe 5.0 ATX MB

Z690 AORUS PRO

SKU:

1002800

£300.00 (inc VAT)

Trustpilot
  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • 16+1+2 Direct Digital VRM Design with 90A Power Stage* and Tantalum Polymer Capacitor
  • DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Intel® WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors
  • Fast 2.5GbE LAN with Bandwidth Management
  • 4x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guard
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

£300.00

Out of stock

Out of stock

SKU: 1002800 Category:
Payment Options

We offer a standard weekday delivery or Saturday delivery to the UK mainland. Standard UK delivery is free on orders over £500. Provide a mobile phone number at checkout to get text alerts on your delivery.

KEY FEATURES

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • 16+1+2 Direct Digital VRM Design with 90A Power Stage* and Tantalum Polymer Capacitor
  • DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Intel® WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors
  • Fast 2.5GbE LAN with Bandwidth Management
  • 4x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guard
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

SPECIFICATIONS

  • CPU
    1. LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
    2. L3 cache varies with CPU

    * Please refer to “CPU Support List” for more information.

  • Chipset
    1. Intel® Z690 Express Chipset
  • Memory
    1. Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
  • (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® ALC4080 CODEC
    2. High Definition Audio
    3. 2-channel analog output
    4. Support for S/PDIF Out
      7.1-channel digital signals
      * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
  • LAN
    1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module

    WIFI Module

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
    2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
      (The PCIEX4 slots conform to PCI Express 3.0 standard.)
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)
    2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB)
    3. 6 x SATA 6Gb/s connectors

    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

    Intel® Optane™ Memory Ready
    * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.

  • USB

    Chipset:

    1. 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
    2. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    Chipset+2 USB 3.2 Gen 1 Hubs:

    1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

    Chipset+2 USB 2.0 Hub:

    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 4 x system fan headers
    7. 2 x system fan/water cooling pump headers
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 4 x M.2 Socket 3 connectors
    11. 6 x SATA 6Gb/s connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x noise detection header
    18. 2 x Thunderbolt™ add-in card connectors
    19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    20. 1 x power button
    21. 1 x reset button
    22. 1 x Q-Flash Plus button
    23. 2 x temperature sensor headers
    24. 1 x reset jumper
    25. 1 x Clear CMOS jumper

    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

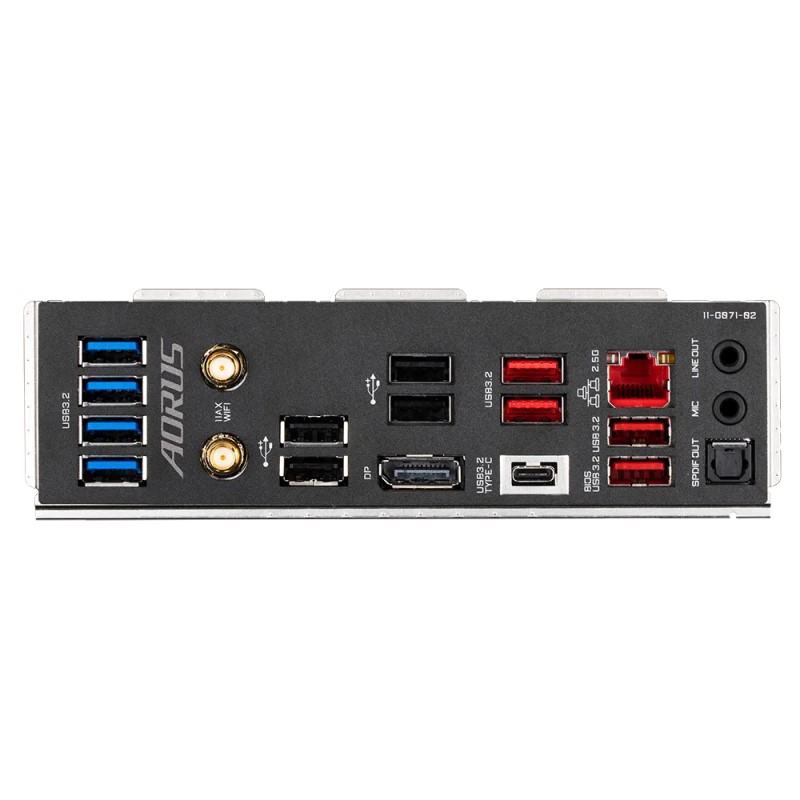

  • Back Panel Connectors
    1. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
    2. 4 x USB 3.2 Gen 2 Type-A ports (red)
    3. 4 x USB 3.2 Gen 1 ports
    4. 4 x USB 2.0/1.1 ports
    5. 2 x SMA antenna connectors (2T2R)
    6. 1 x DisplayPort
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 2 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    7. Noise detection
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
