2TB Gigabyte AORUS PCIe4 NVMe M.2 SSD (5000MB/R, 4400MB/W)

2TB Gigabyte AORUS PCIe4 SSD

SKU:

1001825

£192.00 (inc VAT)

Trustpilot
  • Form Factor: M.2 2280
  • Interface: PCI-Express 4.0×4, NVMe 1.3
  • Total Capacity: 2000GB*
  • Sequential Read Speed : up to 5000 MB/s**
  • Sequential Write speed : up to 4400 MB/s**
  • Wear Leveling, Over-Provision technologies
  • TRIM & S.M.A.R.T supported
  • Fully Body Copper Heat Spreader
  • Warranty: Limited 5-years

£192.00

Out of stock

Out of stock

SKU: 1001825 Category:
Payment Options

World First PCIe 4.0×4 Controller

The World First PCIe 4.0×4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0×4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.

  • PCIe 4.0×4, NVMe 1.3 Interface
  • DDR4 DRAM cache
  • 8 CH with 32 CEs
  • Phison 4th Gen LDPC & RAID ECC
  • Support Pyrite
  • Heat spreader for controller
NAND Flash Selected for High Quality and Performance
TOSHIBA BiCS4 96 Layers 3D TLC (800MT/s)
Toshiba BiCS4 NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS NVMe Gen 4 SSD far exceeds that of PCIe 3.0×4 devices for superior storage performance.
AORUS NVMe Gen4 SSD
General SSD
Transfer Rate
800 MT/s
400~533 MT/s
Xtreme Storage Performance

With the new PCIe 4.0 controller, AORUS NVMe Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 4,400MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.

Sequential Read Speed
AORUS NVMe Gen4 SSD
Normal PCIe 3.0 SSD
Performance (MB/s)
5000
3500



Sequential Write Speed
AORUS NVMe Gen4 SSD
Normal PCIe 3.0 SSD
Performance (MB/s)
4400
3300

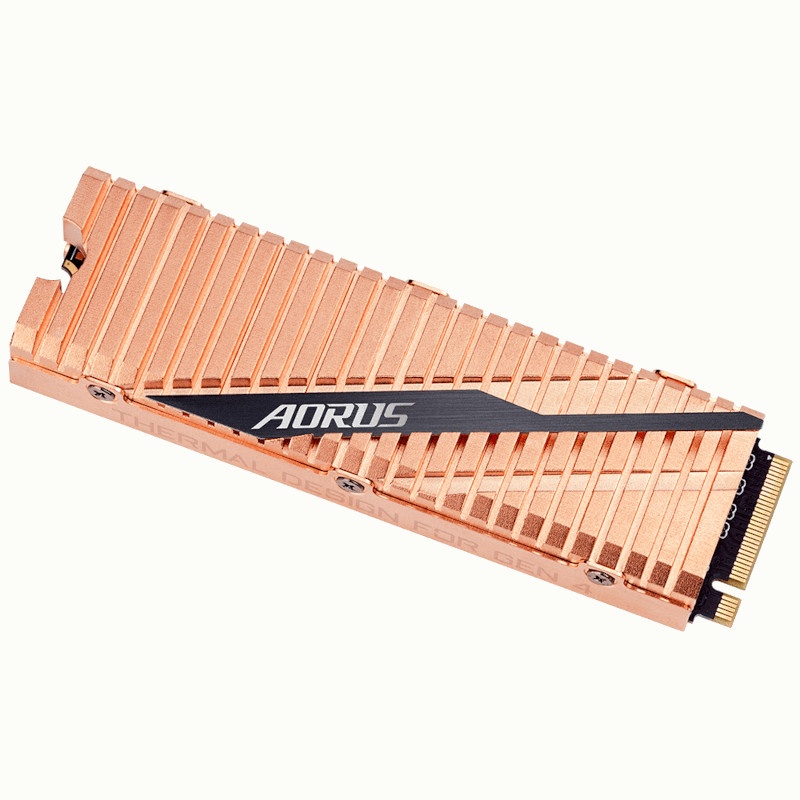

Full Body Copper Thermal Solution for Outstanding PCIe 4.0 SSD Performance
The Full Body Copper Heatsink takes into account the heat transfer from key components on both the front and back of the device, the controller and NAND Flash. Full copper heatsinks have 69% higher heat transfer capacity compared to aluminum heatsinks giving AORUS NVMe Gen4 SSD the best heat dissipation for read/write performance.
Thermal Conductivity
Copper(CU)
Aluminum(AL)
401W/mK
237W/mK



Efficient Copper Heat Spreader Design
Compared with a plated M.2 heat spreader, new efficient copper heat spreaders with 27 fins add more surface area which improve thermal transfer from heating sources to obtain thermal balance sooner. Moreover, Optimized fin array design does great heat exchange with any direction of air flow. Both unique design make sure key components of PCIe 4.0 SSD to keep suitable working temperature under ultra high transfer rate.
Why is keeping an SSDs at lower temperatures so important?
  • Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher.
  • With Full Body Copper Heat Spreaders, the AORUS NVMe Gen 4 SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can deliver extreme performance for longer periods.
Fully Body Copper heat spreader
Plated M.2 heat spreader
△T ℃ (lower is better)
*The test result is based on internal testing for reference onl, actual performance may vary underdifferent circumstances.
16% Improve.
SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.
SSD tool box function may vary by model
Quality Guaranteed
Extreme Performance
Comes From High Standard Test
Composition
Dimension
Capacity* Model Sequential Read MB/s** Sequential Write MB/s** Random Read IOPS** Random Write IOPS**
500GB AORUS NVMe Gen4 SSD 500GB

( GP-ASM2NE6500GTTD )
5000 MB/s 2500 MB/s 400k 550k
1000GB AORUS NVMe Gen4 SSD 1TB

( GP-ASM2NE6100TTTD )
5000 MB/s 4400 MB/s 750k 700k
2000GB AORUS NVMe Gen4 SSD 2TB

( GP-ASM2NE6200TTTD )
5000 MB/s 4400 MB/s 750k 700k
* Note: 1GB = 1 billion bytes. Real useable capacity may vary by models.
** Speeds based on internal testing. Real performance may vary by models.

Additional information

Brand

Storage Type

PCIe 4.0 NVMe SSD

Storage Capacity

2TB
