Easy Worship PC v2

High performance for your church sofware

Designed for use with the Easy Worship software suite in a multi screen environment.  This system can support 4 high performance screens via the GPU and can also be configured to support a further 3 screens via the on board graphics from the CPU if required.



Now updated to a newer version 2 with faster processor and memory and a higher performance motherboard with better connectivity and support for up to 7 screens.

Specifications:

Processor

• Intel Core i7-12700 2.1Ghz 12 Core CPU
• Max Turbo Frequency: 4.9Ghz
• Cache: 25MB
• Be Quiet! Pure Rock Slim 2 Air Cooler Installed

Memory

• 16GB DDR4 3200Mhz RAM
• Dual Channel – 2 x 8GB
• Supports up to 128GB
• 4 x DIMM sockets (2 Used)

Hard Drive

• 1TB NVMe M.2 SSD
• 2 x M.2 (1 Used)
• 4 SATA Ports, 3 free (1 Used for DVD-RW)

Optical Drive

• DVD Re-Writer, SATA, 24x
• 1 Optical Bay, Used

Software

• Windows 11 Home 64-bit
• Clean install, no additional software

Chipset

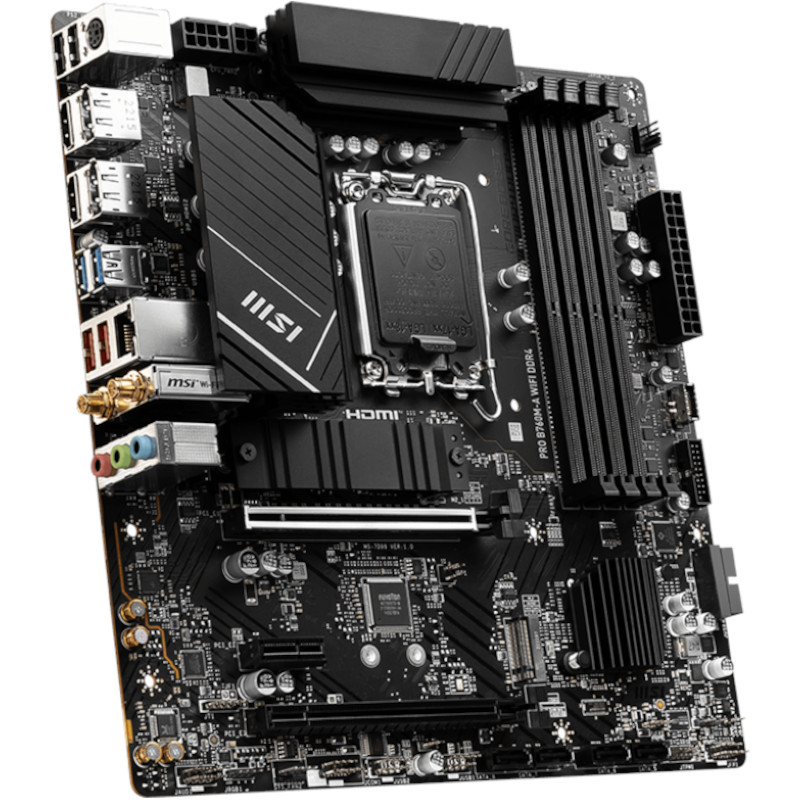

• Intel B760 Chipset

Display Outputs

• 3 x DisplayPort 1.4a (7680×4320@60Hz)
• 1 x HDMI 2.1 (7680×4320@60Hz)
• Supports up to 4 monitors at once

Graphics

• NVidia GeForce RTX 4060 Ti 8GB GPU
• Integrated Intel UHD770 (optional to have enabled to support an additional 3 monitors if required)

Audio

• High Definition Audio, 5.1 or 7.1 channel
• Audio provided by Realtek Audio Chip on the motherboard

Input Devices

• No Keyboard or Mouse Included

Wired Networking

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Networking

• Intel® Wi-Fi 6 AX200 Wifi 6 adapter built in
• Bluetooth 5.2

Power Supply

• 650 watts

Dimensions

• Height: 470mm
• Width: 220mm
• Depth: 492mm

Interfaces

• 1 x PS/2 Keyboard / Mouse Port
• 2 x USB 2.0 Port (2 rear)
• 5 x USB 3.2 Port (2 front, 3 rear)
• 1 x USB Type-C^® port, with USB 3.2 Gen 2 (rear)
• 1 x RJ-45 Ethernet Port
• 3 x Audio Jacks at the rear
• 2 x Audio Jacks at the front

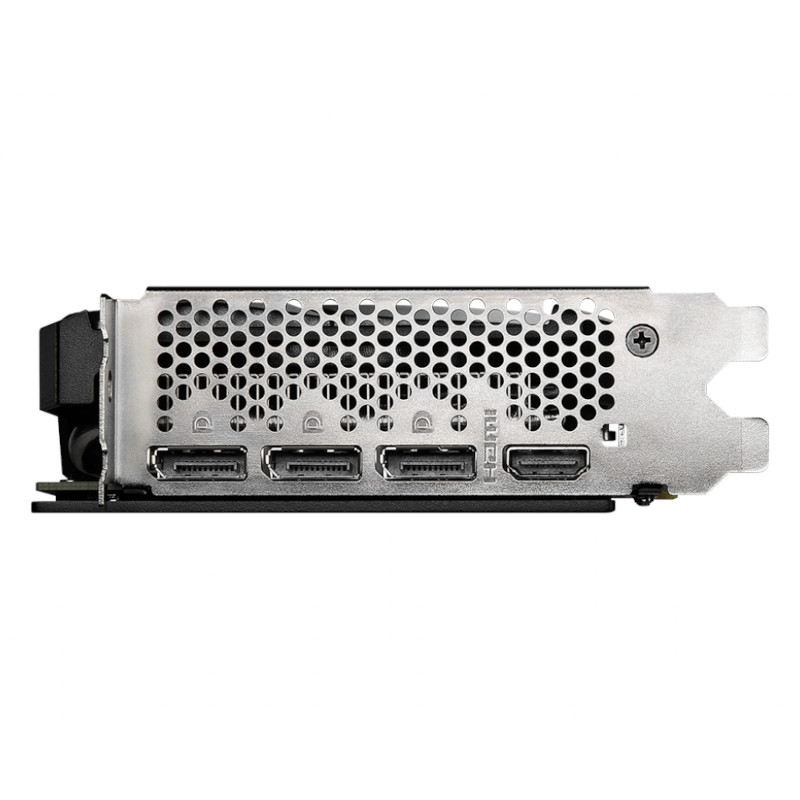

• 3 x DisplayPort 1.4 on GPU
• 1 x HDMI 2.1 on GPU
• 2 x DisplayPort 1.2 on Motherboard (optional)
• 1 x HDMI 2.1 on Motherboard (optional)

Note the display outputs from the motherboard are disabled when a graphics card is installed but can optionally be re-enabled to offer a total of 7 supported displays at once.



Expansion

• 1 x PCI-e x 16 Slot (1 Used for GPU)
• 2 x PCI-e x 1 Slots (Free)

Case

• Be Quiet! Pure Base 600 Black Case
• Space for additional 2 x 3.5″ HDD and 2 x 2.5″ SSD

Warranty

• 3 Year Return to Base parts and labour
• 1st 30 days collect and return at our expense
