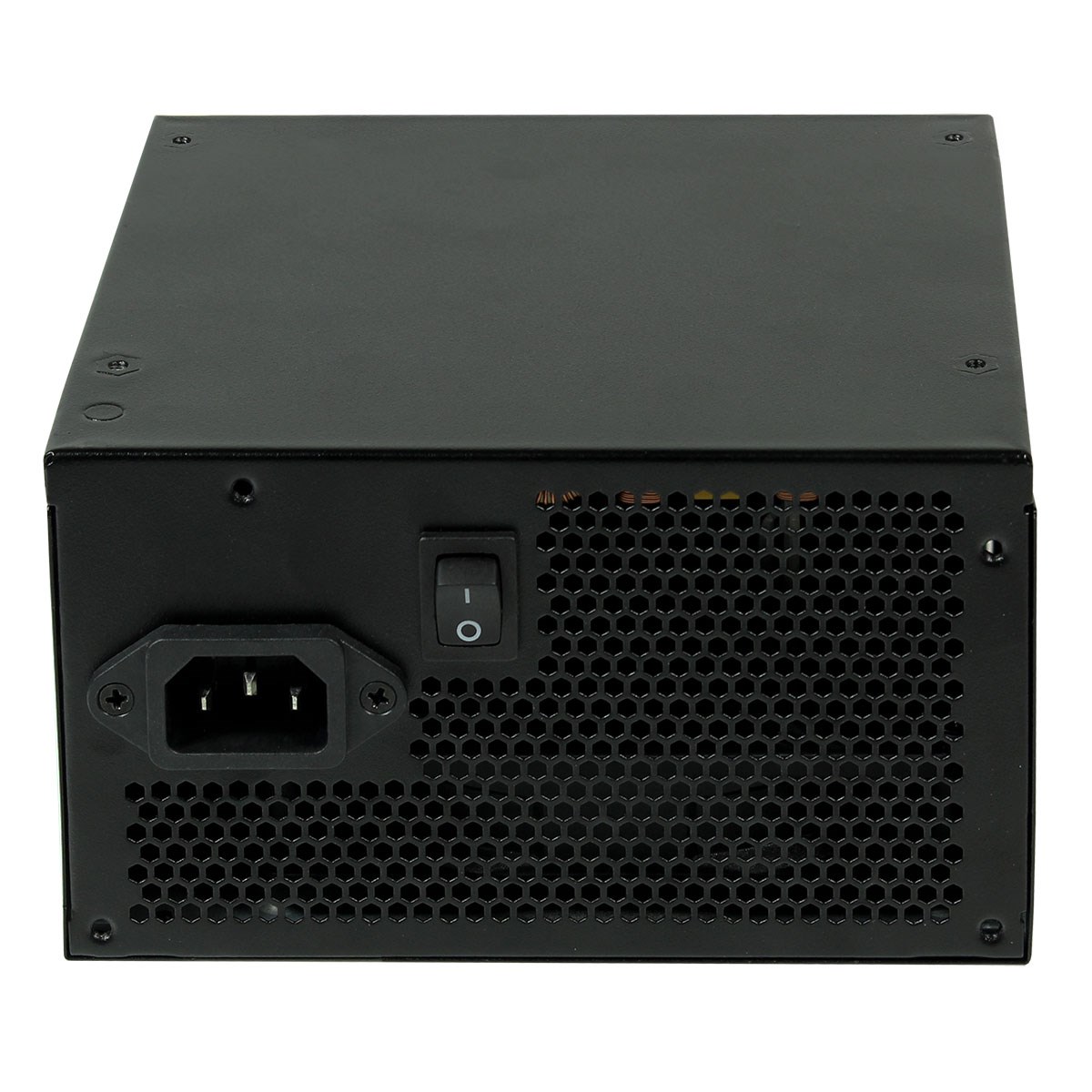

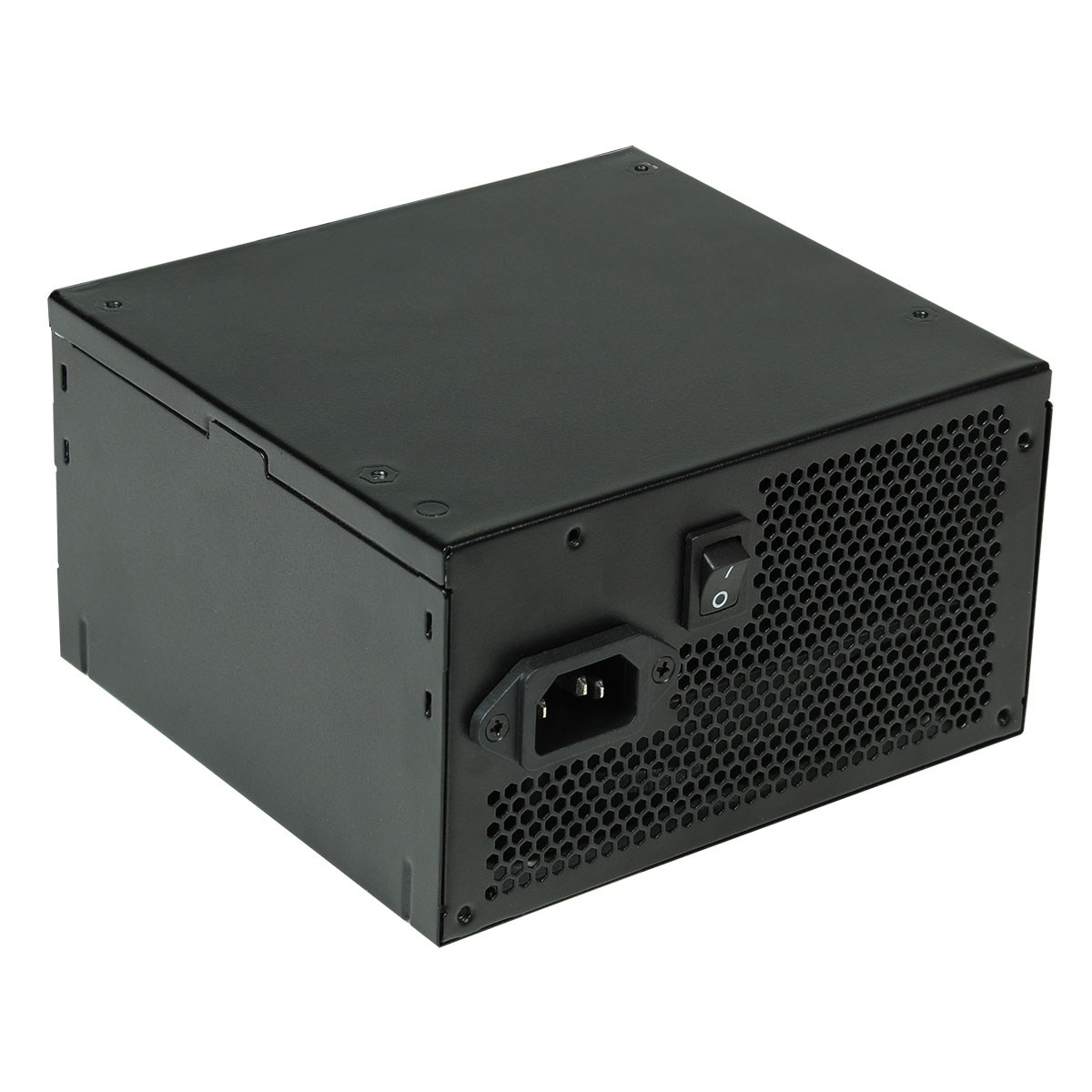

The Contour 500W power supply is built to provide a stable and reliable power output for regular PC systems with demanding power requirements. When designing this PSU, thought has been given to the cable layout which includes a large number of connectors and is suitable for use with high performance graphics cards requiring two 8pin power inputs.
This PSU is based on the CWT GPT500 which has a high efficiency design and achieves a Bronze rating. At 50% power load, the PSU can have an efficiency of over 85% which helps to reduce heat and noise as well as keep running costs low.
This power supply also has been built with full safety features of for over voltage protection, over power protection and short circuit protection, meeting the requirements of TUV, CB, CE and CCC safety standards.
1 x CPU (EPS ATX12V) 8-pin (4+4) – 750mm
2 x PCI-E (6+2 pin) – 1 cables 500 + 200mm
2 x SATA + 1 x Peripheral – 500 + 200 + 150 (mm)
1 x SATA + 1 x Peripheral – 450 + 200 (mm)
1 x Floppy – on above cable with extra 150mm
2 x SATA – 450 + 150 (mm)
+3.3v – 18A
+12V – 38A
-12V – 0.3A
+5Vsb – 2.5A
110W max combined 3.3V & 5V Power
Short Circuit or Short to Ground Protection
Over Power Protection @ 120%-150% of peak load
Over Temperature Protection @ 60 C at full load
40°C rating for continuous full load delivery
Low Noise
Compact ATX 140mm length
