Be Quiet! 1500W Dark Power Pro 12 PSU 80 Plus Titanium

1500W Be quiet Dark Power

SKU:

1002425

£379.00 (inc VAT)

Trustpilot
  • 1500W Power Output
  • Fully Modular Design
  • Low Noise Fan Design
  • 80Plus Titanium

£379.00

Out of stock

Out of stock

SKU: 1002425 Category:
Payment Options

Delivery via DPD in 1 to 2 business days from order. Delivery is free on orders over £500

Consumer Credit is available through Omni Capital Retail Finance; add items to your order and see the monthly cost at the bottom of the basket. Checkout your order with Omni Capital Retail Finance to go through the simple application process or checkout via Paypal and choose to split the payments into 3.

See the full specification detail on the Be Quiet Website.
The website will be displayed in another window.



Product Description



The be quiet! Dark Power Pro 12 1500W offers 80 PLUS® Titanium efficiency and world class performance due to fully digital control and frameless fan concept. The Dark Power Pro 12 1500W is certified with 80 PLUS Titanium and an energy efficiency rating of up to 94.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts. The fully digital control (PFC, LLC, SR/12V) results in higher efficiency, better regulation and lower ripple noise. This guarantees an incomparably stable operation. Due to the digital concept the Dark Power Pro 12 can reach a great efficiency over the complete power range, even at low load.



The be quiet! Silent Wings fan mounted on a tripod enables maximum airflow and a virtually inaudible operation at ordinary loads. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor for less vibration, super-long life and minimal power consumption. The split fan inlet of the Dark Power Pro 12 1500W is a specially-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.

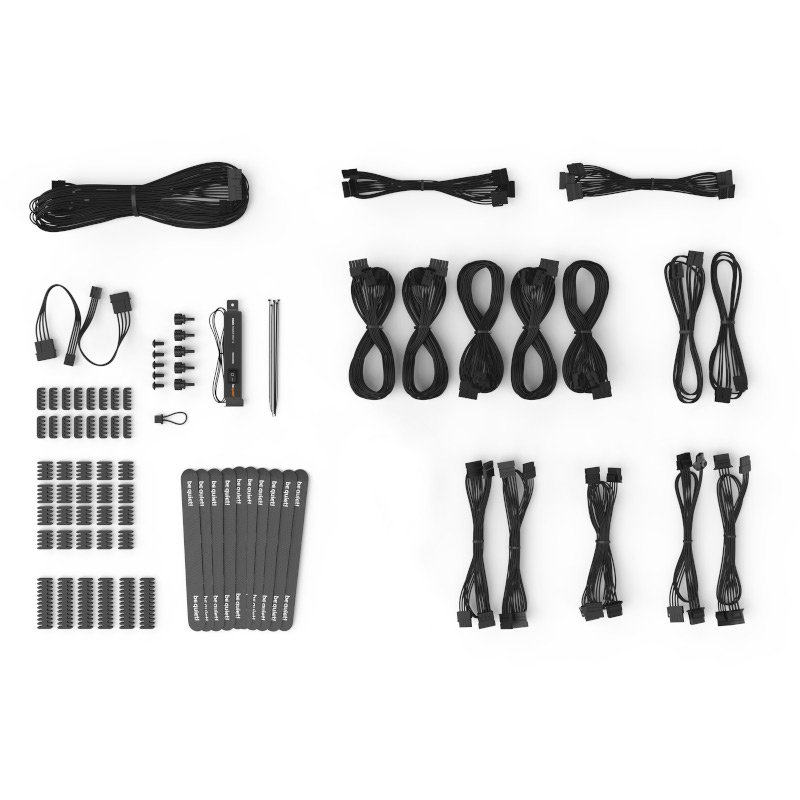

Dark Power Pro 12 1500W is particularly suitable for overclocking, thanks to its strong and stable 12V rails. The overclocking key empowers you with full control for overclocking by manually switching between the default six 12V-rail mode and the alternative massive single-rail operation. The maximum utility afforded by modular individually sleeved cables of up to 120cm simplifies component installation and reduces annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases. Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced digital full bridge, LLC and Synchronous Rectifier (SR) technology it provides unmatched signal stability and unbeatable power efficiency. It is also equipped with DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions. This ensures reliable operation for the next generation of processors and graphics cards. Only the best components are used in Dark Power Pro 12 1500W. That is why we have built exclusively high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability and a long operating life.



Series
Dark Power Pro 12
Compatibility
ATX 12V 2.51 & EPS ATX12V 2.92
Wattage
1500W continuous total output, 1600w peak
Modular
Fully Modular
Connectors
1 x ATX 24-pin – 600mm

2 x CPU (EPS ATX12V) 8-pin (4+4)

5 x Dual PCI-E (2 x 6+2 pin)

16 x SATA

8 x 4pin Molex

2 x FDD
Output
+5v – 25A

+3.3v – 25A

+12V – 125A (Can be split into 6 seperate 12v rails)

-12V – 0.5A

+5Vsb – 3.5A

150W max combined 3.3V & 5V Power
AC Input
100 – 240VAC
PFC
Active PFC
Fan Type
135mm SilentWings fan
80+ Certification
Titanium
Efficiency
94.7% @ 20% load, 94.9% @ 50% load, 92.8% @ 100% load
MTBF
300,000 hours
Protection
Over Voltage Protection
Short Circuit or Short to Ground Protection
Over Power Protection @ 130%-160% of peak load
Over Temperature Protection @ 140 C at full load
Features
Fully shielded black low profile cables
40°C rating for continuous full load delivery
Low Noise
Large ATX 200mm length
Dimensions
150 (W) x 200 (L) x 86 (H) mm
Weight
2.44 kg without cables

Additional information

Power SupplyPower Supply: 1500W
General SpecificationBrand:
