AMD Ryzen™ Threadripper™ Pro 5965WX, Asus PRO WS WRX80E-SAGE WIFI Motherboard Bundle

SKU:

1004485

£2,820.00 (inc VAT)

Trustpilot

CPU AMD Ryzen™ Threadripper™ Pro 5965WX
MOTHERBOARD Asus PRO WS WRX80E-SAGE WIFI (Latest BIOS)

Delivery 1/2 Business Days

£2,820.00

1 in stock

1 in stock

SKU: 1004485 Category:
Payment Options

We offer a standard weekday delivery, or Saturday delivery to the UK mainland. Standard UK delivery is £9.95. Provide a mobile phone number at checkout to get text alerts on your delivery.

See all of our payment options here: PAYMENT TYPES

AMD Ryzen™ Threadripper™ Pro 5965WX, Asus PRO WS WRX80E-SAGE WIFI Motherboard Bundle

CPU Pre-Fitted

Latest BIOS

12 Months Warranty

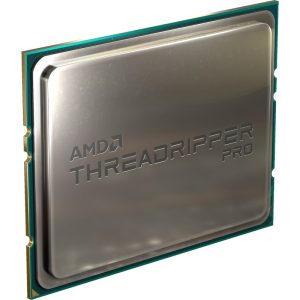

AMD Threadripper Pro 5965WX vertical angled

AMD Ryzen™ Threadripper™ Pro 5965WX

  • Cores: 24
  • Threads: 48
  • Base Clock: 3.80GHz
  • Max. Boost Clock: 4.50GHz
  • TDP: 280W
  • Unlocked for Overclocking: Yes
asus-pro-ws-wrx80e-sage-se-1

Asus PRO WS WRX80E-SAGE WIFI Motherboard Bundle



CPU

  • AMD Socket sWRX8 for AMD Ryzen™ Threadripper™ PRO Series Processors

Chipset

  • AMD WRX80 Chipset

Memory

  • 8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, 3DS R-DIMM and LR-DIMM Memory*
    8 Channel Memory Architecture
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Audio

  • Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC
    – Impedance sense for front and rear headphone outputs
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    – Supports up to 32-Bit/384 kHz playback

LAN

  • 1 x Intel® X550-AT2 dual 10Gb Ethernet

Expansion Slots

  • 7 x PCIe 4.0/3.0 x16 slot(s)*
    * Support PCIe bandwidth bifurcation for RAID on CPU function.

Storage Interface

  • Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports
    AMD Ryzen™ Threadripper™ PRO Series Processors

    M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
    U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*
    AMD WRX80 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
    U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*
    4 x SATA 6Gb/s ports
    ASMedia ASM1061 Controller
    4 x SATA 6Gb/s portsSupports NVMe RAID configurations via M.2 storages
    *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately.

USB

  • Rear USB (Total 10 ports)
    1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
    9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)Front USB (Total 7 ports)
    1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®)
    1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Internal I/O Connectors

  • Fan and Cooling related
    1 x 4-pin CPU Fan header(s)
    1 x 4-pin CPU OPT Fan header(s)
    6 x 4-pin Chassis Fan header(s)
    1 x VRM heatsink Fan header
    1 x Chipset Fan header
    Power related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V Power connector
    2 x 6-pin PCIe Graphics Card connector
    1 x 8-pin PCIe Power connector
    Storage related
    3 x M.2 slots (Key M)
    8 x SATA 6Gb/s ports
    2 x U.2 slots
    USB
    1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
    1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
    BMC Related
    1 x BMC switch
    1 x IPMI switch
    1 x Messange LED header
    1 x Micro SD card socket
    2 x LAN LED header(s)
    1 x Location LED header
    1 x Location button header
    1 x PSU_SMB header
    1 x SMART_PSU switch
    1 x VGA switch
    1 x VGA header
    1 x VPP_I2C header
    Miscellaneous
    1 x COM Port header
    1 x FlexKey button
    1 x Front Panel Audio header (AAFP)
    1 x SPI TPM header (14-1pin)
    1 x Start button
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x RTC Battery header
    1 x Thermal Sensor header

Back Panel Connectors

  • 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
    9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®)
    1 x Wi-Fi Module
    2 x Intel® X550-AT2 dual 10Gb Ethernet ports
    5 x Audio jacks
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack™  button
    1 x Clear CMOS button

BIOS

  • 256 Mb Flash ROM, UEFI AMI BIOS

Additional information

Weight 5 kg
CPU Model

Threadripper Pro 5965WX

CPU Cores

24 Core

Motherboard Chipset

AMD WRX80

Motherboard DIMM Slots

8

Motherboard Total RAM Supported

1TB
